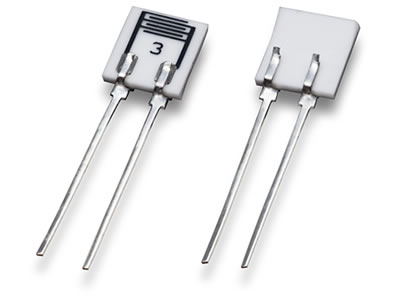

CL-M53R   Small structure humidity sensor
The SHINYEI HUMENT Type HPR-MQ is a humidity device formed by distributing a humidity sensitive macro-molecule onto an electrode substrate. The resistance of the device varies exponentially with variation on Relative Humidity. CL-M53R sensor is Pb (lead) free sensor and environmentally safe.

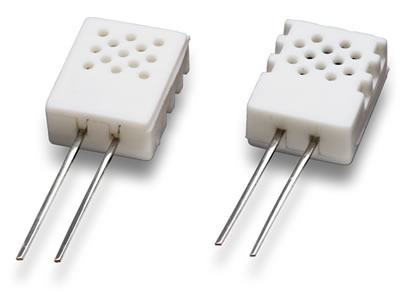

C15-M53R   Small structure humidity sensor with case
The SHINYEI HUMENT Type HPR-MQ is a humidity device formed by distributing a humidity sensitive macro-molecule onto an electrode substrate. The resistance of the device varies exponentially with variation on Relative Humidity. C15-M53R sensor is Pb (lead) free sensor and environmentally safe.

RHI series    Small humidity detection unit
SHINYEI RHI series module consists of a reliable and proven humidity sensor and a custom IC designed exclusively for the sensor, which achieved easy operation, high accuracy and cost-effectiveness.

RHU-C01    Small humidity detection unit
SHINYEI RHU-C01 is equipped with capacitive humidity sensor which installed the humidity sensor and the drive circuit. It is a product that achieved humidity detection by wide range, the miniaturization, and lowering the cost.

RHU-450    Humidity Module for Automotive Application
The RHU-450 humidity module sensor makes it possible to use for automotive application. This sensor module was developed easier mounting in and has high reliability and noise resistance.

1. 1 Wide humidity operating range
2. 2 Outstanding repeatability
3. 3 Long-term stability
4. 4 Low hysteresis
5. 5 Small and light-weight
6. 6 Pb free – good for environment

AC5.0V (max)

0.2W (max)

0~60°C

20~95%rh

500Hz~2kHz

±5%rh (at 25°C 60%rh,1kHz 1VAC)

1. ● Air-conditioner, Humidifier, Dehumidifier
2. ● Humidity Controller, Humidity Transmitter
3. ● Hygrometer, Hygro-recorder
4. ● Copying machine
5. ● Clock, Weather-station
6. ● IAQ Monitor

1. 1 Wide humidity operating range
2. 2 Outstanding repeatability
3. 3 Long-term stability
4. 4 Low hysteresis
5. 5 Small and light-weight
6. 6 Pb free – good for environment

AC5.0V (max)

0.2W (max)

0~60°C

20~95%rh

500Hz~2kHz

±5%rh (at 25°C 60%rh, 1kHz 1VAC)

1. ● Air-conditioner, Humidifier, Dehumidifier
2. ● Humidity Controller, Humidity Transmitter
3. ● Hygrometer, Hygro-recorder
4. ● Copying machine
5. ● Clock, Weather-station
6. ● IAQ Monitor

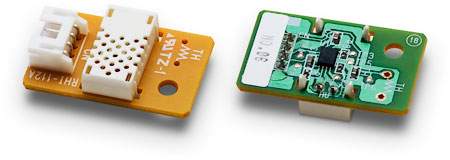

RHI-112A

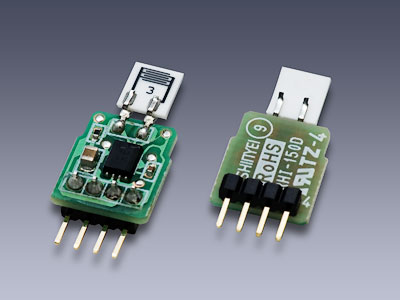

RHI-150D

SHINYEI RHI series module consists of a reliable and proven humidity sensor and a custom IC designed exclusively for the sensor, which achieved easy operation, high accuracy and cost-effectiveness.

1. 1 High Accuracy: ±3%rh (at 25 °C 50%rh)
2. 2 Input Voltage: 3.15～5.5V
3. 3 Low Voltage dependency (include regulator in IC)
4. 4 Linear Output Voltage: 0-3V（at 90%rh：3V）
5. 5 Low temperature dependency
6. 6 Analog or Digital output（I2C）
7. 7 Wide humidity range
8. 8 Low power consumption（1/4 of the conventional products ）

3.15~5.5Vdc

1mA or less

0~60°C

10~95%rh

Analog:0~3.3Vdc
Digital:I2C
*Linear output against 0~100%rh.

±3%rh (at 25°C 50%rh)

Analog:Thermistor
Digital:IC Sensor

1. ● Copying Machine, Printer
2. ● Air –conditioner, Humidifier, Dehumidifier
3. ● HVAC equipment

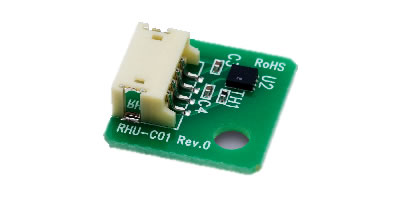

RHU-C01

SHINYEI RHU-C01 is equipped with capacitive humidity sensor which installed the humidity sensor and the drive circuit. It is a product that achieved humidity detection by wide range, the miniaturization, and lowering the cost.

　　
1. 1 High Accuracy
2. 2 Wide humidity range (0-100%rh)
3. 3 Linear Output Voltage
4. 4 Low temperature dependence
5. 5 Small and light-weight
6. 6 Low power consumption

3.3Vdc  * ratiometric voltage output

TYP 0.5mA

-20 ~ 80°C

0 ~ 100%rh

0.156 ~ 3.256V（Vin=3.3V）

±5%rh (at 25°C 50%rh)

Thermistor

1. ● Copying Machine, Printer
2. ● Air –conditioner, Humidifier, Dehumidifier
3. ● HVAC equipments

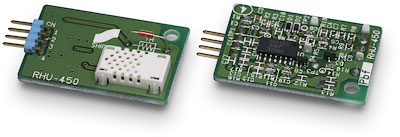

The RHU-450 humidity module sensor makes it possible to use for automotive application. This sensor module was developed easier mounting in and has high reliability and noise resistance.

1. 1 Long-term stability
2. 2 Outstanding noise resistance for automobile
3. 3 Low temperature dependence
4. 4 Low hysteresis
5. 5 Outstanding repeatability
6. 6 Wide humidity operating range

DC5.0V±5%

5mA or less (Average 2mA)

-30~80°C

10~95%rh

0.5~3.3V
　

±5%rh (at 25°C 60%rh)

Analog:Thermistor

1. ● Car, Air-contitioner
2. ● Industrial instruments
