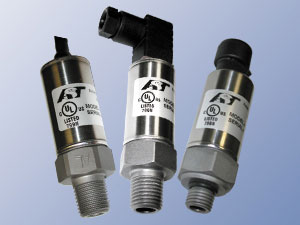

AST4000 - 这
OEM压力传感器可以构造为一毫伏输出压力传感器，放大输出压力传感器，或采用 MEMS技术4 -
20mA回路供电压力变送器。这
OEM压力传感器可以构造为一毫伏输出压力传感器，放大输出压力传感器，或采用 MEMS技术4 -
20mA回路供电压力变送器。
- 种类繁多的主题，输出，连接和选项
- 100V/m EMI / RFI 保护
- 全焊接不锈钢外壳

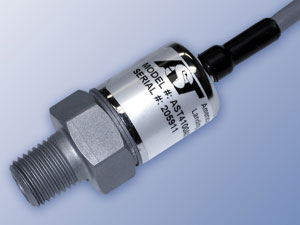

AST4100 -
对于需要一个小型的传感器包装，AST4100是一种低成本，高质量的压力传感器，利用领先的MEMS技术构造出的傅感器。
- 紧凑型设计
- 大多数配置在$150元以下
- mV, 4 - 20mA，及电压输出

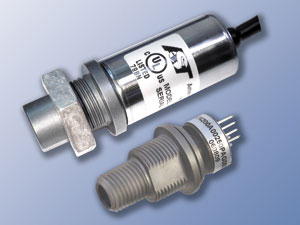

AST4200 - 为了简化安装压力传感器在控制面板应用，AST提供了AST4200
面板安装压力传感器。这种创新的传感器是通过面板直接安装，无需额外的适配器。
- 独特的工艺连接的面板安装
- 100V/m EMI / RFI 保护
- mV, 4 - 20mA，及电压输出

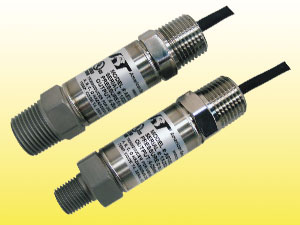

AST4300 -
理想适用于第1类2级应用，AST4300非易燃压力变送器事实证明了是最强大，经济高效的解决方案，为石油和天然气工业上。
- 1类2级非易燃组 A，B，C，D和独立密封
- 压力范围由0-25 至10,000 PSI
- 所有316L或铬镍铁合金 718 湿物料

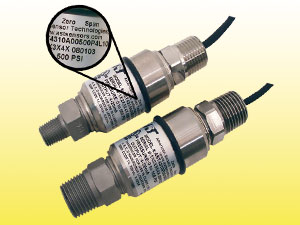

AST4310 -
提供非易燃等级，AST4310有能力调整零点和注满呎度压力范围外的石油和天然气的申请。
- 1类2级非易燃组 A，B，C，D和独立密封
- 零点和量程调整为 5％的满量程
- 所有316L或铬镍铁合金 718 湿物料

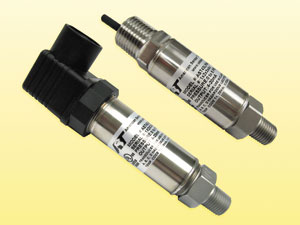

AST43LP - 这种低压力变送器是可以让用户准确地在非易燃区测量低于 15 PSI
的压力
- 1类2级非易燃组 A，B，C，D和独立密封
- 压力范围由0-1 PSI 至15 PSIG
- 低成本的压力测量

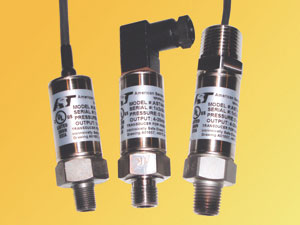

AST4400 -
是一种低成本，坚固，可靠的设备，本质安全的AST4400压力传感器具有多种方案，包括：压力接头，输出信号，电力连接和材质
- 1类2级本质安全 C，D组屏障认可和独立密封
- 压力范围由0-25 至10,000 PSI
- 所有316L或铬镍铁合金 718 湿物料

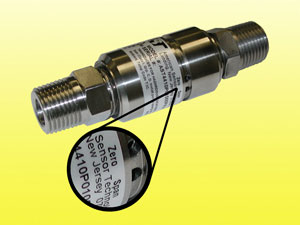

AST4410 -
有能力调整零及满以外的压力范围，AST4410提供了一个本质安全评级。这种压力变送器可用于石油/天然气，医疗和制药应用在重要关头的准确性。
- 1类2级本质安全 C，D组屏障认可和独立密封
- 零点和量程调整为 5％的满量程

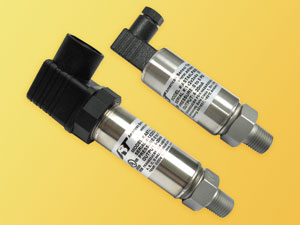

AST44LP - 对于需要本质安全，AST44LP低压力变送器使用户能够准确地测量低于
15PSI的压力
- 1类2级本质安全 C，D组屏障认可和独立密封
- 压力范围由0-1 PSI 至15 PSIG

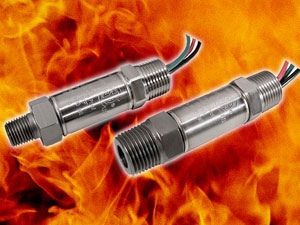

AST4600 -
这个防爆型压力变送器成为了最流行的防爆变送器的理由是它一开始就已经全部采用了316传感组件，有准确的读数，可重复使用，有可靠的结果。
- 1类1级防爆型A，B， C，D组独立密封
- 全部316L SS 感应组件
- <+0.25% BFSL

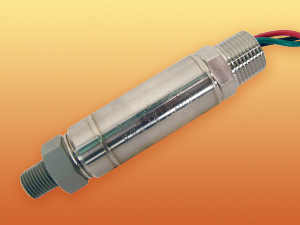

AST46HA -
下一级防爆压力变送器可用的AST46HA。用0.1％的精度，这种变送器在成本上是超越本来笨重的变送器。
- 1类2级防爆型 C，D组独立密封
- <+0.1% BFSL
- 在温度范围扩有优良的性能

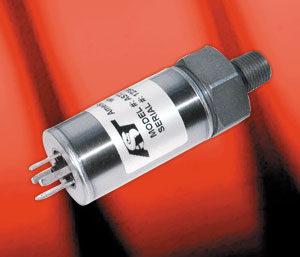

AST2000 - 采用
OEM设备，有着优良的性能，温度范围扩，AST2000是ASIC的补偿，高质量的压力传感器
- 在温度范围扩有优良的性能
- 100V/m EMI / RFI
- 全焊接不锈钢外壳

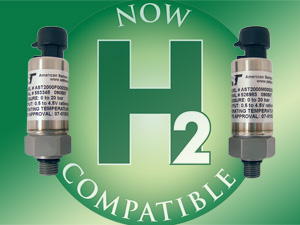

AST2000H2 -
这种兼容氢压力传感器提供了有资格的机载燃料电池和出现的误差不到1%。
- 所有316L 接液部分
- 机上的环保车和EMC认证
- 氢渗透的单车认证

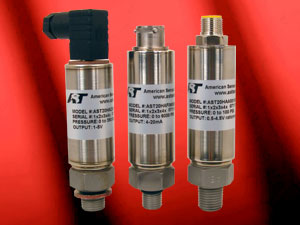

AST20HA -
数字补偿，在很宽的温度范围提供了出色的线性度，AST20HA可以有各种应用，包括实验室测试设备，军用车辆和航空航天控制。
- <+0.1% BFSL
- 在温度上有优良的性能
- 线性修正

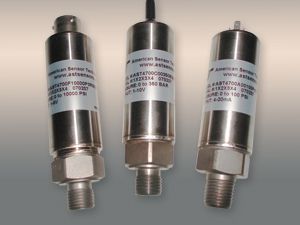

AST4700 -
这种压力传感器可提供的电压和频率的输出信号为三，四线系统。随着多种压力接头和电气连接，该产品可以在大多数的配置上应用，需
0 - 5V或0 - 10V 输出信号
- 0-5V, 0-10V, 及1-6kHz 输出信号
- 多种选择
- 压力范围由10,000 PSI 起

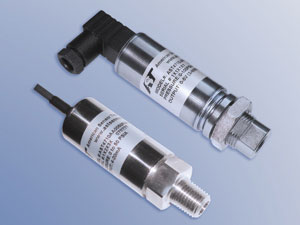

AST4710 - 这个传感器是可以确实测量的压力由0-15到300
PSIA。至于压力表之压力传感器是可以准确知道其气压变化，AST4710 将可保持其气压的校准。
- 压力范围由0-15 至300 PSIG
- 电压和电流输出信号
- 316L 湿部件

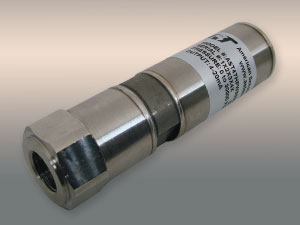

AST47HP - 其制造是可以承受压力达 60,000 PSI，AST47HP
高压传感器在于高循环的应用上是最好的解决方案，如液压或柴油普遍的路轨压力。
- 压力范围由0-15,000 至 60,000 PSI
- 多种输出和连接
- 高压灭菌，SAE 和公制螺纹

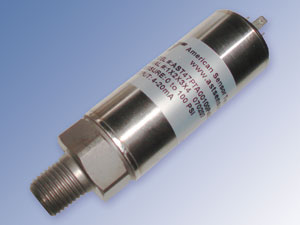

AST47PT -
测量压力和温度，AST47PT变送器提供两个独立的输出信号。温度测量内置RTD压力接头和扩大到4
- 20mA信号。
- 双 4 - 20mA 输出信号压力和温度
- 减少了安装时间和点

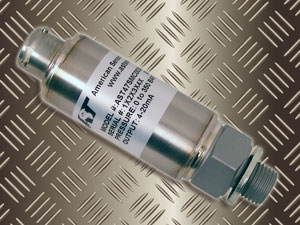

AST47SM - 其包装用上钢和铝机液压工序，AST47SM
压力变送器给予高使用周期，高压力应用。

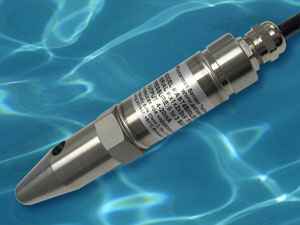

AST4500/AST4510 - 这类潜水型传感器可以测量水平由 1PSI 到100
PSI各种程序和媒体应用。
- 1类2级本质安全 C，D组屏障认可和独立密封
- 4 - 20mA及电压输出
- 压力范围由0-1 PSI 至15 PSIG

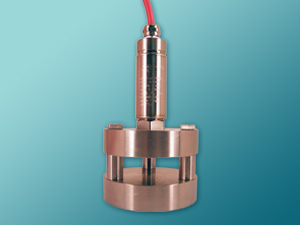

AST4520 -
监测水平粘性的废水及其它媒体，AST4520淹没隔膜传感器提供准确，重复使用。
- 淹没隔膜前衡量过的
- 所有316L和Kynar湿部件
- 压力范围由 0-2.5 PSI 到15 PSIG

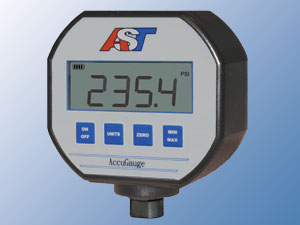

AG100 - 坚固和紧凑电池数字压力表，AG100是易于阅读和使用几乎所有的工业应用。
- 坚固耐用的电池供电数字压力表
- 大屏幕液晶显示
- 零点校准，最小/最大，多度量单位
AG200 - 这回路供电数字压力表提供了压力局部显示或4 -
20mA回路和输出信号，所以你可以监视您的设备在机器上或在你的办公桌。
- 大屏幕液晶显示屏，4 - 20mA输出
- 多计量单位
- 零点和量程校准

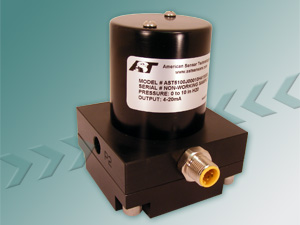

AST5100 - 使用LVDT技术，AST5100湿
/湿差压变送器在极低的压力下提供了精确的测量。
- 湿的介质兼容
- 压力范围可低至5" H2O
- 4 - 20mA 或 0 - 5V 的输出信号

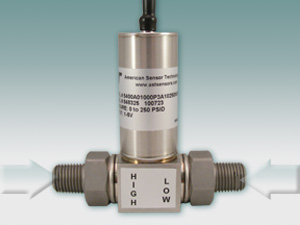

AST5400 - 该AST5400差压（DP）的传感器可以测量线压力可达2,000转弯向下的15比1。
- 高线压力/导通断功能
- 无论压力端口可以看到没有损害的全部压力
- 优良的性能在整个温度范围
- 20% DP范围
- 紧凑型设计
|
产品
AG100
数字压力表 |电池供电
AG200
回路供电的数字压力表 | 压力变送器带显示
AST2000
工业OEM ASIC设计压力传感器
AST2000H2
氢 ASIC 压力传感器
-316L不锈钢，介质隔离 for 氢 应用
AST20HA
压力传感器 - Industrial ASIC -不锈钢 介质隔离
AST3100
工业大批量的OEM ASIC 压力传感器
AST3200
通用低压工业压力传感器
AST4000
OEM压力传感器，压力传感器
AST4100
低成本，呎寸结实压力传感器及变送器
AST4200
面板安装压力传感器
AST4300
非易燃压力变送器 - 1类2级
AST4310
现场可调压力传感器 - 1类2级非易燃A，B，C和D组介质隔离不锈钢
AST43LP
低压非易燃压力传感器 - 1类2级非易燃A，B，C和D组
AST4400
本质安全型压力变送器 -1类1级
AST4410
现场可调本质安全型压力变送器 - 1类1级 IS C和D组批准屏障 - 不锈钢介质隔离
AST44LP
低压本质安全型压力变送器 / 传感器 -1类1级 IS C和D组安装批准屏障
AST4500/AST4510
液位传感器，液位，水位发射机
AST4520
液位传感器 -- 潜水冲洗隔膜压力传感器 -1类1级，C和D组的核准屏障
AST4600
防爆压力变送器 - 1类1级
AST46HA
防爆压力变送器 | 0.1%BFSL | 316L不锈钢 | 优异的性能与温度的关系
AST4700
多特征压力传感器 - 不锈钢 介质隔离
AST4710
绝对压力变送器，不锈钢，介质隔离
AST47HP
高压传感器 /发射机，不锈钢，介质隔离 up到60,000 PSIG
AST47LP
高精度不锈钢低压力变送器
AST47PT
不锈钢 介质隔离 压力/ 双4 - 20mA循环的温度传感器
AST47SM
钢/铝轧机压力变送器
AST4800
Miniature不锈钢 压力传感器
AST4900
高纯度压力变送器，压力传感器
AST5100
湿/湿低差压发射机
AST5400
微分压力传感器 液体和气体
Model1000
固态压力开关
Model5000
微分 压力传感器 - DP发射机
|
| Model |
Item ID Desc. |
Description |
|
|
46SW |
46SWA01PET0000022F05000 |
1/4 MNPT, 50psiL, SPDT, 2ft Wires, 17-4PH, SG, 22psiS, |
|
|
46SW |
46SWA01PET0G00025R10000 |
1/4 MNPT, 50psiL, SPDT, 2ft Cable, 17-4PH, Vented, 25 psiS, |
|
|
46SW |
46SWA01PEU1G00025F05000 |
1/4 MNPT, 50psiL, SPDT, 4ft Cable, 316L, Vented, 25 psiS, |
|
|
46SW |
46SWA01PEW1000015F05000 |
1/4 MNPT, 50psiL, SPDT, 2m Cable, 316L, Sealed Gauge, 15psiS |
|
|
46SW |
46SWA02PEW0G00045R01000 |
45 psiS, 100psiL, 1/4" MNPT, SPDT, Conduit, 2m cable, 17-4PH |
|
|
46SW |
46SWA02PEW1000030R05000 |
1/4 MNPT,100psiL,SPDT,2m, 316L, SG, 30psiS, Switch on Rise |
|
|
46SW |
46SWA02PEW1G00025F05000 |
1/4 MNPT, 100psiL, SPDT, 2m wires, 316L, 25 psiS, |
|
|
46SW |
46SWA03PEW1000025F10000 |
1/4 MNPT, 250psiL, SPDT, 2m wires, 316L, 25 psiS, |
|
|
46SW |
46SWA03PEW1G00150R05000 |
1/4 MNPT, 250psiL, SPDT, 2m wires, 316L, Vented, 150 psiS, |
|
|
46SW |
46SWA04PET0G00317R10000 |
1/4 MNPT, 500psiL, SPDT, 2ft Cable, 17-4PH, Vented, 317 psiS |
|
|
46SW |
46SWA05PET0000200R05000 |
1/4 MNPT, 1000psiL, SPDT, 2FT wires, 17-4PH, SG, 200psiS |
|
|
46SW |
46SWA05PEW0000250F01000 |
250 psiS, 1000psiL, 1/4" MNPT, SPDT, Conduit, 2m, 17-4PH |
|
|
46SW |
46SWA06PEW1000500F10000 |
1/4 MNPT, 3000psiL, SPDT, 2m wires, 316L, 500 psiS, |
|
|
46SW |
46SWA07PEW1001000R05000 |
1/4 MNPT, 5000psiL, SPDT, 2m Cable, 316L, Sealed, 1000 psiS, |
|
|
46SW |
46SWA09PET1009000R05000 |
1/4 MNPT, 10000psiL, SPDT, 2ft wires 316L, SG, 9000psiS |
|
|
46SW |
46SWI02PEW1000015F05000 |
1/4 FNPT, 100psiL, SPDT, 2m Cable, 316L, SG, 15psiS |
|
|
46SW |
46SWI03PET1000115R11000 |
1/4 FNPT, 250psiL, SPDT, 2ft Cable, 316L, SG, 115psiS |
|
|
46SW |
46SWP06PEW1000100R01000 |
3000 psiL, 1/2" MNPT, SPDT, 2m wires, Conduit, 316 L, 100 ps |
|
|
46SW |
46SWW10PEW0013500R01000 |
F250C Female Autoclave, 15000 psiL, 13500 psiS, SPDT, |
|
|
5400 |
5400A00050P2I10050N00 |
50 PSID, 50 PSIL, 1/4MNPT, 0-5V (3-WIRE), DIN 43650-A, 316L |
|
|
5400 |
5400A00050P5Y00010H00 |
10 PSID, 50 PSIL, 1/4MNPT, 0-10V (3-WIRE),M12x1,17-4,FM=High |
|
|
5400 |
5400A00500P4Y10200H00 |
200 PSID, 500 PSIL, 1/4MNPT, 4-20mA, M12x1 , 316L |
|
|
5400 |
5400A01000P3A10250N00 |
1/4 MNPT, 1000 PSI Line, 1-5V, 2 ft, 316L, 250 PSID |
|
|
AG100 |
AG100A02500 |
AccuGauge, Digital Press Gauge, 1/4MNPT, 2500 PSI |
|
|
AG100 |
AG100AV0050 |
AccuGauge, Digital Press Gauge, 1/4MNPT, -14.7 to 50 PSI |
|
|
AG100 |
AG100AV0100 |
AccuGauge, Digital Press Gauge, 1/4MNPT, -14.7 to 100 PSI |
|
|
AG100 |
AG100AV0250 |
AccuGauge, Digital Press Gauge, 1/4MNPT, -14.7 to 250 PSI |
|
|
AG100 |
AG100AV0500 |
AccuGauge, Digital Press Gauge, 1/4MNPT, -14.7 to 500 PSI |
|
|
AG100 |
AG100AV1000 |
AccuGauge, Digital Press Gauge, 1/4MNPT, -14.7 to 1000 PSI |
|
|
AG100 |
AG100JV0050 |
AccuGauge, Digital Press Gauge, 1/8FNPT, -14.7 to 50 PSI |
|
|
AG100 |
AG100JV1000 |
AccuGauge, Digital Press Gauge, 1/8FNPT, -14.7 to 1000 PSI |
|
|
AG200 |
AG200A01000P4E0000 |
1000 PSI, 1/4MNPT, 4-20mA, Mini-DIN, 17-4, digital gauge |
|
|
AST2000 |
AST2000A00100P1R0000 |
1/4 MNPT, 100 PSI, 0.5-4.5V ratio, 6 Pin Bendix 17-4 PH |
|
|
AST2000 |
AST2000A00150P1Z0000 |
150 PSI, 1/4MNPT, 0.5-4.5V ratio, Deutsch DT04-4P, 17-4PH |
|
|
AST2000 |
AST2000A00150P3Z0165 |
150 PSI, 1/4MNPT, 1-5V, Deutsch 4-Pin,P, 17-4 PH, Snbr, SG |
|
|
AST2000 |
AST2000A00200P3F1000 |
200 PSI, 1/4MNPT, 1-5V, Packard Metripack 150, 316L |
|
|
AST2000 |
AST2000A00250B1Y0000 |
250 BAR, 1/4MNPT, 0.5-4.5V ratiometric, Turck M12 4-Pin Euro |
|
|
AST2000 |
AST2000A00250P1F0000 |
250 PSI, 1/4MNPT, 0.5-4.5V ratiometric, Packard, 17-4 PH |
|
|
AST2000 |
AST2000A00400B5E0499 |
400 BAR, 1/4MNPT, 0-10V (3-WIRE), Mini DIN, 17-4PH |
|
|
AST2000 |
AST2000A00500B1Z1000 |
500 BAR, 1/4MNPT, 0.5-4.5V ratio, Deutsch DT04-4P, 316L |
|
|
AST2000 |
AST2000A00500P3C0000 |
500 PSI, 1/4MNPT, 1-5V, Cable, 6ft., 17-4 PH |
|
|
AST2000 |
AST2000A05000P3C0000 |
5000 PSI, 1/4MNPT, 1-5V, Cable, 6ft., 17-4 PH |
|
|
AST2000 |
AST2000A06000P3A1000 |
6000 PSI, 1/4MNPT, 1-5V, Cable, 2ft., 316L |
|
|
AST2000 |
AST2000B00200P1F0165 |
200 PSI, 1/8MNPT, 0.5-4.5V ratio, Packard, 17-4 PH, Snbr, SG |
|
|
AST2000 |
AST2000B00500P1F0165 |
500 PSI, 1/8MNPT, 0.5-4.5V ratio, Packard, 17-4 PH, Snbr, SG |
|
|
AST2000 |
AST2000B02000P1F0000 |
2000 PSI, 1/8MNPT, 0.5-4.5V ratiometric, Packard, 17-4 PH |
|
|
AST2000 |
AST2000C00001B4Y1000 |
1 BAR, 1/4BSP Male, 4-20mA, M12x1 , 316L |
|
|
AST2000 |
AST2000C00002B3Z1000 |
2 BAR, 1/4BSP Male, 1-5V, Deutsch DT04-4P, 316L |
|
|
AST2000 |
AST2000C00350B4Y1000 |
350 BAR, 1/4BSP Male, 4-20mA, M12x1 , 316L |
|
|
AST2000 |
AST2000CV0002B3Y1382 |
-1 to 2 BAR, 1/4BSP Male, 1-5V, M12x1 , 316L |
|
|
AST2000 |
AST2000F00002B3F1000 |
2 BAR, 7/16-20UNF Male, 1-5V, Packard Metripack 150, 316L |
|
|
AST2000 |
AST2000F00020B1F1379 |
Contact AST for full description |
|
|
AST2000 |
AST2000F00100P1F0367 |
100 PSI,7/16-20UNFM,0.5-4.5V ratio,Packard,SG,Snbr,2 |
|
|
AST2000 |
AST2000F00100P3A1000 |
100 PSI, 7/16-20UNF Male, 1-5V, Cable, 2ft., 316L |
|
|
AST2000 |
AST2000F00350B3F1000 |
350 BAR, 7/16-20UNF Male, 1-5V, Packard Metripack 150, 316L |
|
|
AST2000 |
AST2000F00350B4X0422 |
7/16-20M, 350 Bar, 4-20mA, 17-4, 19in, 4x (P/N132561_c) Crow |
|
|
AST2000 |
AST2000F00448B1F1000 |
448 BAR, 7/16-20UNF Male,0.5-4.5V ratiometric, Packard, 316L |
|
|
AST2000 |
AST2000F00448B1F1384 |
448 BAR, 7/16-20UNF Male, 0.5-4.5V ratio, Packard, 316L |
|
|
AST2000 |
AST2000F00500B1F1000 |
500 BAR, 7/16-20UNF Male, 0.5-4.5V ratio, Packard, 316L |
|
|
AST2000 |
AST2000F00500B1F1379 |
Contact AST for full description |
|
|
AST2000 |
AST2000F05000P1F0410 |
Contact AST for full description |
|
|
AST2000 |
AST2000F05000PGR0000 |
5000 PSI, 7/16-20UNF Male, 1-10V, 6- Pin Bendix , 17-4 PH |
|
|
AST2000 |
AST2000F06000P3A1000 |
Contact AST for full description |
|
|
AST2000 |
AST2000FV2800M1F1000 |
Contact AST for full description |
|
|
AST2000 |
AST2000K00045B1D0143 |
Contact AST for full description |
|
|
AST2000 |
AST2000K00500P5C0143 |
500 PSI, SAE 4 Fem, 0-10V (3-WIRE), 6ft., 17-4 PH, SG |
|
|
AST2000 |
AST2000M00020B1F1000 |
20 BAR, 3/8-24UNF Male, 0.5-4.5V, Packard, 316L |
|
|
AST2000 |
AST2000M00448B1F1000 |
448 BAR, 3/8-24UNF Male, 0.5-4.5V ratio, Packard, 316L |
|
|
AST2000 |
AST2000M00900B1F1379 |
3/8-24M, 900 BAR, 0.5-4.5V, Packard, 316L, -20to60C +/-1% |
|
|
AST2000 |
AST2000X00015B1F1496 |
15 BAR, Special, 0.5-4.5V ratiometric, Packard, 316L |
|
|
AST2000 |
AST2000X00020B1F1496 |
20 BAR, 11/16-16 Face Seal, 0.5-4.5V Ratiometric, Packard |
|
|
AST2000 |
AST2000X00448B1F1487 |
448 BAR, 0.5-4.5V ratiometric, Packard, 316L, 1/2-20UNF |
|
|
AST2000 |
AST2000X00900B1F1487 |
900 BAR ,0.5-4.5V ratio, Packard, 316L,1/2-20UNF,Dual O-ring |
|
|
AST2000 |
AST2000X00900B1F1494 |
900 BAR, 9/16-18 Face O-ring Seal,0.5-4.5V ratio, 316L |
|
|
AST2000 |
AST2000Y04500B1A0249 |
M18x1, 0.5-4.5V ratiometric, Cable, 2ft., 17-4 PH, 4500Bar |
|
|
AST20HA |
AST20HAA00005P1F1N495 |
5 PSI, 1/4MNPT, 0.5-4.5V ratiometric, Packard, 316L, FM=N/A |
|
|
AST20HA |
AST20HAA00025P4I1H000 |
25 PSI, 1/4MNPT, 4-20mA, DIN 43650-A, 316L, FM=N/A |
|
|
AST20HA |
AST20HAA00035B3A1N000 |
35 BAR, 1/4MNPT, 1-5V, Cable, 2ft., 316L, FM=N/A |
|
|
AST20HA |
AST20HAA00050P4I1H000 |
50 PSI, 1/4MNPT, 4-20mA, Big Din, 316L, Fault=High |
|
|
AST20HA |
AST20HAA00060P4I1H000 |
60 PSI, 1/4MNPT, 4-20mA, Big Din, 316L, Fault=High |
|
|
AST20HA |
AST20HAA00100P4E0N000 |
100 PSI, 1/4MNPT, 4-20mA, Mini DIN 43650C (8mm), 17-4 PH |
|
|
AST20HA |
AST20HAA00100P6C0N000 |
100 PSI, 1/4MNPT, 1-6V, Cable, 6ft., 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAA00150P4C1N000 |
150 PSI, 1/4MNPT, 4-20mA, Cable, 6ft., 316L ASIC |
|
|
AST20HA |
AST20HAA00150P4D1N000 |
150 PSI, 1/4MNPT, 4-20mA, Cable, 10ft., 316L |
|
|
AST20HA |
AST20HAA00150PGY0N000 |
150 PSI, 1/4MNPT, 1-10V, M12x1 , 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAA00200P3A1N000 |
200 PSI, 1/4MNPT, 1-5V, Cable, 2ft., 316L, FM=N/A |
|
|
AST20HA |
AST20HAA00200P4D0N009 |
200 PSI, 1/4MNPT, 4-20mA, Cable, 10ft., 17-4 PH, SG |
|
|
AST20HA |
AST20HAA00200P4I1H000 |
200 PSI, 1/4MNPT, 4-20mA, Big Din, 316L, Fault=High |
|
|
AST20HA |
AST20HAA00250P4D0N000 |
250 PSI, 1/4MNPT, 4-20mA, Cable, 10ft, 17-4 PH |
|
|
AST20HA |
AST20HAA00250P4I1H000 |
250 PSI, 1/4MNPT, 4-20mA, Big Din, 316L, Fault=High |
|
|
AST20HA |
AST20HAA00250P5D1H000 |
250 PSI, 1/4MNPT, 0-10V, Cable, 10ft., 316L, FM=High |
|
|
AST20HA |
AST20HAA00500P4D0N000 |
500 PSI, 1/4MNPT, 4-20mA, Cable, 10ft, 17-4 PH |
|
|
AST20HA |
AST20HAA00500P4I1H000 |
500 PSI, 1/4MNPT, 4-20mA, Big Din, 316L, Fault=High |
|
|
AST20HA |
AST20HAA00500P6A0N000 |
500 PSI, 1/4MNPT, 1-6V, Cable, 2ft., 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAA02000P5R1N000 |
2000PSI, 1/4MNPT, 0-10V (3-WIRE), 6- Pin Bendix, 316L,FM=N/A |
|
|
AST20HA |
AST20HAA02500P3D1N000 |
2500 PSI, 1/4MNPT, 1-5V, Cable, 10ft., 316L, FM=N/A |
|
|
AST20HA |
AST20HAA03000P4I1H000 |
3000 PSI, 1/4MNPT, 4-20mA, Big Din, 316L, Fault=High |
|
|
AST20HA |
AST20HAA05000P5R1N000 |
5000PSI, 1/4MNPT, 0-10V (3-WIRE), 6- Pin Bendix, 316L,FM=N/A |
|
|
AST20HA |
AST20HAA10000P2I0H000 |
10000 PSI, 1/4MNPT, 0-5V (3-WIRE), Big-DIN, 17-4 PH, FM=High |
|
|
AST20HA |
AST20HAA10000P4E0N000 |
10000 PSI, 1/4MNPT, 4-20mA, Mini DIN, 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAAA0250P4D0N000 |
250 PSIA, 1/4MNPT, 4-20mA, Cable, 10ft., 17-4 PH |
|
|
AST20HA |
AST20HAAV0050P4I1H000 |
50 PSI, 1/4MNPT, 4-20mA, Big Din, 316L, Fault=High |
|
|
AST20HA |
AST20HAAV0500PLD0N000 |
-14.7 to 500 PSI, 1/4MNPT, 0-10V (4-WIRE), 10ft., 17-4PH |
|
|
AST20HA |
AST20HAB00250P3A0N000 |
250 PSI, 1/8MNPT, 1-5V, Cable, 2ft., 17-4 PH |
|
|
AST20HA |
AST20HAC00150P4E0H000 |
150 PSI, 1/4BSP Male, 4-20mA, Mini DIN 43650C (8mm), 17-4 PH |
|
|
AST20HA |
AST20HAC00350B5R0N000 |
350 BAR, 1/4BSP Male, 0-10V (3-WIRE), 6- Pin Bendix ,17-4 PH |
|
|
AST20HA |
AST20HAC05000P4E0H000 |
5000 PSI, 1/4BSP Male, 4-20mA, Mini DIN 43650C (8mm), 17-4PH |
|
|
AST20HA |
AST20HAC07500P4E0H000 |
7500 PSI, 1/4BSP Male, 4-20mA, Mini DIN 17-4 PH, FM=High |
|
|
AST20HA |
AST20HAE10000P4B0N000 |
10000 PSI, 9/16-18UNF Male, 4-20mA, Cable, 4ft., 17-4 PH |
|
|
AST20HA |
AST20HAF00275B4Y0N000 |
275 BAR, 7/16-20UNF Male, 4-20mA, M12x1 , 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAF00415B4Y0N000 |
415 BAR, 7/16-20UNF Male, 4-20mA, M12x1 , 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAF05000P4R0N395 |
5000 PSI, 7/16-20UNF Male, 4-20mA, 6- Pin Bendix , 17-4 PH, |
|
|
AST20HA |
AST20HAF05000P4Z0N000 |
5000 PSI, 7/16-20UNF Male, 4-20mA, Deutsch DT04-4P, 17-4 PH |
|
|
AST20HA |
AST20HAF05000PGF1N000 |
5000 PSI, 7/16-20UNF Male, 1-10V, Packard, 316L, FM=N/A |
|
|
AST20HA |
AST20HAF06000P4I0N000 |
6000 PSI, 7/16-20UNF Male, 4-20mA, Big-DIN, 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAF06000P4R1000 |
7/16-20M, 4-20mA, 6,000 PSI, 316L, Bendix, ASIC |
|
|
AST20HA |
AST20HAF06000P4R1N000 |
7/16-20M, 4-20mA, 6,000 PSI, 316L, Bendix, ASIC |
|
|
AST20HA |
AST20HAF15000P4I1H117 |
15000 PSI, 7/16-20UNF Male, 4-20mA, Big- DIN, 316L, Snbr |
|
|
AST20HA |
AST20HAFV0150PGF1N000 |
-14.7 to 150 PSI, 7/16-20UNF Male, 1-10V, Packard, 316L |
|
|
AST20HA |
AST20HANA0003B4I1N000 |
3 BARA, VCR Male, 4-20mA, DIN 43650-A, 316L, FM=N/A |
|
|
AST20HA |
AST20HANA0010B4I1N000 |
10 BARA, VCR Male, 4-20mA, DIN 43650-A, 316L, FM=N/A |
|
|
AST20HA |
AST20HANV0085P3E1N000 |
-14.7 to 85 PSI, VCR Male, 1-5V, Mini DIN 43650C (8mm), 316L |
|
|
AST20HA |
AST20HAT00500P4R1N477 |
500 PSI, G1/2 Male, 4-20mA, 6- Pin Bendix , 316L, 2X Header, |
|
|
AST20HA |
AST20HAW03000B5A0N000 |
3000 BAR, F250C female, 0-10V, Cable, 2ft., 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAW15000P3A0N000 |
15000 PSI, F250C female, 1-5V, Cable, 2ft., 17-4 PH |
|
|
AST20HA |
AST20HAW15000P4E1H009 |
15000 PSI, F250C female, 4-20mA, Mini DIN, 316L, SG, FM=High |
|
|
AST20HA |
AST20HAW30000P1R0N000 |
30000 PSI, F250C, 0.5-4.5V ratio, Bendix, 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAW35000P4E0N000 |
35000 PSI, F250C female, 4-20mA, Mini DIN, 17-4 PH, FM=N/A |
|
|
AST20HA |
AST20HAW45000P2I0H000 |
45000 PSI, F250C female, 0-5V, DIN 43650-A, 17-4 PH |
|
|
AST20PT |
AST20PT1A00200P4D1H000 |
200 PSI, 1/4MNPT, 4-20mA, Cable, 10ft., 316L, -40 to 85°C, |
|
|
AST20PT |
AST20PT1A04000P4A1N000 |
4000 PSI, 1/4MNPT, 4-20mA, Cable, 2ft., 316L, -40 to 85øC |
|
|
AST20PT |
AST20PT1A10000P3A1N000 |
10000 PSI, P/T, 1/4MNPT, 1-5V, Cable, 2ft., 316L, -4 |
|
|
AST20PT |
AST20PT2A00010B5X0N191 |
10 Bar, 1/4MNPT, 0-10V, 30ft Cable, 17-4 PH, -40 to 125degC, |
|
|
AST20PT |
AST20PT2A00250P4Y1N000 |
250 PSI, 1/4MNPT, 4-20mA, M12, 316L, -40 to 125°C |
|
|
AST20PT |
AST20PT2A00500P9B0N000 |
500 PSI, 1/4MNPT, 0.25-5V, Cable, 4ft., 17-4 PH, FM=N/A |
|
|
AST20PT |
AST20PT2F04000P4I0N000 |
4000 PSI, 7/16-20UNF Male, 4-20mA, DIN 43650-A, 17-4 PH |
|
|
AST20PT |
AST20PT2PV0025P4Y1N000 |
-14.7 to 25 PSI, 1/2MNPT, 4-20mA, M12, 316L, -40 to 125°C |
|
|
AST20PT |
AST20PT3A00100P4Y1N000 |
100 PSI, 1/4MNPT, 4-20mA, M12x1, 316L, 0 to 70°C (32 to 158° |
|
|
AST20PT |
AST20PT3B00150P2E0N000 |
150 PSI, 1/8MNPT, 0-5V, Mini-DIN, 17-4PH, 0 to 70°C |
|
|
AST20PT |
AST20PT3E00050P2I0H000 |
50 PSI, 9/16-18UNF Male, 0-5V, Big-DIN, |
|
|
AST20PT |
AST20PT3EV0025P2I0H000 |
-14.7 to 25 PSI, 9/16-18UNF Male, 0-5V, Big-DIN, |
|
|
AST20PT |
AST20PT3P00100P4I4N000 |
100 PSI, 1/2MNPT, 4-20mA, Big-DIN, Hastelloy, FM=N/A, |
|
|
AST20PT |
AST20PT3P00150P4D0L000 |
150 PSI, 1/2MNPT, 4-20mA, Cable, 10ft., 17-4ph, 0 to 70°C, |
|
|
AST3100 |
AST3100A00010P9X1074 |
10 PSI, 1/4MNPT, 0.25-5V, Special, 316L, 25 ft. Total Cable |
|
|
AST3100 |
AST3100A00050P3A0000 |
0 to 50 PSI, 1/4MNPT, 1-5V, Cable, 2ft. |
|
|
AST3100 |
AST3100A00200P3A0000 |
200 PSI, 1/4MNPT, 1-5V, Cable, 2ft. |
|
|
AST3100 |
AST3100A00250P3A0000 |
250 PSI, 1/4MNPT, 1-5V, Cable, 2ft. |
|
|
AST3100 |
AST3100A06000P1A0000 |
6000 PSI, 1/4MNPT, 0.5-4.5V, Cable, 2ft. |
|
|
AST3100 |
AST3100AV0015P3A0000 |
1/4MNPT, -14.7 TO 15 PSI, 1-5V, 2 FT, 17-4 |
|
|
AST3100 |
AST3100B00100P1A0000 |
100 PSI, 1/8MNPT, 0.5-4.5V, Cable, 2ft. |
|
|
AST3100 |
AST3100B00500P3A0000 |
500 PSI, 1/8MNPT, 1-5V, Cable, 2ft. |
|
|
AST3100 |
AST3100F00100P1A0000 |
100 PSI, 7/16-20UNF, 0.5-4.5V, Cable, 2ft. |
|
|
AST3100 |
AST3100F00500P4E0000 |
500PSI, 7/16-20UNF male, 4-20mA, Mini DIN 43650 |
|
|
AST3100 |
AST3100F05000P3F0000 |
5000 PSI, 7/16-20UNF, 1-5V, Packard Metripac 150, 3 Pin Conn |
|
|
AST3100 |
AST3100X43500P1A0123 |
43500 PSI, 0.5-4.5V, 2ft Cbl, High Press M16x1.5 female thre |
|
|
AST3100 |
AST3100X43500P3A0123 |
43500 PSI, 1-5V, 2ft Cbl, High Press M16x1.5 female thread |
|
|
AST3100 |
AST3100X58000P1A0123 |
58000 PSI, 0.5-4.5V, 2ft Cbl, High Press M16x1.5 female thre |
|
|
AST4000 |
AST4000A00002B4E0000 |
2 BAR, 1/4MNPT, 4-20mA, Mini DIN 43560, 17-4 PH |
|
|
AST4000 |
AST4000A00015P2B0557 |
15 PSI, 1/4MNPT, 0-5V, Cable, 4ft., 17-4 PH, Clear Overlay |
|
|
AST4000 |
AST4000A00015P4B0000 |
15 PSI, 1/4MNPT, 4-20mA, Cable, 4ft., 17-4 PH |
|
|
AST4000 |
AST4000A00025PAZ0000 |
25 PSI, 1/4MNPT, 10 mV/V, Deutsch DT04-4P, 17-4 PH |
|
|
AST4000 |
AST4000A00050B4A0000 |
50 BAR, 1/4MNPT, 4-20mA, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000A00050P2B0557 |
50 PSI, 1/4MNPT, 0-5V, Cable, 4ft., 17-4 PH, Clear Overlay |
|
|
AST4000 |
AST4000A00050P3B0000 |
50 PSI, 1/4MNPT, 1-5V, Cable, 4ft., 17-4 PH |
|
|
AST4000 |
AST4000A00050P4Y1000 |
50 PSI, 1/4MNPT, 4-20mA,M12x1, 316L |
|
|
AST4000 |
AST4000A00060B1A1032 |
60 BAR, 1/4MNPT, 0.5-4.5V ratio, Cable, 2ft., 316L,0.1% BFSL |
|
|
AST4000 |
AST4000A00100P3B0000 |
100 PSI, 1/4MNPT, 1-5V, Cable, 4ft. 17-4 |
|
|
AST4000 |
AST4000A00100P4A1000 |
100 PSI, 1/4MNPT, 4-20mA, Cable, 2ft., 316L |
|
|
AST4000 |
AST4000A00100P4B1000 |
100 PSI, 1/4MNPT, 4-20mA, Cable, 4ft., 316L |
|
|
AST4000 |
AST4000A00100PAZ0000 |
100 PSI, 1/4MNPT, 10 mV/V, Deutsch DT04-4P, 17-4 PH |
|
|
AST4000 |
AST4000A00160P4A0000 |
160 PSI, 1/4MNPT, 4-20mA, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000A00200P1A0000 |
200 PSI, 1/4MNPT, 0.5-4.5V, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000A00200P1D0000 |
200 PSI, 1/4MNPT, 0.5-4.5V, Cable, 10ft., 17-4 PH |
|
|
AST4000 |
AST4000A00200P4I0000 |
200 PSI, 1/4MNPT, 4-20mA, DIN 43650-A, 17-4 PH |
|
|
AST4000 |
AST4000A00200P4Y0563 |
200 PSI, 1/4MNPT, 4-20mA, M12x1 , 17-4 PH, 5X Header, SG |
|
|
AST4000 |
AST4000A00200P5Y1117 |
200 PSI, 1/4MNPT, 0-10V, M12x1 , 316L, Snubber |
|
|
AST4000 |
AST4000A00250P4C0000 |
250 PSI, 1/4MNPT, 4-20mA, Cable, 6ft., 17-4 PH |
|
|
AST4000 |
AST4000A00250PAZ0000 |
250 PSI, 1/4MNPT, 10 mV/V, Deutsch DT04-4P, 17-4 PH |
|
|
AST4000 |
AST4000A00300P2K1009 |
300 PSI, 1/4MNPT, 0-5V (3-WIRE), Deutsch DT04-3P, 316L, SG |
|
|
AST4000 |
AST4000A00300P3D0000 |
300 PSI, 1/4MNPT, 1-5V, Cable, 10ft., 17-4 PH |
|
|
AST4000 |
AST4000A00300P4E1117 |
300 PSI, 1/4MNPT, 4-20mA, Mini DIN 43650C (8mm), 316L, Snubb |
|
|
AST4000 |
AST4000A00300P4I0000 |
300 PSI, 1/4MNPT, 4-20mA, DIN 43650-A, 17-4 PH |
|
|
AST4000 |
AST4000A00300P4K1009 |
300 PSI, 1/4MNPT, 4-20mA, Deutsch DT04-3P, 316L, SG |
|
|
AST4000 |
AST4000A00300PGA1000 |
Contact AST for full description |
|
|
AST4000 |
AST4000A00500P3A0000 |
500 PSI, 1/4MNPT, 1-5V, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000A01000P1A0000 |
1000 PSI, 1/4MNPT, 0.5-4.5V, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000A01000P4R0000 |
1000 PSI, 1/4MNPT, 4-20mA, 6- Pin Bendix , 17-4 PH |
|
|
AST4000 |
AST4000A01000P4Z0165 |
1000 PSI, 1/4MNPT, 4-20mA, Deutsch 4P, 17-4 PH, Snubber, SG |
|
|
AST4000 |
AST4000A01000PXA0172 |
1000 PSI, 1/4MNPT, 2ft Cbl, 17-4, 0.5-4.5V non ratio, Sealed |
|
|
AST4000 |
AST4000A02000P3A0000 |
2000 PSI, 1/4MNPT, 1-5V, Cable, 2ft. |
|
|
AST4000 |
AST4000A02500P6E0000 |
Contact AST for full description |
|
|
AST4000 |
AST4000A03500P4B0000 |
3500 PSI, 1/4MNPT, 4-20mA, Cable, 4ft., 17-4 PH |
|
|
AST4000 |
AST4000A05000P3F0500 |
5000 PSI, 1/4MNPT, 1-5V, Packard Metripack 150, 17-4 PH, |
|
|
AST4000 |
AST4000A05000PAX0529 |
5000 PSI, 1/4MNPT, 10 mV/V, Special, 17-4 PH, Hirschmann G41 |
|
|
AST4000 |
AST4000AV0001B4E0000 |
-1 to 1 BAR, 1/4MNPT, 4-20mA, Mini DIN 43560, 17-4 PH |
|
|
AST4000 |
AST4000AV0025P3Z0000 |
-14.7 to 25 PSI, 1/4MNPT, 1-5V, Deutsch DT04-4P, 17-4 PH |
|
|
AST4000 |
AST4000AV0055P4A0000 |
-14.7 to 55 PSI, 1/4MNPT, 4-20mA, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000AV0200P4E0000 |
-14.7 to 200 PSI, 1/4MNPT, 4-20mA, Mini DIN, 17-4PH |
|
|
AST4000 |
AST4000AV0300P3E1256 |
Contact AST for full description |
|
|
AST4000 |
AST4000AV0500P3X1191 |
-14.7 to 500 PSI, 1/4MNPT, 1-5V, 316L, 30ft standard Cbl |
|
|
AST4000 |
AST4000B00003K1B0000 |
3 kg/cm2, 1/8MNPT, 0.5-4.5V, Cable, 4ft., 17-4 PH |
|
|
AST4000 |
AST4000B00035KAA0000 |
35 kg/cm2, 1/8MNPT, 10 mV/V, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000B00100P3A0000 |
100 PSI, 1/8MNPT, 1-5V, Cable, 2ft. 17-4 PH |
|
|
AST4000 |
AST4000B00100P6B0009 |
100 PSI, 1/8MNPT, 1-6V, Cable, 4ft., 17-4 PH, Sealed Gauge |
|
|
AST4000 |
AST4000B00200P4A0368 |
200 PSI, 1/8MNPT, 4-20mA, Cable, 2ft., 17-4 PH, High cap |
|
|
AST4000 |
AST4000B00200P4B0000 |
200 PSI, 1/8MNPT, 4-20mA, Cable, 4ft., 17-4 PH |
|
|
AST4000 |
AST4000B00200P4D0368 |
200 PSI, 1/8MNPT, 4-20mA, Cable, 10ft., 17-4 PH, High capaci |
|
|
AST4000 |
AST4000B00500P4D0368 |
500 PSI, 1/8MNPT, 4-20mA, Cable, 10ft., 17-4 PH, High capaci |
|
|
AST4000 |
AST4000B00600P4D0431 |
600 PSI, 1/8MNPT, 4-20mA, Cable, 10ft., 17-4 PH, Sealed Gaug |
|
|
AST4000 |
AST4000C00001B1B1383 |
1 BAR, 1/4 BSP Male, 0.5-4.5V, Cable, 24 AWG 4ft., 316L, |
|
|
AST4000 |
AST4000C00004B4B0000 |
4 BAR, 1/4BSP Male, 4-20mA, Cable, 4ft., 17-4 PH |
|
|
AST4000 |
AST4000C00005BAE0000 |
5 BAR, 1/4BSP Male, 10 mV/V, Mini DIN 43650C (8mm), 17-4 PH |
|
|
AST4000 |
AST4000C00040B4I1000 |
40 BAR, 1/4BSP Male, 4-20mA, DIN43650A, 316L |
|
|
AST4000 |
AST4000C00200B3A0000 |
200 BAR, 1/4BSP Male, 1-5V, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000C00350BAE0032 |
350 BAR, 1/4BSP Male, 10 mV/V, Mini DIN, 17-4 PH, 0.1% BFSL |
|
|
AST4000 |
AST4000E10000P3X0295 |
10000 PSI, 9/16-18UNF Male, 1-5V, Special, 17-4 PH, 22AWG Ca |
|
|
AST4000 |
AST4000F00030P3A1000 |
30 PSI, 7/16-20UNF Male, 1-5V, Cable, 2ft., 316L |
|
|
AST4000 |
AST4000F00100P3A0000 |
100 PSI, 7/16-20UNF Male, 1-5V, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000F00200B1F0000 |
200 BAR, 7/16-20UNF Male, 0.5-4.5V ratio, Packard, 17-4 PH |
|
|
AST4000 |
AST4000F00200B1F1000 |
200 BAR, 7/16-20UNF Male, 0.5-4.5V ratio, Packard, 316L |
|
|
AST4000 |
AST4000F00200B3A1000 |
200 BAR, 7/16-20UNF Male, 1-5V, Cable, 2ft., 316L |
|
|
AST4000 |
AST4000F00600B1B0000 |
600 BAR, 7/16-20UNF Male, 0.5-4.5V, Cable, 4ft., 17-4 PH |
|
|
AST4000 |
AST4000F01000P4E0000 |
1000 PSI, 7/16-20UNF Male, 4-20mA, Mini DIN, 17-4 PH |
|
|
AST4000 |
AST4000F02000P8A0000 |
2000 PSI, 7/16-20UNF Male, 0.5-5.5V, Cable, 2ft., 17-4 PH |
|
|
AST4000 |
AST4000F02500P4E0000 |
2500 PSI, 7/16-20UNF Male, 4-20mA, Mini DIN 43560, 17-4 PH |
|
|
AST4000 |
AST4000F03000P1F1234 |
3000 PSI, 7/16-20UNFM, 0.5-4.5V, Metripac 150, 316L, EPDM O- |
|
|
AST4000 |
AST4000F03000P4I0117 |
3000 PSI, 7/16-20UNF Male, 4-20mA, Big-DIN, 17-4 PH, Snubber |
|
|
AST4000 |
AST4000F05000P3X0342 |
5000 PSI 7/16-20M 1-5V, 17-4 2X, SG Snb, +V protect, Deutsch |
|
|
AST4000 |
AST4000F10000P1F0224 |
10000 PSI, 7/16-20UNF Male, 0.5-4.5V ratio,Pkrd 150, Hi Vibe |
|
|
AST4000 |
AST4000F10000PAX0108 |
10000 PSI, 7/16-20UNF Male, 10 mV/V, 17-4, Flex 2 in. |
|
|
AST4000 |
AST4000F10000PGI0165 |
10000 PSI, 7/16-20UNF Male, 1-10V, Big-DIN,17-4 PH, Snbr, SG |
|
|
AST4000 |
AST4000H00100B4E0250 |
100 BAR, M20x1.5 Male, 4-20mA, Mini DIN, 17-4 PH,(SEE NOTES) |
|
|
AST4000 |
AST4000K00500P4Y0143 |
500 PSI, SAE 4 Female, 4-20mA, M12x1, 17-4PH |
|
|
AST4000 |
AST4000P00160P4R4550 |
160 PSI, 1/2MNPT, 4-20mA, 6- Pin Bendix, Hastelloy, 3X Flush |
|
|
AST4000 |
AST4000P01000P4A1000 |
1000 PSI, 1/2MNPT, 4-20mA, Cable, 2ft., 316L |
|
|
AST4000 |
AST4000XV0100PAX1081 |
-14.7 to 100 PSI, 10 mV/V, 316L hdr, 1/8 Male NPT, 5/8 inch |
|
|
AST4000 |
AST4000XV0500PAX1081 |
-14.7 to 500 PSI, 10 mV/V, 316L hdr, 1/8 Male NPT, 5/8 inch |
|
|
AST4000 |
AST4000XV2500PAX1081 |
-14.7 to 2500 PSI, 10 mV/V, 316L hdr, 1/8 Male NPT, 5/8 inch |
|
|
AST4100 |
AST4100A00025P6D0000 |
25 PSI, 1/4MNPT, 1-6V, Cable, 10ft., 17-4 PH |
|
|
AST4100 |
AST4100A00300PAA1054 |
300 PSI, 1/4MNPT, 10 mV/V, Cable, 2ft., 316L, Short Housing |
|
|
AST4100 |
AST4100A02500PBA0000 |
2500 PSI, 1/4MNPT, 20 mV/V, Cable, 2ft. |
|
|
AST4100 |
AST4100A03000PAA0000 |
3000 PSI, 1/4MNPT, 10 mV/V, Cable, 2ft., 17-4 PH |
|
|
AST4100 |
AST4100A03000PBA0054 |
3000 PSI, 20 mV/V, 1/4MNPT, 2ft. Cable, Shortened Housing |
|
|
AST4100 |
AST4100A10000P1C0000 |
10000 PSI, 1/4MNPT, 0.5-4.5V ratiometric, Cable, 6ft., 17-4 |
|
|
AST4100 |
AST4100A10000PBA0000 |
10000 PSI, 1/4MNPT, 20 mV/V, Cable, 2ft. |
|
|
AST4100 |
AST4100B00100PAX0038 |
100 PSI, 1/8MNPT, 10 mV/V, 17-4, Grey Cbl, 2ft, 24ga |
|
|
AST4100 |
AST4100B00150PAX0038 |
150 PSI, 1/8MNPT, 10 mV/V, 17-4, Grey Cbl, 2ft, 24ga |
|
|
AST4100 |
AST4100B00500PAX0038 |
500 PSI, 1/8MNPT, 10 mV/V, 17-4, Grey Cbl, 2ft, 24ga |
|
|
AST4100 |
AST4100B01000PAX0038 |
1000 PSI, 1/8MNPT, 10 mV/V, 17-4, Grey Cbl, 2ft, 24ga |
|
|
AST4100 |
AST4100B07500PAX0038 |
7500 PSI, 1/8MNPT, 10 mV/V, 17-4, Grey Cbl, 2ft, 24ga |
|
|
AST4100 |
AST4100BA0030P1X1424 |
Contact AST for full description |
|
|
AST4100 |
AST4100F10000PBA0299 |
Contact AST for full description |
|
|
AST4100 |
AST4100F10000PBA3054 |
10000 PSI, 7/16-20UNFM, 20 mV/V, 2ft Cbl, Titanium ASTM F-67 |
|
|
AST4100 |
AST4100X12000P4A3153 |
12000 PSI, Special, 4-20mA, Cable, 2ft., Titanium |
|
|
AST4100 |
AST4100X20000PBA0223 |
Contact AST for full description |
|
|
AST4200 |
AST4200J00100PAX0205 |
100 PSI, 1/8FNPT, 10 mV/V, 17-4, 8 in. Hook-up wires, 24ga. |
|
|
AST4200 |
AST4200J00200P4A0000 |
200 PSI, Panel Mount, 1/8FNPT, 4-20mA, Cable, 2ft. |
|
|
AST4200 |
AST4200J00200P4D0000 |
200 PSI, Panel Mount, 1/8FNPT, 4-20mA, Cable, 10ft., 17-4 PH |
|
|
AST4200 |
AST4200J00250PBG0000 |
250 PSI, 1/8FNPT, 20 mV/V, Molex Connector, 17-4 PH |
|
|
AST4200 |
AST4200J02000P3E0000 |
2000 PSI, 1/8FNPT female, 1-5V, Mini DIN 43560, 17-4 PH |
|
|
AST4200 |
AST4200JV0025PAG0000 |
-14.7 to 25 PSI, 1/8FNPT, 10 mV/V, Molex Conn, 17-4 |
|
|
AST4300 |
AST4300A00004B4N1000 |
4 BAR, 1/4MNPT, 4-20mA, Conduit, Cable, 6ft., 316L |
|
|
AST4300 |
AST4300A00050B4N1409 |
50 BAR, 1/4MNPT, 4-20mA, Conduit, 6ft., 316L ENGRAVED |
|
|
AST4300 |
AST4300A00050P1M1000 |
50 PSI, 1/4MNPT, 0.5-4.5V ratiometric, Conduit, 4ft., 316L |
|
|
AST4300 |
AST4300A00100P4X0452-SS |
100 PSI, 1/4MNPT, 4-20mA, Conduit, 25ft., 17-4PH, Single Sea |
|
|
AST4300 |
AST4300A00500P4X0452-SS |
500 PSI, 1/4MNPT, 4-20mA, Conduit, 25ft., 17-4PH, Single Sea |
|
|
AST4300 |
AST4300A01000P3L0000 |
1000 PSI, 1/4MNPT, 1-5V, Conduit, 2ft., 17-4 PH |
|
|
AST4300 |
AST4300A02000P3M0000 |
2000 PSI, 1/4MNPT, 1-5V, Conduit, 4ft., 17-4 PH |
|
|
AST4300 |
AST4300A02000P3M1032 |
2000 PSI, 1/4MNPT, 1-5V, Conduit, 4ft., 316L, BFSL < 0.1% |
|
|
AST4300 |
AST4300A03000P9X1216-SS |
3000PSI, 1/4MNPT, 0.25-5V, 316L, 20 ft, 22 AWG, SG, Single S |
|
|
AST4300 |
AST4300A05000P3L0000 |
5000 PSI, 1/4MNPT, 1-5V, Conduit, 2ft. |
|
|
AST4300 |
AST4300A05000P441000-SS |
5000 PSI, 1/4MNPT, 4-20mA, Mini-Fast , 316L, Single Seal |
|
|
AST4300 |
AST4300AV0025P6P1000 |
-14.7 to 25 PSI, 1/4MNPT, 1-6V, Conduit, 10ft., 316L |
|
|
AST4300 |
AST4300AV0030P4X1144 |
-14.7 to 30 PSI,1/4MNPT,4-20mA, 316L, 4 ft 20 AWG, SG, Snbr |
|
|
AST4300 |
AST4300AV0085P441032-SS |
-14.7 to 85 PSI, 1/4MNPT, 4-20mA, Turck Mini-Fast, 316L, Sin |
|
|
AST4300 |
AST4300C03000P4P1000-SS |
3000 PSI, 1/4BSP Male, 4-20mA, Cond, 10ft., 316L,Single Seal |
|
|
AST4300 |
AST4300CV0025PAM1506-SS |
-14.7 to 25 PSI, 1/4BSP Male, 10 mV/V, Conduit, 4ft., 316L, |
|
|
AST4300 |
AST4300F00200P4I1000 |
200 PSI, 7/16-20UNF Male, 4-20mA, DIN 43650-A, 316L |
|
|
AST4300 |
AST4300I02500P3M0000 |
2500 PSI, 1/4FNPT female, 1-5V, Conduit, 4ft., 17-4 |
|
|
AST4300 |
AST4300IV0030P4N0000 |
-14.7 to 30 PSI, 1/4 NPT female, 4-20mA, Conduit, 6ft., 17-4 |
|
|
AST4300 |
AST4300K01000P4L0006-SS |
1000 PSI, SAE4 Female Schraeder, 4-20mA, Conduit, 2ft.17-4PH |
|
|
AST4300 |
AST4300KV0420P1P0000-SS |
Contact AST for full description |
|
|
AST4300 |
AST4300KV0420P1P0006-SS |
-14.7 to 420 PSI, SAE 4 w/ Sch, 0.5-4.5V ratio,Conduit, 10ft |
|
|
AST4300 |
AST4300P00200P4M1477-SS |
200 PSI, 1/2MNPT, 4-20mA, Cond, 4ft., 316L, SG, 2X,Sngl Seal |
|
|
AST4300 |
AST4300P00300P4P1000 |
300 PSI, 1/2MNPT, 4-20mA, Conduit, 10ft., 316L |
|
|
AST4300 |
AST4300P00500P3L1000 |
500 PSI, 1/2MNPT, 1-5V, Conduit, 2ft, 316L, |
|
|
AST4300 |
AST4300P00500P4M0000 |
500 PSI, 1/2MNPT, 4-20mA, Conduit, 4ft., 17-4 PH |
|
|
AST4300 |
AST4300P03000P3X1216-SS |
3000PSI, 1/2MNPT, 1-5V, 316L, 20 ft, 22 AWG, SG, Single Seal |
|
|
AST4300 |
AST4300P05000P3X1216-SS |
5000PSI, 1/2MNPT, 1-5V, 316L, 20 ft, 22 AWG, SG, Single Seal |
|
|
AST4300 |
AST4300P10000P3L1000 |
10000 PSI, 1/2MNPT, 1-5V, Conduit, 2ft., 316L |
|
|
AST43LP |
AST43LPA00001P4P1000 |
1 PSI, 1/4MNPT, 4-20mA, Conduit, 10ft., 316L |
|
|
AST43LP |
AST43LPA00005P4L1000 |
5 PSI, 1/4MNPT, 4-20mA, Conduit, Cable, 2ft., 316L |
|
|
AST43LP |
AST43LPA00010PAL1000 |
Contact AST for full description |
|
|
AST43LP |
AST43LPA00350M4N1421-SS |
+/-350 mBar,1/4MNPT,4-20mA,316L,Conduit,6ft.,Bi-directional |
|
|
AST43LP |
AST43LPAA0030PAM1506-SS |
Contact AST for full description |
|
|
AST4400 |
AST4400A00030P4C0000 |
30 PSI, 1/4MNPT, 4-20mA, Cable, 6ft., 17-4 PH |
|
|
AST4400 |
AST4400A00050P4C0000 |
50 PSI, 1/4MNPT, 4-20mA, Cable, 6ft., 17-4 PH |
|
|
AST4400 |
AST4400A00150P4C0000 |
150 PSI, 1/4MNPT, 4-20mA, Cable, 6ft., 17-4 PH |
|
|
AST4400 |
AST4400A00200P4R1000 |
200 PSI, 1/4MNPT, 4-20mA, 6- Pin Bendix , 316L |
|
|
AST4400 |
AST4400C00150B4X1484-EX |
150 BAR,1/4BSP Male,4-20mA, 316L,20 ft Hytrel, Strain Relief |
|
|
AST4400 |
AST4400P00025P3P1000-SS |
25 PSI, 1/2MNPT, 1-5V, Conduit, 10ft., 316L, Single Seal |
|
|
AST4400 |
AST4400P00250P3L1000-SS |
250 PSI, 1/2MNPT, 1-5V, Cable, 2ft., Cond, 316L, Single Seal |
|
|
AST4400 |
AST4400P00300P3R1372-SS |
300 PSI, 1/2MNPT, 1-5V, 6- Pin Bendix , 316L, Single Seal |
|
|
AST4400 |
AST4400P00400B4I1000-SS |
400 BAR, 1/2MNPT, 4-20mA, DIN 43650-A, 316L, Single Seal |
|
|
AST4400 |
AST4400P01500P3L1000-SS |
1500 PSI, 1/2MNPT, 1-5V, Cable, 2ft., Cond,316L, Single Seal |
|
|
AST44LP |
AST44LPA00005P2D1000 |
Contact AST for full description |
|
|
AST44LP |
AST44LPA00060H4Z1000-SS |
60 in H2O, 1/4MNPT, 4-20mA, Deutsch 4Pin, 316L, Single Seal |
|
|
AST44LP |
AST44LPP00069H3P1000-SS |
69 in H2O, 1/2MNPT, 1-5V, Conduit, 10ft., 316L, Single Seal |
|
|
AST44LP |
AST44LPP00100H4P1000-SS |
100 inches H2O, 1/2MNPT, 4-20mA, Cond, 10ft., 316L,Sngl Seal |
|
|
AST4510 |
AST4510I00005P4N1000 |
1/4 FNPT, 5 PSI, 4-20mA, Conduit 6 ft Hytrel, 316L |
|
|
AST4510 |
AST4510I00005P4N1406 |
1/4 FNPT, 5 PSI, 4-20mA, Conduit 6 ft Hytrel, 316L, MOV |
|
|
AST4510 |
AST4510L00005P4X1074-SS |
5 PSI, Front End Cone, 4-20mA, 316L, 25 ft, Single Seal |
|
|
AST4510 |
AST4510L00006P4X1075-SS |
6 PSI, Front End Cone, 4-20mA, 316L, 20ft Cable, Single Seal |
|
|
AST4510 |
AST4510L00010P1X1074-SS |
10 PSI, Front End Cone, 0.5-4.5V ratiometric, 316L, 25ft |
|
|
AST4510 |
AST4510L00010P4X1065-SS |
10 PSI, Front End Cone, 4-20mA, 316L, 50 ft, Single Seal |
|
|
AST4510 |
AST4510L00069H4X1074 |
69 inches, H2O, Front End Cone, 4-20mA, Special, 316L, 25 ft |
|
|
AST4510 |
AST4510L00069H4X1140-SS |
69 inches, H2O, Front End Cone, 4-20mA, Special, 316L, 15ft |
|
|
AST4510 |
AST4510L00069H9X1375 |
Contact AST for full description |
|
|
AST4510 |
AST4510L00208H4X1074-SS |
208 inches H2O, Nose Cone, 4-20mA, 316L, 25 ft, Single Seal |
|
|
AST4520 |
AST4520T00025P4X1459-SS |
25 PSI, G1/2 Male, 4-20mA, 316L, Conduit, 50ft, Single Seal |
|
|
AST4530 |
AST4530I00005P4X9353 |
5 PSI, 1/4 NPT female, 4-20mA, PVDF & PTFE, 25ft Kynar |
|
|
AST4530 |
AST4530I00005P4X9355 |
5 PSI, 1/4 NPT female, 4-20mA, PVDF & PTFE, 75ft Kynar |
|
|
AST4530 |
AST4530I00010P4X9353 |
10 PSI, 1/4 NPT female, 4-20mA, PVDF & PTFE, 25 ft Kynar |
|
|
AST4530 |
AST4530I00020P4X9354 |
20 PSI, 1/4 NPT female, 4-20mA, PVDF & PTFE, 50 ft Kynar |
|
|
AST4530 |
AST4530I00069H4X9353 |
69 inches, H2O, 1/4 FNPT, 4-20mA, PVDF & PTFE, 25ft Kynar |
|
|
AST4530 |
AST4530I00120H4X9354 |
120 inches, H2O, 1/4 NPT female, 4-20mA, Special, PVDF&PTFE |
|
|
AST4530 |
AST4530I00208H4X9353 |
208 inches, H2O, 1/4FNPT, 4-20mA, PVDF & PTFE, 25 ft Kynar |
|
|
AST4530 |
AST4530I00315H4X9354 |
315 inches, H2O, 1/4FNPT, 4-20mA, PVDF & PTFE, 50 ft Kynar |
|
|
AST45PT |
AST45PT3L00005P4X1H065 |
5 PSI, Front Cone, 4-20mA, Cable, 50ft., 316L, |
|
|
AST45PT |
AST45PT3L00050P4X1L050 |
50 PSI, Nose Cone, 4-20mA, Cable, 150ft., 316L, 0 to 70°C, |
|
|
AST45PT |
AST45PT3L00208H4X1H074 |
208 inches, H2O, Front End Cone, 4-20mA, 316L, 25 ft Cable |
|
|
AST45PT |
AST45PT5L00010P4X1H004 |
10 PSI, Nose Cone, 4-20mA, Cable, 35ft., 316L, -18 to 93°C |
|
|
AST45PT |
AST45PT5L00208H4X1H140 |
208 inches, H2O, Nose Cone, 4-20mA, Cable, 15ft., 316L, |
|
|
AST45PT |
AST45PTL00005P4X1356 |
5 PSI, Front End Cone, 4-20mA, 316L, 20 ft Hytrel, 0-50°C |
|
|
AST4600 |
AST4600A00040B4T1000 |
40 BAR, 1/4MNPT, 4-20mA, Conduit 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600A00100P4W2000-Z |
100 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 2m, Inconel 718, |
|
|
AST4600 |
AST4600A00200P4T1000 |
200 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600A00200P4W1000 |
200 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600A00500B4T0000 |
500 BAR, 1/4MNPT, 4-20mA, Conduit, 18AWG, 24 in, 17-4 PH |
|
|
AST4600 |
AST4600A00500P3U1000 |
500 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L, Sealed |
|
|
AST4600 |
AST4600A00600P4U1000 |
600 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600A01000P3T1000 |
1000 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600A01000P3U1000 |
1000 PSI, 1/4MNPT, 1-5V, Conduit, wires 18ga, 48 in, 316L |
|
|
AST4600 |
AST4600A01000P3W1000 |
1000 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600A01500P3U1000 |
1500 PSI, 1/4MNPT, 1-5V, Conduit, wires 18ga, 48 in, 316L |
|
|
AST4600 |
AST4600A01500P3W1000 |
1500 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600A01500P4T1117 |
1500 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L, Snbr |
|
|
AST4600 |
AST4600A01500P4U1000 |
1500 PSI, 1/4MNPT, 4-20mA, Conduit, wires 18ga, 48 in, 316L |
|
|
AST4600 |
AST4600A03000P3U1000 |
3000 PSI, 1/4MNPT, 1-5V, Conduit, wires 18ga, 48 in, 316L |
|
|
AST4600 |
AST4600A03000P4T4000 |
3000 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 24 in, Hastelloy |
|
|
AST4600 |
AST4600A03000P4U4000 |
3000 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 48 in, Hastelloy |
|
|
AST4600 |
AST4600A03000P4X1531 |
3000 PSI, 1/4MNPT, 4-20mA, 316L, 18 AWG wires, 10ft, Snubber |
|
|
AST4600 |
AST4600A03500P4U1000 |
3500 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600A05000P4U1000 |
5000 PSI, 1/4MNPT, 4-20mA, Conduit, wires 18ga, 48 in, 316L |
|
|
AST4600 |
AST4600AG0030P4W1000 |
30 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L, Vented |
|
|
AST4600 |
AST4600AG0050P3U1000 |
50 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L, Vented |
|
|
AST4600 |
AST4600AG0050P3W1000 |
50 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 2m, 316L, Vented |
|
|
AST4600 |
AST4600AG0050P4W1000 |
50 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600AG0069H4T1000 |
69 inches, H2O, 1/4MNPT, 4-20mA, Cond, 24 in, 316L, Vented |
|
|
AST4600 |
AST4600AG0069H4W1000 |
69 in H2O, 1/4MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L, Vented |
|
|
AST4600 |
AST4600AG0300P4U1000 |
300 PSI, 1/4MNPT, 4-20mA, Conduit fitting, wires 18AWG, 48 i |
|
|
AST4600 |
AST4600AV0010K4U1117 |
-1 to 10 kg/cm2,1/4MNPT,4-20mA,Conduit,18AWG,48 in,316,snub |
|
|
AST4600 |
AST4600AV0024B4T1117 |
-1 to 24 BAR, 1/4MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L, |
|
|
AST4600 |
AST4600AV0025P4U1000 |
-14.7 to 25 PSI, 1/4MNPT, 4-20mA, Cond, 48 in, 316L, Vented |
|
|
AST4600 |
AST4600AV0030K4U1117 |
-1 to 30 kg/cm2, 1/4MNPT,4-20mA, Con, 48 316L, 4ft. Snb, |
|
|
AST4600 |
AST4600AV0050P3W1000 |
-14.7 to 50 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600AV0050P4W1000 |
-14.7 to 50 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600AV0150P4U1117 |
-14.7 to 150 PSI,1/4MNPT, 4-20mA,Con, wires 18AWG,48in, Snb |
|
|
AST4600 |
AST4600F03000P4U1000 |
3000 PSI, 7/16-20UNF Male, 4-20mA, Conduit, 18AWG,48 in,316L |
|
|
AST4600 |
AST4600F05000P3U0000 |
5000 PSI, 7/16-20UNF Male, 1-5V, Conduit, 18AWG, 48 in, 17-4 |
|
|
AST4600 |
AST4600F05000P3X0490 |
5000 PSI, 7/16-20UNF Male, 1-5V, 17-4 PH, 18 AWG wires, 10ft |
|
|
AST4600 |
AST4600F15000P6W1000 |
15000 PSI, 7/16-20UNF Male, 1-6V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600I00050B4T1000 |
50 BAR, 1/4 NPT female, 4-20mA, Conduit, 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600I00100P3W1000 |
100 PSI, 1/4 NPT female, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600I00100P4W1000 |
100 PSI, 1/4 NPT female, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600I00200P4W1000 |
200 PSI, 1/4 NPT female, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600I00500P1T1000 |
500 PSI, 1/4 FNPT, 0.5-4.5V ratio, Cond, 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600I00500P3W1000 |
500 PSI, 1/4 FNPT, 1-5V, Conduit, 18AWG, 2m, 316L, Sealed |
|
|
AST4600 |
AST4600I01500P4W1000 |
1500 PSI, 1/4 NPT female, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600I02000P3W1000 |
2000 PSI, 1/4 NPT female, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600I02000P4W1000 |
2000 PSI, 1/4 NPT female, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600I05000P3W1000 |
5000 PSI, 1/4 NPT female, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600I10000P3W1000 |
10000 PSI, 1/4 NPT female, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600IG0050P4T1000 |
50 PSI, 1/4 NPT female, 4-20mA, Conduit, 18AWG, 24 in, 316L, |
|
|
AST4600 |
AST4600IG0300P4T1000 |
300 PSIG, 1/4FNPT, 4-20mA, Cond, 18AWG, 24 in, 316L, Vented |
|
|
AST4600 |
AST4600P00016B4W1000 |
16 BAR, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P00030B4W1000 |
30 BAR, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P00100B4W1000 |
100 BAR, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P00100P3U1000 |
100 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L, Sealed |
|
|
AST4600 |
AST4600P00150P4U1000 |
150 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600P00200B4W1000 |
200 BAR, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P00200P3U1000 |
200 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L, Sealed |
|
|
AST4600 |
AST4600P00200P4T1000 |
200 PSI, 1/2MNPT, 4-20mA, Conduit, wires 18ga, 24 in, 316L |
|
|
AST4600 |
AST4600P00200P4W1000 |
200 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P00300P4T1432 |
300 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316 |
|
|
AST4600 |
AST4600P00350B4W1000 |
350 BAR, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P00500B4W1000 |
500 BAR, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P00500P3T1000 |
500 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600P00500P3W1000 |
500 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P00500P4U1000 |
500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600P00500P4W1000 |
500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P01000P3T1432 |
1000 PSI, 1/2MNPT, 1-5V, Cond, 18AWG, 24 in, 316L, Intern |
|
|
AST4600 |
AST4600P01000P3U1000 |
1000 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600P01000P3X1490 |
1000 PSI, 1/2MNPT, 1-5V, Special, 316L, 18 AWG wires, 10ft |
|
|
AST4600 |
AST4600P01000P4U1000 |
1000 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600P01500P4W1000 |
1500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P01500P4X1490 |
1500 PSI, 1/2MNPT, 4-20mA, 316L, 18 AWG wires, 10ft |
|
|
AST4600 |
AST4600P02000P3T1466 |
2000 PSI,1/2MNPT,1-5V,Conduit, 18AWG, 24in, 316L,1.5X Header |
|
|
AST4600 |
AST4600P02000P3U1000 |
2000 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600P02000P3W1000 |
2000 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P02500P4T1000 |
2500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600P02500P4T1432 |
2500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L,Inter |
|
|
AST4600 |
AST4600P03000P3T1000 |
3000 PSI, 1/2MNPT, 1-5V, Conduit, wires 18ga, 24 in, 316L |
|
|
AST4600 |
AST4600P03000P3W1000 |
3000 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P03000P4T1000 |
3000 PSI, 1/2MNPT, 4-20mA, Conduit fitting, wires 18AWG, 24 |
|
|
AST4600 |
AST4600P03000P4W1000 |
3000 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P03000PAT1000 |
3000 PSI, 1/2MNPT, 10 mV/V, Conduit, 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600P05000P3T1000 |
5000 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 24 in, 316L |
|
|
AST4600 |
AST4600P05000P3U0000 |
5000 PSI, 1/2MNPT, 1-5V, Cond, wires 18ga, 48 in, 17-4 ASCO |
|
|
AST4600 |
AST4600P05000P3U1000 |
5000 PSI, 1/2MNPT, 1-5V, Conduit, wires 18ga, 48 in, 316L |
|
|
AST4600 |
AST4600P05000P4T1000 |
5000 PSI, 1/2MNPT, 4-20mA, Conduit, wires 18AWG, 24in 316L |
|
|
AST4600 |
AST4600P07500P3U1000 |
7500 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600P10000P3W1000 |
10000 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4600 |
AST4600P10000P4T4000 |
10000 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, Hastelloy |
|
|
AST4600 |
AST4600P10000PAT4506 |
10000 PSI, 1/2MNPT, 10 mV/V, Conduit, 18AWG, 24 in,Hastelloy |
|
|
AST4600 |
AST4600PG0005P4T1000 |
5 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L, Vented |
|
|
AST4600 |
AST4600PG0015P4U1000 |
15 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L, Vented |
|
|
AST4600 |
AST4600PG0025P4W0000 |
25 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 2m, 17-4 PH, Vented |
|
|
AST4600 |
AST4600PG0069H3W1000 |
69 in H2O, 1/2MNPT, 1-5V, Conduit, 18AWG, 2m, 316L, Vented |
|
|
AST4600 |
AST4600PG0150P4X1536 |
150 PSI, 1/2MNPT, 4-20mA, 316L, 18 AWG wires, 30ft, Vented |
|
|
AST4600 |
AST4600PG0300P4T1432 |
300 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L, Taper |
|
|
AST4600 |
AST4600PG0300P4U1000 |
300 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L |
|
|
AST4600 |
AST4600PV0100P3U1000 |
-14.7 to 100 PSI,1/2MNPT,1-5V,PGA309,Cond, 18AWG, 48in, 316L |
|
|
AST4600 |
AST4600W15000P4W2000 |
15000 PSI, F250C female, 4-20mA, Conduit, 18AWG, 2m, Inconel |
|
|
AST4600 |
AST4600W20000P3T0000 |
20000 PSI, F250C female, 1-5V, Conduit, 18AWG, 24 in |
|
|
AST4600 |
AST4600X20000P4W0153 |
20000 PSI,4-20mA,Conduit,18AWG,2m,17-4 PH,9/16-18 UNF, 37ø f |
|
|
AST46DS |
AST46DSP05000P321000 |
1/2 MNPT, 1-5V Output, 316L, 5000 PSI, Display |
|
|
AST46DS |
AST46DSP07500P421000 |
1/2" MNPT, 4-20mA, 7500 PSI Sealed, Display, 316L |
|
|
AST46DS |
AST46DSPG0030P424000 |
1/2" MNPT, 4-20mA, 30 PSI Vented, Display, Hastelloy |
|
|
AST46DS |
AST46DSPG0069H421000 |
1/2 MNPT, 4-20mA,316L, 2.5 PSI, Display, Vented |
|
|
AST46HA |
AST46HAA00200P4U1L000 |
200 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 48 in,316L, Sealed |
|
|
AST46HA |
AST46HAA00200P5U1L000 |
200 PSI, 1/4MNPT, 0-10V (3-WIRE), Conduit, 18AWG, 48in, 316L |
|
|
AST46HA |
AST46HAA00300P4X1N490 |
300 PSI, 1/4MNPT, 4-20mA, Special, 316L, 18 AWG wires, 10ft, |
|
|
AST46HA |
AST46HAA00500P2T1N000 |
500 PSI, 1/4MNPT, 0-5V (3-WIRE), Conduit, 18AWG, 24 in, 316L |
|
|
AST46HA |
AST46HAA00500P5T1N000 |
500 PSI, 1/4MNPT, 0-10V (3-WIRE), Conduit, 24in,316L, Sealed |
|
|
AST46HA |
AST46HAA01000P2T1N000 |
1000 PSI, 1/4MNPT, 0-5V (3-WIRE), Conduit, 18AWG,24 in, 316L |
|
|
AST46HA |
AST46HAA01500P3U1N000 |
1500 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L |
|
|
AST46HA |
AST46HAA01500P4X1N490 |
1500 PSI, 1/4MNPT, 4-20mA, Special, 316L, 18 AWG wires, 10ft |
|
|
AST46HA |
AST46HAA03000P3U1000-C |
Contact AST for full description |
|
|
AST46HA |
AST46HAA03000P4U1N000 |
Contact AST for full description |
|
|
AST46HA |
AST46HAA03000P5T1N000 |
3000 PSI, 1/4MNPT, 0-10V (3-WIRE), Conduit, 24in,316L,Sealed |
|
|
AST46HA |
AST46HAA03500P4T1000 |
3500 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L |
|
|
AST46HA |
AST46HAA03500P4T1N000 |
3500 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L |
|
|
AST46HA |
AST46HAA05000P3U1N000 |
5000 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L |
|
|
AST46HA |
AST46HAA05000P4W4H000 |
5000 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 2m, Hastelloy C |
|
|
AST46HA |
AST46HAA05000P5T1N276 |
5000 PSI, 1/4MNPT, 0-10V (3W), Conduit, 18AWG, 24 in, 316L |
|
|
AST46HA |
AST46HAAG0005PGU1N000 |
5 PSI, 1/4MNPT, 1-10V, Conduit, 18AWG, 48 in, 316L, Vented |
|
|
AST46HA |
AST46HAAG0010P3T1N000 |
10 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 24 in, 316L, Vented, |
|
|
AST46HA |
AST46HAAG0030P4U1N000 |
30 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L, Vented |
|
|
AST46HA |
AST46HAAG0050P4U1N000 |
1/4MNPT, 50PSIS, 4-20mA, Conduit 18 AWG 4 ft, 316L ASIC |
|
|
AST46HA |
AST46HAAG0200P4U1N000 |
1/4MNPT, 200PSI, 4-20mA, Conduit 18 AWG 4 ft, 316L ASIC |
|
|
AST46HA |
AST46HAAG0208H3T1N000 |
208 inches, H2O, 1/4MNPT, 1-5V, Conduit, 18AWG, 24 in, 316L |
|
|
AST46HA |
AST46HAAG0300P5T1N276 |
300 PSI, 1/4MNPT, 0-10V (3W), Conduit, 18AWG, 24 in, 316L |
|
|
AST46HA |
AST46HAAG1000P5W1N000 |
1000 PSI, 1/4MNPT, 0-10V (3-WIRE), Conduit, 18AWG, 2m, 316L, |
|
|
AST46HA |
AST46HAI01000P4T1N000 |
1000 PSI, 1/4 NPT female, 4-20mA, Conduit, 18AWG, 24 in, 316 |
|
|
AST46HA |
AST46HAKA4200M1T0000-C |
Contact AST for full description |
|
|
AST46HA |
AST46HAP00200P4U1000 |
Contact AST for full description |
|
|
AST46HA |
AST46HAP00500P4T1N492 |
500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L, 10X |
|
|
AST46HA |
AST46HAP01000P4U1000-C |
Contact AST for full description |
|
|
AST46HA |
AST46HAP01000P4U1N000 |
1/2MNPT, 1000PSIS, 4-20mA, Conduit 18 AWG 4 ft, 316L ASIC |
|
|
AST46HA |
AST46HAP01500P4T1H000 |
1500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L, FM=H |
|
|
AST46HA |
AST46HAP01500P4U1N000 |
1500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L |
|
|
AST46HA |
AST46HAP02000P4T1H000 |
2000 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L,FM=NA |
|
|
AST46HA |
AST46HAP03000P4T1H000 |
3000 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L,FM=Hi |
|
|
AST46HA |
AST46HAP03100P4T1H000 |
3100 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L, FM=H |
|
|
AST46HA |
AST46HAP03500P4T1H000 |
3500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L FM=Hi |
|
|
AST46HA |
AST46HAW20000P4T2N000 |
20000 PSI, F250C, 4-20mA, Conduit, 18AWG, 24 in, Inconel, |
|
|
AST46PT |
AST46PT1A01000P3U1N000 |
1000 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L |
|
|
AST46PT |
AST46PT1P01000PGT1H000 |
1000 PSI, 1/2MNPT, 1-10V, Conduit, 18AWG, 24 in wires, 316L, |
|
|
AST46PT |
AST46PT2A00006B3T1H000 |
6 Bar, 1/4MNPT, 1-5V, Conduit, 18AWG, 24 in, 316L, |
|
|
AST46PT |
AST46PT2A00040B3T1H000 |
40 Bar, 1/4MNPT, 1-5V, Conduit, 18AWG, 24 in, 316L, |
|
|
AST46PT |
AST46PT2A00400B3T1H000 |
400 Bar, 1/4MNPT, 1-5V,Conduit, 18AWG, 24 in, 316L, |
|
|
AST46PT |
AST46PT2A03000P3T1N000 |
3000 PSI, 1/4MNPT, 1-5V, Conduit, 18AWG, 24 in, 316L, |
|
|
AST46PT |
AST46PT2AG0208H3U1N000 |
208in H2O, 1/4MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L, |
|
|
AST46PT |
AST46PT2P00500P3U1N000 |
500 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 48 in, 316L, |
|
|
AST46PT |
AST46PT2P00500P4T1N000 |
500 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, 316L |
|
|
AST46PT |
AST46PT2P05000P4T1N000 |
5000 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 24 in, |
|
|
AST46PT |
AST46PT2W10000P4W0N000 |
10000 PSI, F250C, 4-20mA, Conduit, 2m cable, 17-4 PH, Sealed |
|
|
AST46PT |
AST46PT2W20000P5W1H000 |
20000 PSI, F250C, 0-10V, Conduit, 18AWG, 2m, 316L, |
|
|
AST46PT |
AST46PT4A00500P4U1H000 |
500 PSI, 1/4MNPT, 4-20mA, Conduit, 18AWG, 48 in wires, 316L, |
|
|
AST46PT |
AST46PT4A05000P4U1H000 |
5000 PSI, 1/4MNPT, 4-20mA,Conduit, 18AWG, 48 in wires, 316L, |
|
|
AST46PT |
AST46PT5P00100P4U1N535 |
100 PSI, 1/2MNPT, 4-20mA, Conduit, 18AWG, 48 in, 316L, |
|
|
AST46PT |
AST46PT5P01000P3W1N000 |
1000 PSI, 1/2MNPT, 1-5V, Conduit, 18AWG, 2m, 316L |
|
|
AST4700 |
AST4700A00020PLC0000 |
20 PSI, 1/4MNPT, 0-10V (4-WIRE), Cable, 6ft., 17-4 PH |
|
|
AST4700 |
AST4700A00100PLA0000 |
100 PSI, 1/4MNPT, 0-10V (4-WIRE), Cable, 2ft., 17-4 PH |
|
|
AST4700 |
AST4700A00200BXR0468 |
200 BAR, 1/4MNPT, Special, 6- Pin Bendix , 17-4PH, 0.1-10.1V |
|
|
AST4700 |
AST4700A00300P5A0276 |
Contact AST for full description |
|
|
AST4700 |
AST4700A03000P6R0000 |
3000 PSI, 1/4MNPT, 1-6V, 6- Pin Bendix Connector, 17-4 PH |
|
|
AST4700 |
AST4700B00200P4E0117 |
Contact AST for full description |
|
|
AST4700 |
AST4700FV0009B4D1009 |
-1 to 9 BAR, 7/16-20UNF Male, 4-20mA, Cable, 10ft., 316L, SG |
|
|
AST4700 |
AST4700I03000P2R1000 |
3000 PSI, 1/4 NPT female, 0-5V (3-WIRE), 6- Pin Bendix ,316L |
|
|
AST4700 |
AST4700I10500MKR0000 |
10500 Millibar, 1/4 NPT female, 0-5V (4-WIRE), 6- Pin Bendix |
|
|
AST4710 |
AST4710AA0015P2K1000 |
15 PSIA, 1/4MNPT, 0-5V (3-WIRE), Deutsch DT04-3P, 316L |
|
|
AST4710 |
AST4710AA0200P2R1000 |
Contact AST for full description |
|
|
AST4710 |
AST4710BA0050P2A0000 |
50 PSIA, 1/8MNPT, 0-5V (3-WIRE), Cable, 2ft., 17-4 PH |
|
|
AST4710 |
AST4710BA0050P2E0000 |
50 PSIA, 1/8MNPT, 0-5V, Mini DIN 43650C (8mm), 17-4 PH |
|
|
AST47HP |
AST47HPW20000P4Y0000 |
Contact AST for full description |
|
|
AST47HP |
AST47HPW30000PAG0000 |
30000 PSI, F250C female, 10 mV/V, Molex Connector, 17-4 PH |
|
|
AST47HP |
AST47HPW30000PAX0228 |
30000 PSI, F250C female, 10 mV/V, 17-4, Flex 2 in., 10V exc |
|
|
AST47HP |
AST47HPX10000P5R0524 |
10000 PSI, Special, 0-10V (3-WIRE), 6- Pin Bendix , 17-4 PH |
|
|
AST47HP |
AST47HPX20000P5R0153 |
20000 PSI, 0-10V (3-WIRE), 6- Pin Bendix, 17-4 PH,9/16-18UNF |
|
|
AST47SM |
AST47SMA00350B4X0120 |
350 BAR, 1/4MNPT, 4-20mA, 17-4 PH, 0.1% BFSL, 35ft, SG, Snbr |
|
|
AST47SM |
AST47SMA05000P4D0000 |
5000 PSI, 1/4MNPT, 4-20mA, Cable, 10ft., 17-4 PH |
|
|
AST47SM |
AST47SMC00350B4X0065 |
Contact AST for full description |
|
|
AST47SM |
AST47SMC00350B4Y0461 |
350 BAR, 1/4BSP Male, 4-20mA, M12, 17-4, 2X, 17-4, 0.1%BFSL |
|
|
AST5100 |
AST5100J00005H2Y5000 |
1/8 FNPT, 5 in H2O differential, 0-5V three wire, m12x1 |
|
|
AST5100 |
AST5100J00005H4Y5000 |
1/8 FNPT, 5 in H2O differential, 4-20mA, m12x1 |
|
|
AST5100 |
AST5100J00010H2Y5000 |
1/8 FNPT, 10 in H2O differential, 0-5V three wire, m12x1 |
|
|
AST5100 |
AST5100J00010H4Y5000 |
1/8 FNPT, 10 in H2O differential, 4-20mA, m12x1 |
|
|
AST5100 |
AST5100J00020H2Y5000 |
1/8 FNPT, 20 in H2O differential, 0-5V three wire, m12x1 |
|
|
AST5100 |
AST5100J00020H4Y5000 |
1/8 FNPT, 20 in H2O differential, 4-20mA, m12x1 |
|
|
AST5100 |
AST5100J00050H2Y5000 |
1/8 FNPT, 50 in H2O differential, 0-5V, m12x1 |
|
|
AST5100 |
AST5100J00050H4Y5000 |
1/8 FNPT, 50 in H2O differential, 4-20mA, m12x1 |
|
|
AST5100 |
AST5100J00200H4Y5000 |
1/8 FNPT, 200 in H2O differential, 4-20mA, m12x1 |
|
|
传感器/变送器/仪表按厂商品牌选用指南
应变片
