APAQ-H is a family of multirange 2-wire temperature transmitters for Pt100 or Thermocouple input. Designed for highest reliability and excellent industrial performance. The 攍ow profile?housing is extremely durable and facilitates easy connections and adjustments.

Catalog Sheet>>>
Data sheet APAQ-HCF/-HCFX>>>
Data sheet APAQ-HRF/-HRFX>>>
User instruction>>>

　

  APAQ-3HPT is a multirange 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-10 V output.
  Main applications are in the HVAC sector, where the control systems often require 0-10 V input signals.
  APAQ-3HPT is designed for high reliability and good industrial performance. The 搇ow profile?housing is extremely durable and facilitates easy connections and adjustments.

Catalog Sheet>>>
User instruction>>>
　

5 Years Warranty

  C201 is an analog, non-isolated, easy-to-use 2-wire transmitter for Pt100 input.   Configuration is made in seconds with the user friendly software, ConSoft. No external power supply required for configuration.
   C201 is designed for Pt100 in
3-wire connection according to different standards.

Catalog Sheet>>>
Complete data sheet>>>
User instruction>>>
　

 ^MINIPAQ-HLP is a basic, non-isolated, easy-to-use 2-wire transmitter.
 Reduced hight simplifies mounting in low
connection heads.
 Configuration is made in seconds with the user friendly Windows software, ^MINIPAQ Soft. No external power supply required for configuration.
 ^MINIPAQ-HLP is programmable for RTD抯 in 3- and 4-wire connection according to different standards as well as for 11 T/C types.
 Useful error correction functions improve the accuracy.

Catalog Sheet>>>
Complete data sheet>>>
User instruction>>>
　

5 Years Warranty

 IPAQ-H/-HX are universal, isolated 2-wire transmitters for temperature and other measurement applications. They combine competitive pricing, functionality and simple configuration. Useful error correction functions improve the accuracy.
　

Catalog Sheet>>>
Complete data sheet>>>
User instruction>>>
　

 IPAQ-H^PLUS offers outstanding accuracy, stability and high isolation combined with short response time and extended functionality.
 It is a universal 2-wire transmitter for high-demand temperature and process measurement applications.
 Error corrections and sensor diagnostics improve the measurement accuracy and safety.

Catalog Sheet>>>
Complete data sheet>>>
User instruction>>>
　

5 Years Warranty

 MESO-H/-HX are smart and universal
2-wire in-head transmitters for temperature and other measurement applications. MESO-H/-HX are fully
HART-compatible, with communication through the HART protocol.

Catalog Sheet>>>
Complete data sheet>>>
User instruction>>>
　

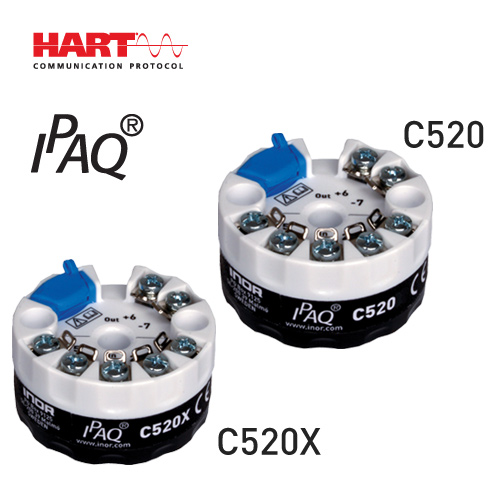

C520N (SIL-classified) are universal, isolated, dual-input temperature transmitters, approved for Non-Incendive use in Ex-Zone 2.
C520X and C520XS (SIL-classified) are Intrinsically Safe versions for use in Ex-Zone 0, 1 and 2.
The transmitters are programmable directly from PC or via the HART communication.
Typical characteristics are the high accuracy, stability and reliability combined with a robust housing.
The double inputs enable new safety features such as Sensor Backup and Sensor Drift Monitoring.

Catalog Sheet
Complete data sheet>>>
User instruction>>>
SIL Safety Manual >>>
SIL Declaration of Conformity >>>

 APAQ-LR is a multirange 2-wire temperature transmitter for Pt100 input.  APAQ-LC is adjustable for 5 different thermocouple types. APAQ-LR/-LC are designed for highest reliability and excellent industrial performance.

Catalog Sheet>>>

Complete data sheet>>>

User instruction>>>

5 Years Warranty
　

  APAQ-3LPT is a multirange 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-10 V output.
  Main applications are in the HVAC sector, where the control systems often require 0-10 V input signals.
  APAQ-3LPT is designed for high reliability and good industrial performance.

Catalog Sheet>>>

User instruction>>>

5 Years Warranty
　

 ^MINIPAQ-L is a basic, non-isolated, easy-to-use 2-wire transmitter. Configuration is made in seconds with the user friendly Windows software, ^MINIPAQ Soft. No external power supply required for configuration. ^MINIPAQ-L is programmable for RTD聮s in 3- and 4-wire connection according to different standards as well as for 11 T/C types. Useful error correction functions improve the

Catalog Sheet>>>

User instruction>>>
　

5 Years Warranty

 IPAQ-L/-LX are universal, isolated 2-wire transmitters for temperature and other measurement applications. They combine competitive pricing, functionality and simple configuration.
 Useful error correction functions improve the accuracy.

Catalog Sheet>>>

Complete data sheet>>>

User instruction>>>
　

5 Years Warranty
　

 IPAQ-L(mA) is an active isolation transmitter for mA input signals with a 4-20 mA output in a 2-wire connection. It is suitable for direct connection to the input modules of a control system.
 Thanks to the programmable input range and the low input impedance, IPAQ-L(mA) meets almost any need for current signal isolation and load amplification.

Catalog Sheet>>>

User instruction>>>

5 Years Warranty

 IPAQ-21LX/-22LX are 1- and 2-channel, universal, isolated 2-wire transmitters for Ex-applications.
 No zener barriers or Ex power supplies are needed, which reduces costs for purchase, design and maintenance.
 IPAQ-21L/-22L are 1- and 2-channel version for non-Ex-applications.

Catalog Sheet>>>

User instruction>>>
　

5 Years Warranty

 IPAQ-L^PLUS offers outstanding accuracy, stability and high isolation combined with short response time and extended functionality.
 It is a universal 2-wire transmitter for high-demand temperature and process measurement applications.
 Error corrections and sensor diagnostics improve the measurement accuracy and safety.

Catalog Sheet>>>

Complete data sheet>>>

User instruction>>>

5 Years Warranty

 MESO-L is a smart and universal 2-wire transmitter for temperature and other measurement applications. MESO-L is fully HART-compatible, with communication through the HART protocol.

Catalog Sheet>>>

Complete data sheet>>>

User instruction>>>
　

5 Years Warranty

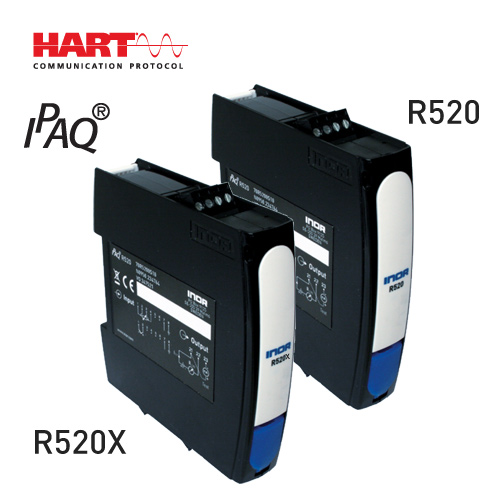

 R520 and R520S (SIL-classified) are universal, isolated, dual-input temperature transmitters, approved for Non-Incendive use in Ex-Zone 2.
R520X and R520XS (SIL-classified) are Intrinsically Safe versions for use in Ex-Zone 1 and 2.
The transmitters are programmable directly from PC or via the HART communication.
Typical characteristics are the high accuracy, stability and reliability combined with a robust housing.
The double inputs enable new safety features such as Sensor Backup and Sensor Drift Monitoring.

Catalog Sheet
Complete data sheet
User instruction
SIL Safety Manual >>>
SIL Declaration of Conformity >>>

　

5 Years Warranty
　

 DB537 is designed for input signal from potentiometers and has an adjustable measuring range from 100 ohm up to 100 kohm. The unit has a very short response time, which makes it ideal for valve and actuator feed-back. DB537 provides an output signal, 4-20 mA, that is easily matched to the end positions of a valve or an actuator.

Catalog Sheet>>>
User instruction>>>

5 Years Warranty

 IPAQ-4L is a fully universal and programmable 4-wire (separately powered) transmitter. The high isolation provides safe and problem free measurements. Offering both current and voltage output, IPAQ-4L meets any process requirements. Designed for wall and DIN-rail mounting.

Catalog Sheet>>>

Complete data sheet>>>

User instruction>>>
　

5 Years Warranty

 DA576 is designed for input signal from one or two Pt100 sensors in 4-wire connection and output in mA or V. Thanks to a unique design DA576 provides an outstanding accuracy of <0.03 掳C /<0.05 掳F in both absolute and differential temperature measurement. DA576 can be calibrated for measurement spans down to 5 掳C /9 掳F, e.g. -2.5 to +2.5 掳C. Each unit is delivered with a calibration certificate. The ideal transmitter for measurement of power/energy in hot water systems and efficiency in cooling systems.

Catalog Sheet>>>

Complete data sheet>>>

User instruction>>>

5 Years Warranty

  LED-W11 & LCD-W11 are digital indicators for installation directly in a
4-20 mA loop without need for external power.
  LED-W11 is equipped with bright, easy-to-read LED digits, and LCD-W11 comes with a high-contrast LCD display.
  Both indicators are designed for field mounting on wall, pipe or DIN rail and have a rugged and splash proof housing.
  The scale is easily programmable without reference signal.
  A temperature transmitter can be integrated for direct sensor input.

Catalog Sheet>>>

Complete data sheet LED>>>

Complete data sheet LCD>>>

User instruction>>>
　

  LED-W11X is an ATEX-approved, Intrinsically Safe 4-digit indicator for installation directly in a 4-20 mA loop without need for external power.

Catalog Sheet>>>

User instruction>>>
　

 LCD-W12 is a digital, high-precision LCD indicator for local measurement ofprocess values and sensor failure monitoring.
 It connects directly to the communication port of our PROFIBUS transmitter, ^PROFIPAQ-H. It can be connected and disconnected at any time.
 LCD-W12 communicates digitally with the transmitters and offers unlimitedaccuracy as well as temperature and long-term stability.
  There is no need for scale adjustments or calibration of the indicator. LCD-W12 is designed for fi eld mounting on wall, pipe or DIN rail and hasa rugged and splash proof housing.

Catalog Sheet>>>
User instruction>>>
　

  LCD-H20 is a digital indicator for installation directly in a 4-20 mA loop without need for external power.
  LCD-H20 is designed for in-head mounting in a sensor connection head with glass window.
  The indicator is equipped with high-contrast, easy-to-read LCD digits.
  The scale is easily programmable, without reference signal, by 3 pushbuttons for any values between -1999 and 9999.
  As an option, LCD-H20 can be delivered mounted in a connection head.


Catalog Sheet>>>

User instruction>>>

5 Years Warranty

  SR335 is designed for industrial temperature monitoring with Pt100 sensors in 2- or 3-wire connection.
  Two output relays with individually adjustable trip functions are available.
  LED’s in the front indicate alarm state and correct power supply.

Catalog Sheet>>>
User instruction >>>

  SR360 is designed for monitoring current and voltage signals in the process industry.
  Two output relays with individually adjustable trip functions are available.
  LED’s in the front indicate alarm state and correct power supply.

Catalog Sheet>>>
User instruction>>>

  SR535 is designed for monitoring Pt100 signals in the process industry. The unit gives alarm functions for either increasing or decreasing temperatures and for certain error states.
  SR535 provides a temperature linear output signal, 4-20 mA, corresponding to the measurement range.

Catalog Sheet>>>

Complete data sheet>>>

User instruction>>>

  SR560 is designed for monitoring mA or V signals in the process industry. The two channels are fully independent.
  The SR560 is specially designed for reliable safety triggering without false alarms.
  High configuration flexibility allows for adaptation to required alarm functions.
　

Catalog Sheet>>>

Complete data sheet>>>

User instruction>>>
　

  ME544 has four galvanically isolated supply channels for 2-wire transmitters.
  The output voltage for each channel is 25 VDC.
  Each channel is short-circuit protected and has a current limitation to protect measurement circuits from damage caused by short circuits or other faults.
  ME544 cuts the risk for measurement errors caused by earth potential differences with a number of 2-wire transmitters in the same measurement system.

Catalog Sheet>>>

　

5 Years Warranty

  IsoPAQ-11L and IsoPAQ-12L are 1- and 2-channel loop powered isolators used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.
  The 2-channel version, IsoPAQ-12L offers a very cost effective alternative combined with a high-density mounting.
  The isolators need no power supply, which contributes to reduced installation costs compared to isolation transmitters.
  The high reliability ensures a safe system operation and low maintenance costs.

Catalog sheet>>>
User instruction>>>

Ordering information


　

  IsoPAQ-110L is a loop powered isolator, available in 1- and 2-channel versions. It is used for electrical isolation of
0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.
  The 2-channel version, IsoPAQ-110L offers a very cost effective alternative combined with a high-density mounting.
  The isolator need no power supply, which contributes to reduced installation costs compared to Isolation Transmitters.
  The high reliability ensures a safe system operation and low maintenance costs.
　

Catalog sheet>>>
User instruction>>>

Ordering information



　

 IsoPAQ-21L and IsoPAQ-22L are 1- and 2-channel loop powered isolators used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.
 The isolators need no power supply, which contributes to reduced installation costs compared to isolation transmitters.
 The high isolation level of 4 kV provides an effective protection for downstream devices.
 The 2-channel version, IsoPAQ-22L offers a very cost effective alternative combined with a high-density mounting.
 The high reliability and the Protective Separation are additional features that ensure a safe system operation.
　

Catalog sheet>>>
User instruction>>>
　

Ordering information

      5 Years Warranty

  IsoPAQ-110R is a Transmitter Repeater for powering and isolation of a non-isolated 2-wire transmitter.
  Thanks to the isolation, the 4-20 mA transmitter signal can be connected to a grounded input circuit of a control system without risk for measurement errors due to ground loops.
  The Transmitter Repeater needs no power supply, which contributes to reduced installation costs.
  The high reliability ensures a safe system operation and low maintenance costs.
　

Catalog sheet>>>
User instruction>>>

Ordering information



　

 IPAQ-L(mA) is an active isolation transmitter for mA input signals with a 4-20 mA output in a 2-wire connection. It is suitable for direct connection to the input modules of a control system.
 Thanks to the programmable input range and the low input impedance, IPAQ-L(mA) meets almost any need for current signal isolation and load amplification.
　

Catalog Sheet>>>
User instruction>>>

Ordering information


　

    5 Years Warranty

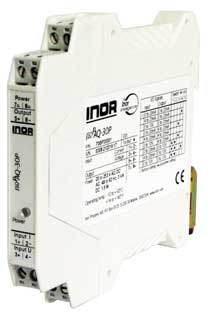

 The Isolation Transmitter IsoPAQ-30P is a low-cost transmitter used for basic isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals.
 Due to the calibrated range selection of the input/output signals and the universal power supply, IsoPAQ-30P provides excellent flexibility and low storage and installation costs.
 The high reliability ensures a safe system operation and low maintenance costs.
　

Catalog sheet>>>
User instruction>>>

Ordering information

      5 Years Warranty

 The Isolation Signal Splitter IsoPAQ-32P is used for isolation and conversion of 0-20 mA, 4-20 mA, 0-5 V and 0-10 V standard signals. The input signal and the two output signals can be selected in any combination. The signal combination is decided by the Part No.
 The high accuracy and reliability and the Protective Separation are further features, which ensure a safe system operation.
　

Catalog sheet>>>
User instruction>>>

      5 Years Warranty

  The Isolation Transmitter IsoPAQ-131P is used for isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals.
  For applications where normally one signal combination only is used,
IsoPAQ-131P offers a cost-effective alternative.
  The high reliability and the Protective Separation are further features, which ensure a safe system operation.
　

Catalog sheet>>>
User instruction>>>

Ordering information


　

      5 Years Warranty

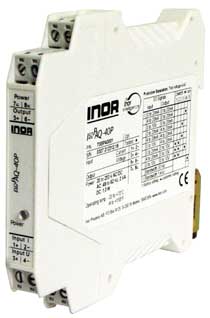

 The Isolation Transmitter IsoPAQ-40P is used for high-precision isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals.
  Due to the calibrated range selection of the input/output signals, the selectable bandwidth and the universal power supply, IsoPAQ-40P provides excellent flexibility and low storage and installation costs.
  The high reliability and the Protective Separation are additional features that ensure a safe system operation.

Catalog sheet>>>
User instruction>>>


Ordering information

      5 Years Warranty

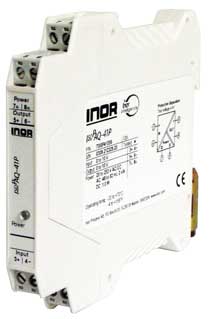

 The Isolation Transmitter IsoPAQ-41P is used for high-precision isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals.
  For applications where normally only one signal combination is used, IsoPAQ-41P offers a cost-effective alternative.
  The high reliability and the Protective Separation are additional features that ensure a safe system operation.


Catalog sheet>>>
User instruction>>>
　

Ordering information


　

      5 Years Warranty

 The Isolation Transmitter IsoPAQ-51P is used for high-precision isolation of 0(4)-20 mA unipolar signals.
  For applications where normally only one signal combination is used, IsoPAQ-51P offers a cost-effective alternative.
  The zero and span adjustments allow for a fine-tuning of the measurement loop.
  The high reliability and the Protective Separation are additional features that ensure a safe system operation.
　

Ordering information

Catalog sheet>>>
User instruction>>>
　

      5 Years Warranty

 DA561 is specially designed for signal isolation and load amplification in the process industry.
 A 2-wire transmitter can be connected to and supplied from the isolation amplifier.
 DA561 maintains a high isolation level (1,5 kV) between input and output.
 Current and voltage can be chosen independently as input and output signals.
　

Catalog Sheet>>>
Complete data sheet>>>
User instruction>>>

Ordering information

      5 Years Warranty

 DA562 is specially designed for signal isolation and load amplification in the process industry.
 Two independent and galvanically isolated channels allow for high-density mounting.
 DA562 maintains a high isolation level (1,5 kV) between input, output and the two channels.
 Current and voltage can be chosen independently as input and output signals.

Catalog Sheet>>>
Complete data sheet>>>
User instruction>>>

Ordering information

      5 Years Warranty

  The Isolation Transmitter IsoPAQ-161P is mainly used for isolation of bipolar signals, such as 卤20 mA, 卤10 mA, 卤10 V, 卤5 V, and conversion into unipolar output signals.
  For applications where normally one signal combination only is used, IsoPAQ-161P offers a cost-effective alternative.
  The high reliability and the Protective Separation are further features, which ensure a safe system operation.

Catalog sheet>>>
User instruction>>>
　

Ordering information


　

      5 Years Warranty

 The Isolation Transmitter IsoPAQ-60P is used for high-precision isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V bipolar and unipolar signals.
  Due to the extensive range selection with a choice of 144 input/output signal combinations, the selectable bandwidth and the universal power supply, IsoPAQ-60P is a true universal transmitter for any demanding isolation application.
  The zero and span adjustments allow for a fine-tuning of the measurement loop.
  The high reliability and the Protective Separation are additional features that ensure a safe system operation.
　

Catalog sheet>>>
User instruction>>>

Ordering information


　

      5 Years Warranty

 The Isolation Transmitter IsoPAQ-70S is used for isolation and conversion of unipolar shunt voltages into standard mA/V signal.
  Due to the calibrated range selection and the universal power supply, IsoPAQ-70S provides excellent flexibility and low storage and installation costs.
  The high reliability ensures a safe system operation and low maintenance costs.

Catalog sheet>>>
User instruction>>>

Ordering information

      5 Years Warranty

 The Isolation Transmitter IsoPAQ-80S is used for high-precision isolation and conversion of bipolar and unipolar shunt voltages into standard mA/V signals.
  Due to the extensive range selection, the selectable bandwidth and the universal power supply, IsoPAQ-80S is a true universal transmitter for any demanding shunt voltage isolation application.
  The zero and span adjustments allow for a fine-tuning of the measurement loop.
  The high reliability and the Protective Separation are additional features that ensure a safe system operation.

Catalog sheet>>>
User instruction>>>

Ordering information


　

      5 Years Warranty

 IPAQ-4L is a fully universal and programmable 4-wire (separately powered) transmitter. The high isolation provides safe and problem free measurements. Offering both current and voltage output, IPAQ-4L meets any process requirements. Designed for wall and DIN-rail mounting.
　

Catalog Sheet>>>
Complete data sheet>>>
User instruction>>>

Ordering information


　

ICON

Transmitter Configuration Kit with USB Communication

ICON is a complete kit for PC configuration of all transmitters in the INOR product line, except for the Meso transmitters.
The kit contains the INOR USB Interface, transmitter cables and the new software, ConSoft.
Communication with the connected transmitter is established automatically, without any problems to match the PC communication port to the software.
　

Catalog sheet ICON >>>
User instruction ICON >>>
Installation guide ICON >>>

Ordering information:
