德国MICRO-HYBRID公司热释电探测器

特点：Micro-Hybrid的热释电探测器是基于PZT薄膜的。灵敏度达到1,100,000V/W,探测率达到5.5x108cmxHz1/2/W，这都源于低噪声的PZT材料和特别的运放。MEMS
PZT
探测器有极低噪声和对温度不敏感性，不像钽酸锂热释电探测器，不需要附加的热补偿晶体。可用的有单，双和四通道探测器可以选择
|
型号 |
通道数 |
模式 |
供电 |
优化频率Hz |
响应率（v/w） |
探测率D* |
敏感面积mm |
应用 |
|
PS1X1C2-A-S1.5 |
1 |
电流 |
正负 |
2-55 |
175000 |
2.8x10^8 |
1.5x1.5 |
气体分析 |
|
PS1x1C8-A-S1.5 |
1 |
电流 |
正负 |
1-12 |
1100000 |
5.5x10^8 |
1.5x1.5 |
气体分析 |
|
PS1x3C10-A-S1.5 |
1 |
电流 |
正负 |
1-100 |
2000 |
2.2x10^8 |
3.7直径 |
火焰探测 |
|
PS1x3C2-A-S1.5 |
1 |
电流 |
正负 |
1-25 |
275000 |
4.32x10^8 |
3.7直径 |
火焰探测 |
|
PS2x4V1-A-S1.5 |
1 |
电压 |
正 |
0.2-3 |
950 |
2.09x10^8 |
1.5x1.5 |
气体分析 |
|
PS2x1C2-A-S1.5 |
2 |
电流 |
正负 |
2-55 |
175000 |
2.8x10^8 |
1.5x1.5 |
气体分析 |
|
PS2x1C8-A-S1.5 |
2 |
电流 |
正负 |
1-12 |
1100000 |
5.5x10^8 |
1.5x1.5 |
气体分析 |
|
PS2x4V1-A-S1.5 |
2 |
电压 |
正 |
0.2-3 |
950 |
2.09x10^8 |
1.5x1.5 |
气体分析 |
|
PS4x2C1-A-S1.5 |
4 |
电流 |
正负 |
3-25 |
125000 |
1.7x10^8 |
1.4x1.4 |
气体分析 |
不同的窗口和红外过滤片可用的，请咨询。另有探测器评估工具可咨询。
德国MICRO-HYBRID公司热电堆探测器

特点：Micro-Hybrid的热电堆探测器由最大200组热电偶组成。有世界最好的探测率直到7.2x10^8cmxHz1/2/W和灵敏度直到295V/W.而且我们的高温热电堆允许我们的探测器工作在极端环境中。温度范围-35℃
直到180℃和高温中。
|
型号 |
通道数 |
响应率 |
探测率 |
敏感面积 |
运行温度 |
封装 |
应用 |
|
TS1x200B-A-D3.55 |
1 |
100 |
3.6x10^8 |
3.55直径 |
-20 - +70 |
TO-39 |
气体分析 |
|
TS1x200B-B-D2.4 |
1 |
100 |
3.6x10^8 |
2.4直径 |
-20 - +70 |
TO-46 |
气体分析 |
|
TS1x80B-A-D0.48 |
1 |
295 |
7.2x10^8 |
0.48直径 |
-20 - +85 |
TO-39 |
温度测量 |
|
TS1x80-A-D0.75-180 |
1 |
295 |
7.2x10^8 |
0.75直径 |
-20 - +85 |
TO-39 |
温度测量 |
|
TS2x200B-A-S1.5 |
1 |
295 |
7.2x10^8 |
0.75直径 |
-20 - +180 |
TO-39 |
气体分析/温度测量 |
|
TS2x200B-A-S1.5 |
2 |
100 |
3.6x10^8 |
1.5x1.5 |
-20 - +70 |
TO-39 |
气体分析 |
|
TS4x200B-A-S1.5 |
4 |
100 |
3.6x10^8 |
1.5x1.5 |
-20 - +70 |
TO-39 |
气体分析 |
|
TS4xQ200B-A-S1.5 |
4 |
80 |
2.95x10^8 |
1.5x1.5 |
-20 - +70 |
TO-39 |
气体分析 |
不同的窗口和红外过滤片可用的，请咨询。另有探测器评估工具可咨询。
德国Micro-Hybrid标准可选滤光片
|
中心波长nm |
中心波长公差nm |
半波带宽nm |
半波带宽公差nm |
透过率 |
代码 |
应用 |
|
4300 |
+/-43 |
90 |
+/-20 |
TMAX>85% |
C1 |
火焰探测 |
|
4000 |
+/-40 |
80 |
+/-15 |
TMAX>70% |
D1 |
参考 |
|
4265 |
+/-28 |
76 |
+/-10 |
TMAX>70% |
D2 |
参考 |
|
3910 |
+/-25 |
120 |
+/-10 |
TMAX>70% |
E1 |
CO2 |
|
4650 |
+/-40 |
180 |
+/-20 |
TMAX>70% |
F1 |
CO |
|
3450 |
+/-40 |
140 |
+/-15 |
TMAX>70% |
G1 |
HC |
|
3400 |
+/-20 |
140 |
+/-20 |
TMAX>80% |
G2 |
CH4&HC |
|
3255 |
+/-40 |
80 |
+/-20 |
TMAX>70% |
G3 |
HC |
|
7300 |
+/-50 |
180 |
+/-20 |
TMAX>80% |
H1 |
SO2 |
|
6583 |
+/-66 |
198 |
+/-33 |
TMAX>70% |
I1 |
H20 |
其他滤光片和定制滤光片可咨询。
德国Micro-Hybrid评估工具
 气体分析评估工具 探测器独立评估工具 光源评估工具 |
|

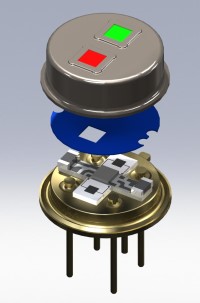

Pyroelectric Sensor / Detector
|
Micro-Hybrid Electronic
GmbH produces high performance
pyroelectric detectors as well
as thermopile infrared
detectors IR sources. The
pyroelectric detectors are
available in voltage and in
current mode, packaged in a
TO-39 housing. The current mode
is available with various
amplification gains. The
Micro-Hybrid pyroelectric
detectors feature:
-
1.4um thick pyroelectric
film with low thermal mass.
-
Thermal time constant almost
10 times faster than
traditional lithium
tantalate pyroelectric
detectors.
-
Low sensitivity to
microphonics.
-
High temperature packaging
option good up to 180?C /
356?F.
These new pyroelectric detectors
are available
in high temperature packaging
with support electronics for use
up to 180?C / 356?F. Micro-Hybrid
is able to offer all of their IR
components, thermopiles,
pyroelectric detectors and IR
sources in this high temperature
packaging.
Applications
include NDIR gas sensing and
flame detection products. The
high temperature versions are
for those applications requiring
sterilization (medical),
industrial measurement, oil and
gas exploration and aerospace
applications.
|
 |
Micro-Hybrid
GmbH is certified to TS 16949:2009 and
ISO 9001:2008. Copies of these
certifications are under Technical
Notes. These certifications are a
reflection of their commitment to
quality and product improvement.
|
Applications
include:
Fire
& Flame Detection
Gas analysis for Industrial and Medical
Applications
Explosion detection
Non-contact temperature measurement
Spectrometers
Process temperature monitoring
Radiometers
Analytical Instruments
Each channel of the
pyroelectric detector is fitted to the
application by using an infrared filter or
window. Micro-Hybrid has a broad selection
of Standard Filters and Windows for these
applications. Custom Filters and windows are
also available.
Application Notes:
IR Sources for Pyroelectric and Lead
Selenide (PbSe) Detectors |
|
RELATED
PRODUCTS |
|
Infrared
Filters
Infrared Pulsed IR Sources |
|
|
Part
Number |
Channels |
Detector Size
mm |
Aperture Size
mm |
Voltage or
Current Mode |
Amplifier |
Low Microphonics |
Signal Frequency Range Hz |
AC Responsivity
V/W |
Detectivity
*10^8/cmHz1/2W |
Package |
| Single
Element |
PS1x4V1- (Pyropile) |
1 |
1.1x1.1 |
1.5x1.5 |
V |
JFET |
Yes |
0.2-3 |
950 |
2.1 |
TO39 |
|
PS1x1C2- |
1 |
0.8x0.8 |
1.5x1.5 |
C |
CMOS |
Yes |
2-55 |
175,000 |
2.8 |
TO39 |
|
PS1x1C8- |
1 |
0.8x0.8 |
1.5x1.5 |
C |
CMOS |
Yes |
1-12 |
1,110,000 |
5.87 |
TO39 |
PS1x1U2-
(C Mode - PIns match voltage mode) |
1 |
0.8x0.8 |
1.5x1.5 |
C |
CMOS |
YES |
2-55 |
175,000
|
2.8 |
TO39 |
| Single
Element - Flame Detection
|
PS1x3C2- |
1 |
1.65x1.65 |
3.7 Dia |
C |
CMOS |
Yes |
1-25 |
275,000 |
4.32 |
TO39 |
|
PS1x3C10- |
1 |
1.65x1.65 |
3.7 Dia |
C |
CMOS |
Yes |
1-100 |
2,000 |
2.2 |
TO39 |
| Multi
Element Detectors |
PS2x4V1- (Pyropile) |
2 |
1.1x1.1 |
1.5x1.5 |
V |
JFET |
Yes |
0.2-3 |
950 |
2.1 |
TO39 |
|
PS2x1C2- |
2 |
0.8x0.8 |
1.5x1.5 |
C |
OpAmp |
Yes |
2-55 |
175,000 |
2.8 |
TO39 |
PS2x1U2-
(C Mode - Pins match Voltage mode)
|
2 |
0.8x0.8 |
1.5x1.5 |
C |
OpAmp |
Yes |
2-55 |
175,000 |
2.8 |
TO39 |
|
PS2x1C8- |
2 |
0.8x0.8 |
1.5x1.5 |
C |
OpAmp |
Yes |
1-12 |
1,100,000 |
5.87 |
TO39 |
|
PS4x2C1 |
4 |
0.7x0.33 |
1.4x1.4 |
C |
OpAmp |
Yes |
3-25 |
125,000 |
1.7 |
TO39 |
|
PS4x4V1- (Pyropile) |
4 |
1.1x1.1 |
1.5x1.5 |
V |
JFET |
Yes |
0.2-3 |
950 |
2.1 |
TO39 |
| High
Temperature - 180°C
Operation |
|
TS2x80B-A-D0.75- (Thermopile) |
2 |
Ø0.5 |
Ø0.75 |
|
|
|
|
|
7.2
|
TO39
|
|

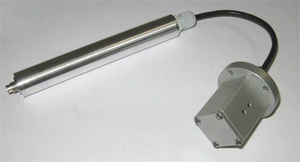

High Temperature
Gas & Liquid Measurement
Module - Sterilization Temperature Resistant |
|
TS1x80X-HT |
1 |
High Temperature Gas & Liquid
Measurement (CO2, etc.) |
|
Ts2x180X-HT |
2 |
High Temperature Gas & Liquid
Measurement (CO2, etc.) |
|
Evaluation Kit |
Evaluation Kit |
2 & 4 Channel |
For evaluating thermopile &
pyroelectric detectors and IR Sources |
|
- Easy way to evaluate sensors and
detectors without developing
electrical circuit and software
- Optimizes operating parameters
for each specific usage
- Evaluation of all components
made easy: a fast and simple process
- No expensive samples for testing
needed
|
Type |
Application |
Comment |
Datasheets |
|
Source Kit |
NDIR-Gasanalysis |
power consumption selected only by
jumper; 3
3V chopper signal is necessary |
PDF |
|
Detector Kit |
NDIR-Gasanalysis |
USB interface with driver and
software; digital and analogue
outputs |
PDF |
|
Evaluation Kit |
NDIR-Gasanalysis |
USB interface with driver and
software; source power adjustable by
software; plus a source
a detector and an adaptable measure
chamber for NDIR gas analysis |
PDF |
- Low temperature dependence
- Low microphonic effect
- Low noise voltage behavior
No additional components
for thermal compensation needed
Sort the product by their category
values simply by clicking on the desired
table column
We manufacture
compatible IR sources. Choose your required
components from one source:
IR Sources
|
Type |
Channels |
Mode |
Supply |
Optimal Freq.[Hz] |
Responsitivity [V/W] |
D* [cmHz½/W] |
Aperture [mm²] |
Application |
|
|
|
|
|
|
|
|
|
|
|
PS1x1C2-A-S1.5 |
1 |
Current |
Bipolar |
2 … 55 |
175000 |
2.8x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS1x1C6-A-S1.5 |
1 |
Current |
Bipolar |
2 … 16 |
550000 |
4.4x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS1x1C8-A-S1.5 |
1 |
Current |
Bipolar |
1 … 12 |
1100000 |
5.5x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS1x1U2-A-S1.5 |
1 |
Current |
Unipolar |
2 … 55 |
175000 |
2.8x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS1x1U6-A-S1.5 |
1 |
Current |
Unipolar |
2 … 16 |
550000 |
4.4x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS1x1U8-A-S1.5 |
1 |
Current |
Unipolar |
1 … 12 |
1100000 |
5.5x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS1x3C10-A-D3.7 |
1 |
Current |
Bipolar |
1 … 100 |
2000 |
2.2x10^8 |
3.7 dia |
Flamedetection |
|
PS1x3C2-A-D3.7 |
1 |
Current |
Bipolar |
1 … 25 |
275000 |
4.32x10^8 |
3.7 dia |
Flamedetection |
|
PS1x3C4-A-D3.7 |
1 |
Current |
Bipolar |
1 … 33 |
22000 |
2.97x10^8 |
3.7 dia |
Flamedetection |
|
PS1x3U10-A-D3.7 |
1 |
Current |
Unipolar |
1 … 100 |
2000 |
2.2x10^8 |
3.7 dia |
Flamedetection |
|
PS1x3U2-A-D3.7 |
1 |
Current |
Unipolar |
1 … 25 |
275000 |
4.32x10^8 |
3.7 dia |
Flamedetection |
|
PS1x3U4-A-D3.7 |
1 |
Current |
Unipolar |
1 … 33 |
22000 |
2.97x10^8 |
3.7 dia |
Flamedetection |
|
PS1x4V1-A-S1.5 |
1 |
Voltage |
Unipolar |
0.2 … 3 |
950 |
2.09x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS2x1C2-A-S1.5 |
2 |
Current |
Bipolar |
2 … 55 |
175000 |
2.8x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS2x1C6-A-S1.5 |
2 |
Current |
Bipolar |
2 … 16 |
550000 |
4.4x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS2x1C8-A-S1.5 |
2 |
Current |
Bipolar |
1 … 12 |
1100000 |
5.5x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS2x1U2-A-S1.5 |
2 |
Current |
Unipolar |
2 … 55 |
175000 |
2.8x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS2x1U6-A-S1.5 |
2 |
Current |
Unipolar |
2 … 16 |
550000 |
4.4x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS2x1U8-A-S1.5 |
2 |
Current |
Unipolar |
1 … 12 |
1100000 |
5.5x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS2x4V1-A-S1.5 |
2 |
Voltage |
Unipolar |
0.2 … 3 |
950 |
2.09x10^8 |
1.5 x 1.5 |
NDIR- Gasanalysis |
|
PS4x2C1-A-S1.4 |
4 |
Current |
Bipolar |
3 … 25 |
125000 |
1.7x10^8 |
1.4 x 1.4 |
NDIR- Gasanalysis |
Sort the product
by their category values simply by
clicking on the desired table column
We manufacture
compatible IR sources. Choose your required
components from one source:
IR Sources
|
Type |
Datasheet |
Characteristics |
Application |
| TPL640 |
PDF |
» High
sensitivity
» High precision housing |
thermography
DIR spectroscopy |
- US-chip + German packaging
- Highest performance worldwide
- Long lifetime
- Fast modulation
The table below shows
the infrared sources; available with
additional features to the mentioned ones
above.
Sort the product by their category
values simply by clicking on the desired
table column
We manufacture
compatible detectors. Choose your required
components from one source:
pyroelectric detectors &
thermopile detectors
Pyroelectric Sensor / Detector
| Micro-Hybrid Electronic
GmbH produces high performance pyroelectric
detectors as well as thermopile infrared
detectors IR sources. The pyroelectric
detectors are available in voltage and in
current mode, packaged in a TO-39 housing.
The current mode is available with various
amplification gains. The Micro-Hybrid
pyroelectric detectors feature:
- 1.4um thick pyroelectric film with
low thermal mass.
- Thermal time constant almost 10
times faster than traditional lithium
tantalate pyroelectric detectors.
- Low sensitivity to microphonics.
- High temperature packaging option
good up to 180°C
/ 356°F.
|
|
These new pyroelectric
detectors are available in high temperature
packaging with support electronics for use
up to 180°C / 356°F.
Micro-Hybrid is able to offer all of their
IR components, thermopiles, pyroelectric
detectors and IR sources in this high
temperature packaging.
|
Applications include NDIR
gas sensing and flame detection products.
The high temperature versions are for those
applications requiring sterilization
(medical), industrial measurement, oil and
gas exploration and aerospace applications.
|
| Micro-Hybrid GmbH is
certified to TS 16949:2009 and ISO
9001:2008. Copies of these certifications
are under Technical Notes. These
certifications are a reflection of their
commitment to quality and product
improvement.
|
Applications include:
- Fire & Flame Detection
- Gas analysis for Industrial and Medical
Applications
- Explosion detection
- Non-contact temperature measurement
- Spectrometers
- Process temperature monitoring
- Radiometers
- Analytical Instruments
Each channel of the pyroelectric detector is
fitted to the application by using an infrared
filter or window. Micro-Hybrid has a broad selection
of
Standard Filters and Windows for these
applications.
Custom Filters and windows are also available.
Application Notes:
IR Sources for Pyroelectric and Lead Selenide (PbSe)
Detectors
Part
Number |
Channels |
Detector Size
mm |
Aperture Size
mm |
Voltage or
Current Mode |
Amplifier |
Low Microphonics |
Signal Frequency Range Hz |
AC Responsivity
V/W |
Detectivity
*10^8/cmHz1/2W |
Package |
| Single
Element |
PS1x4V1- (Pyropile) |
1 |
1.1x1.1 |
1.5x1.5 |
V |
JFET |
Yes |
0.2-3 |
950 |
2.1 |
TO39 |
|
PS1x1C2- |
1 |
0.8x0.8 |
1.5x1.5 |
C |
CMOS |
Yes |
2-55 |
175,000 |
2.8 |
TO39 |
|
PS1x1C8- |
1 |
0.8x0.8 |
1.5x1.5 |
C |
CMOS |
Yes |
1-12 |
1,110,000 |
5.87 |
TO39 |
PS1x1U2-
(C Mode - PIns match voltage mode) |
1 |
0.8x0.8 |
1.5x1.5 |
C |
CMOS |
YES |
2-55 |
175,000
|
2.8 |
TO39 |
| Single
Element - Flame Detection
|
PS1x3C2- |
1 |
1.65x1.65 |
3.7 Dia |
C |
CMOS |
Yes |
1-25 |
275,000 |
4.32 |
TO39 |
|
PS1x3C10- |
1 |
1.65x1.65 |
3.7 Dia |
C |
CMOS |
Yes |
1-100 |
2,000 |
2.2 |
TO39 |
| Multi
Element Detectors |
PS2x4V1- (Pyropile) |
2 |
1.1x1.1 |
1.5x1.5 |
V |
JFET |
Yes |
0.2-3 |
950 |
2.1 |
TO39 |
|
PS2x1C2- |
2 |
0.8x0.8 |
1.5x1.5 |
C |
OpAmp |
Yes |
2-55 |
175,000 |
2.8 |
TO39 |
PS2x1U2-
(C Mode - Pins match Voltage mode)
|
2 |
0.8x0.8 |
1.5x1.5 |
C |
OpAmp |
Yes |
2-55 |
175,000 |
2.8 |
TO39 |
|
PS2x1C8- |
2 |
0.8x0.8 |
1.5x1.5 |
C |
OpAmp |
Yes |
1-12 |
1,100,000 |
5.87 |
TO39 |
|
PS4x2C1 |
4 |
0.7x0.33 |
1.4x1.4 |
C |
OpAmp |
Yes |
3-25 |
125,000 |
1.7 |
TO39 |
|
PS4x4V1- (Pyropile) |
4 |
1.1x1.1 |
1.5x1.5 |
V |
JFET |
Yes |
0.2-3 |
950 |
2.1 |
TO39 |
| High
Temperature - 180°C
Operation |
|
TS2x80B-A-D0.75- (Thermopile) |
2 |
Ø0.5 |
Ø0.75 |
|
|
|
|
|
7.2
|
TO39
|
|
High Temperature
Gas & Liquid Measurement
Module - Sterilization Temperature Resistant |
|
TS1x80X-HT |
1 |
High Temperature Gas & Liquid
Measurement (CO2, etc.) |
|
Ts2x180X-HT |
2 |
High Temperature Gas & Liquid
Measurement (CO2, etc.) |
|
Evaluation Kit |
Evaluation Kit |
2 & 4 Channel |
For evaluating thermopile &
pyroelectric detectors and IR Sources |
Micro-Hybrid Thermopile Detector Product
List
Click on
model number to access data sheet
|
Model |
Channels |
Detector Size
mm |
Aperture Size mm |
Thermistor |
Noise
Equivalent Power nV/Hz1/2 |
Detectivity
*10 8th/cmHz1/2W |
Time
Constant ms |
Junctions |
Package |
|
Single Channel Thin Film Technology
(BiSb) Thermopile Detectors |
|
TS1x200B-A-D3.55- |
1 |
1.2x1.2 |
Ø3.55 |
Y |
0.33 |
3.6 |
30 |
200 |
TO39 |
|
TS1x200B-B-D2.4- |
1 |
1.2x1.2 |
Ø2.4 |
|
0.33 |
3.6 |
30 |
200 |
TO46 |
|
TS1x80B-A-D0.48- |
1 |
Ø0.5 |
Ø0.48 |
Y |
0.06 |
7.2 |
40 |
80 |
TO39
|
|
TS1x80B-A-D0.75- |
1 |
Ø0.5 |
Ø0.75 |
|
0.06 |
7.2 |
40 |
80
|
TO39 |
|
Multi-Channel Thin Film Technology (BiSb)
Thermopile Detectors |
|
TS2x200B-A-S1.5- |
4 |
1.2x1.2 |
1.5x1.5 |
Y |
0.33 |
3.6 |
30 |
2x200 |
TO39 |
|
TS4x200B-A-S1.5- |
4 |
1.2x1.2 |
1.5x1.5 |
Y |
0.33 |
3.6 |
30 |
4x200 |
TO39 |
|
TS4xQ200B-A-S1.5- |
4 |
1.2x1.2 |
1.5x1.5 |
y |
0.41 |
2.95 |
30 |
4x200 |
TO39 |
|
High
Temperature Components - 180°C
Operation |
|
TS1x80B-A-D0.75-0-N2-B1-180 |
1 |
0.5 Dia |
0.75
Dia |
|
0.06 |
7.2 |
36 |
80 |
TO39 |
|
TS2x80B-A-D0.75-0-N2-E1/D1-180 |
1 |
0.5 Dia |
0.75
Dia |
|
0.06 |
7.2 |
36 |
80 |
TO39 |
|
Thermopile Array |
|
TPL640 |
64 |
0.68mm2 |
36.1x3.9 |
Y - 2 |
0.08 |
10.8 |
110 |
64x30 |
22x54mm |
|
High
Temperature Gas & Liquid Measurement
Module - Sterilization Temperature
Resistant |
|
TS1x80X-HT |
1 |
High
Temperature Gas & Liquid Measurement
(CO2, etc.) |
|
|
TS2x180X-HT |
2 |
High
Temperature Gas & Liquid Measurement
(CO2, etc.) |
|
|
Detector Amplifiers |
|
TE2AMP1 |
2 |
2
Channel Minature Amplifier PCB for
preamplification |
PCB |
|
Evaluation Kit |
Evaluation Kit |
2 & 4 Channel |
For evaluating
thermopile and pyroelectric
detectors and IR Sources
Kit does not include Detector or IR
Source. Ask EOC for these. |
|
德国Micro-Hybrid公司热电堆
线阵列TPL640XE，用于热成像，光谱仪等。
特性参数如下：
|
项目 |
值 |
单位 |
|
像素 |
64 |
|
|
每像素激活面积 |
0.45x1.5 |
mm2 |
|
间隔 |
0.5 |
mm |
|
每像素热电偶数 |
30 |
|
|
像素电阻 |
8.5+/-3.5 |
KΩ |
|
填充气体 |
Xenon |
|
|
时间常数 |
110 |
ms |
|
探测率D* |
1.08x10^9 |
cmHz1/2/w |
|
窗口 |
AR
coated Ge,Average
%T:>=90%,from 2-16μm |
|
|
运行温度 |
-20 -
+70 |
℃ |
另有评估工具，可咨询。 |
|
|
德国Micro-Hybrid生产的高温灭菌CO2培养箱用红外CO2气体检测模块。
规格参数
|
参数 |
值 |
|
测量气体 |
CO2 |
|
测量范围 |
0-20%VOL |
|
测量温度范围 |
0-190℃ |
|
测量精度 |
±（0.2%vol
or 2%读数） |
|
附加错误 |
<2%测量值，由于温度和压力 |
|
响应时间 |
<30s |
|
加热时间 |
<15min |
|
传感器温度范围 |
-25 -
+200℃ |
|
电子部分温度范围 |
-25 - +85℃ |
|
输出接口 |
4-20mA,0-1V,0-10V,RS232,CAN |
|
供电 |
12VDC±1V
max.2W |
|
|
|
|
|
 |
|
传感器/变送器/仪表按厂商品牌选用指南
红外光电系列
