Acceleration, Inclination & Tilt Sensors
Thread Tension Sensors
Micro-Sensor (formerly Mikrotechnik + Sensorik) GmbH
sensors are based on the principle of difference capacitance
and are made for heavy outside applications in industry and
agriculture. The sensors are lightweight, robust and
resistant to fuel, oil, seawater and a lot of chemicals.
... For the BIG STUFF
Because of their design, all sensors can measure
acceleration, inclination and vibration.
Principle of Difference Capacitance

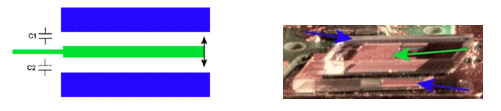

A difference capacitor consist of two conductive plates
(blue). Between theses plates is conductive “tongue“
(green). This system uses MEMS (Micro-Electro-Mechanical
System) technology. Acceleration forces (and gravity) move
the tongue changing the capacitance. The change of
capacitance is proportional to the acceleration. In M+S
designs the plates and togue are replaced with small comb
structures. Inertia and resonance frequency determine upper
frequency limits (around 2kHz). There is no lower frequency
limitation. This technique is also good for measure
inclination and tilt. Inclination and tilt measurements are
affected by gravity, so this is compensated for in the
measurement.
Thread Tension Sensor
Micro-Sensor GmbH thread tension sensor systems use the
same principles measuring thread tension in textile machines
and wire production. They measure the force of a yarn,
thread or wire with high precision up to 25cN, 50cN and
100cN.
References
Micro-Sensor modules are widely used in Europe and Asia.
Micro-Sensor is DIN ISO certified.
See all the products in the Micro-Sensor’s Brochure.
Acceleration Sensors
| Part Number |
Description |
Axis
|
Frequency
Hz |
Sensitivity
V/g |
Resolution
mg |
Power
mA |
|
BG2180 |
3 axis, compact |
3 |
100 |
|
3.9 |
1.5 |
|
BG2166 |
Fast data acquisition |
1 or 2 |
100 |
1 |
2 |
7 |
|
BG2166L |
Low cost version |
1 or 2 |
100 |
1 |
2 |
4 |
|
BG2168 |
Small, low cost |
1 or 2 |
50 |
1 |
2 |
2.5 |
|
BS2166 |
Hermetic package for PCBs |
1 or 2 |
100 |
1 |
2 |
7 |
|
BT |
For Locomotives/Trains |
|
2 - 10 |
|
|
100 |
Inclination Switch
| Part Number |
Description |
Angle
Range |
Time Delay
ms |
Resolution |
Power
mA |
|
BG2168 |
Small, low cost |
5 to 85º |
500 |
<2º |
30 |
|
P-NS2168 |
A Program device for
NG2168 |
Inclination and Tilt Sensors
| Part Number |
Description |
Angle
Range |
Frequency
Hz |
Resolution |
Power
mA |
|
LG2166 |
Large tilt range |
180º |
20 |
<1º |
7 |
|
NG2166 |
15º tilt range |
15º |
20 |
133mV/º |
7 |
Thread Tension Sensor
| Part Number |
Description |
Accuracy |
Frequency
Hz |
Power
mA |
|
FSS |
Precision thread tension |
<0.1 cN |
1200 |
5 |
Cable Sets
Technical Notes
Comparison of Sensors
Advantages and Applications of Series BG, NG and LG
Housing Chemical Resistance
| Part Number |
Description |
Axis
|
Frequency
Hz |
Sensitivity
V/g |
Resolution
mg |
Power
mA |
|
BG2180 |
3 axis, compact |
3 |
100 |
|
3.9 |
1.5 |
|
BG2166 |
Fast data acquisition |
1 or 2 |
100 |
1 |
2 |
7 |
|
BG2166L |
Low cost version |
1 or 2 |
100 |
1 |
2 |
4 |
|
BG2168 |
Small, low cost |
1 or 2 |
50 |
1 |
2 |
2.5 |
|
BS2166 |
Hermetic package for PCBs |
1 or 2 |
100 |
1 |
2 |
7 |
|
BT |
For Locomotives/Trains |
|
2 - 10 |
|
|
100 |
| Part Number |
Description |
Angle
Range |
Time Delay
ms |
Resolution |
Power
mA |
|
BG2168 |
Small, low cost |
5 to 85º
|
500 |
<2º |
30 |
|
P-NS2168 |
A Program device
for NG2168 |
| Part Number |
Description |
Angle
Range |
Frequency
Hz |
Resolution |
Power
mA |
|
LG2166 |
Large tilt range |
180º |
20 |
<1º |
7 |
|
NG2166 |
15º tilt range |
15º |
20 |
133mV/º |
7 |
| Part Number |
Description |
Accuracy |
Frequency
Hz |
Power
mA |
|
FSS |
Precision thread tension
|
<0.1 cN |
1200 |
5 |
|
| |
| |
| |
