霍尔效应集成电路 - Hall Effect IC's
AKM霍尔集成电路是以霍尔元件为基础的磁敏传感器，配有读出放大器和数码输出缓冲器。
多种产品类型包括霍尔元件的偏压类型（连续式或周期式）的选择、检测极性的选配和包装选择，可允许客户根据其使用来寻找最合适的元件。该装置采用AKM的长期使用的成熟的混合信号技术，从而实现低能耗及磁敏性能的零损耗。AKM霍尔集成电路是应用于最前沿的手提式或家用电子设备的理想首选。
|
|
Benefits:
- Built-in high
performance sensing Amp and
Comparator enable to:
·provide accurate magnetic
sensing
·connect to digital system
directly
·eliminate the need for
external components
- Various product line up
by
·Sensing characteristics
based on Hall element
product line
·Output form to optimize for
applications
- Technical Support based
on long term market
expeience
|
|
|

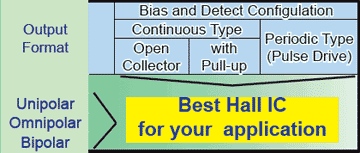

元件选配矩阵 - Part Selection
Matrix
带有磁场配置的AKM霍尔效应集成电路类型。从下面矩阵表示的配置参数中可找到最适合的解决方案。
关于输出格式的更多信息，请参阅下述的“霍尔集成电路输出类型”部分。
|
|
Hall IC Output Types

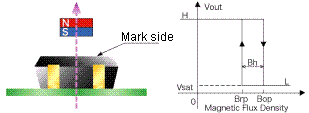

Unipolar Detection Type

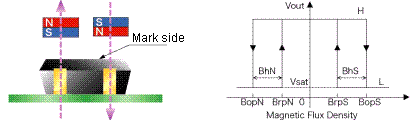

Omnipolar Detection Type
Bipolar DetectionType
|
|
Switch
 |
The following
variations of switch
type Hall effect ICs are
available:
| - Single
pole detection
switch |
- Two pole
detection switch |
-
Continuous
excitation
type
- Pulse
excitation
type
|
- Single
output type

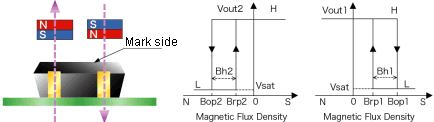

- Dual
output type
|
|
|
|
latch
|

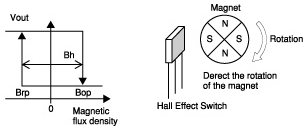

Bipolar latch type
Hall effect ICs
|
 Explanation
of operation |
Switches on/off when
the magnetic fields from
the S pole and N pole of
the magnet are applied
alternately.
This is principally
applied in detection of
revolution speed. |
Schematic
operation drawing |
|
|
When the S pole of
the magnet approaches
the marked side of the
Hall effect IC and the
magnetic flux density
exceeds Bop, Vout
changes from H to L.
When the N pole of
the magnet approaches
the marked side of the
Hall effect IC and the
magnetic flux density
exceeds Brp, Vout
changes from L to H.
|
Product
list(Continuous
excitation type)
The hall element in the
霍尔集成电路 is always driven.
Operating ambient
temperature range is -30
to 115°C. |
Supply
Voltage
(Vcc)
Range |
Package
Size
(mm) |
Output H
to L
Magnetic
Flux
Density
Operating
Point
(Bop) |
|
L |
W |
H |
High
sensitivity
3 [mT] |
Low
sensitivity
10 [mT] |
4.5 to
26.4 [V]
(Typ.
12) |
4.4 |
3.6 |
1.2 |
|
|
|
3.1 |
3.0 |
1.0 |
|
|
3.0 |
4.1 |
1.15 |
|
4.5 to
18 [V]
(Typ.
12) |
4.4 |
3.6 |
1.2 |
|
|
|
4.0 |
4.5 |
1.5 |
|
2.2 to
18 [V]
(Typ.
12) |
4.4 |
3.6 |
1.2 |
|
|
|
3.1 |
3.0 |
1.0 |
|
|
3.0 |
4.1 |
1.15 |
|
2.5 to
5.5 [V]
(Typ. 3) |
4.4 |
3.6 |
1.2 |
|
|
3.5 to
18 [V]
(Typ.
12) |
2.1 |
2.1 |
0.55 |
|
|
|
|
| Note: SMT - Package
size includes the leads.
SIP - Package size does
not include the leads. |
Product
list(With power-down
function)
The drive condition of
the Hall element in the
Hall effect IC (active
power-down) can be
adjusted from the
outside.
Operating ambient
temperature is -30 to
85°C. |
Operating
Voltage
Range
Supply
Voltage
(VDD) |
Package
Size
(mm) |
Output H
to L
Magnetic
Flux
Density
Operating
Point
(Bop)
|
|
L |
W |
H |
Typ.
1.8(Max.
4)[mT] |
1.6 to
5.5 [V]
(Typ. 3) |
2.1 |
2.1 |
0.38 |
|
|
|
2.1 |
2.1 |
0.45 |
|
|
|
1.2 |
1.8 |
0.55 |
|
|
|
Linear
Hall
Effect
IC
Linear
Hall
Effect
IC is
composed
of Hall
Element
and a
Amplifer
in a
package.
Features
-
Supply
Voltage
:
3~5.5V
-
Continuous-Time
Ratiometric
Analog
Output
-
Output
Rise/Fall
Time
:
Typ.
4µs
-
Bandwidth
-3dB:
90kHz
-
Response
time
:
Typ.
2µs
-
Operating
Temperature
Range
:
-30~100°C
| Package |
Package Size
(mm) |
Sensitivity |
| L |
W |
H |
20mV/mT |
40mV/mT |
65mV/mT |
130mV/mT |
| SOP |
4.4 |
3.6 |
1.2 |
|
|
|
|
| SIP |
3.0 |
4.1 |
1.15 |
|
|
|
|
|
|
|
|
|
|
Note:
Package
size
does not
include
the
leads.
|
|
|
Semiconductor
magnetoresistive element
(SMRE)
Since a Sn doped
single crystal film
InSb is used as a
material for the
sensing element, the
element has
excellent
magnetoresistive
temperature
characteristics and
very small neutral
voltage temperature
drift. This element
is mainly used for
detection of gear
rotation.
Major
applications
|
Application |
Product |
Function |
Field
product |
|
Rotary
encoder |
AC
servomotor |
Machine
tool
spindle
position
and
speed
control |
Machining
center
Machining
complex |
|
Machine
tool
precise
rotation
angle
control |
|
Hoisting
motor |
Elevator
Escalator |
|
Electrical
injection
molding
machine
main
shaft
control |
Electric
injection
molding
machine |
CT
scanner
control
X-ray
transfer
bed
position
control |
CT
scanner
X-ray
equipment
for
radiography |
|
Motor
control |
Semiconductor
production
equipment |
|
Crane
slewing
azimuth
angle
detection |
Marine
deck
crane |
|
Linear
encoder |
|
Linear
control |
Automatic
loom |
|
Small and thin-type
package without lead
|
Package
type |
Type
(*1) |
Package
size(mm) |
Input/output
resistance(Ω) |
Neutral
voltage
in
phases A
and B
(*2)
(V/V5) |
Magnetoresistive
effect
(*3)
ΔRin/Rin
(%)
ΔRout/Rout
(%) |
|
Length |
Width |
Thickness |
|
SON |
|
2.7 |
8.5 |
0.6 |
400~760 |
2.46~2.54 |
170~ |
|
|
2.7 |
7.4 |
230~375 |
|
|
205~330 |
|
- (*1)The
figure represents
the pitch of the
gear to be detected.
If the gear pitch
(crest-to-crest) is
assumed as p, p (mm)
= mπ is obtained.
(Where, m represents
a gear module, and π
indicates the
circular constant.)
- (*2)This
presents the output
terminal voltage
when 5 V is applied
to both ends of SMRE
in non-magnetic
field.
- (*3)This
represents the
change (rate) of the
resistance value
when a magnetic
field is applied.
R(B) and R(0) are
defined as follows:
R(B): Resistance
value at the
magnetic field B =
0.45(T),
R(0): Resistance
value at the
magnetic field B =
0(T)
ΔRin/Rin = (Rin(B) -
Rin(0))/Rin(0)),
ΔRout/Rout = (Rout(B)
- Rout(0))/Rout(0))
AKM's Current
Sensors
AKM provide the
non-contact open loop
type current sensor
which has High responce
and High reliabitiy
CQ-121E ,CQ-131E
CQ-121E and CQ-131E
are the open loop type
current sensor using
high sensitive linear
Hall effect IC.
Features
- The
sensor pins are
electrically
isolatted from
primary conductor.
-
Magnentic core
reduce the influence
of the external
magnetic field.
-
Compound
semiconductor Hall
element and
processing IC are
packed into single
package.
- Able
to input directly
into A/D of CPU
-
Response speed: Typ.
3μs
-
Operating ambient
temperature range;
-30～80°C
Products line up
|
Type |
Small core type
current sensor |
|
20A type |
30A type |
|
Products |
|
|
CQ20xx series
CQ-20xxseries Current
sensor is higher
acculate oppen loop type
current sensor.
Features
-
Newly developed
programmable linear
Hall effect IC with
InAs Hall elements
is installed to
achive highly
accuracy of current
sensor.
- The
sensor pins are
electrically
isolatted from
primary conductor.
-
Adopted highly
reliable new
structure: AI-Shell®
-
Magnentic core
reduce the influence
of the external
magnetic field.
- Able
to input directly
into A/D of CPU
-
Response speed: Typ.
1μs
-
Operating ambient
temperature range;
-40～90°C
Main applications:
Air conditioning and
industrial machinery;
various inverters
Products
|
Type |
Small
High
precision
current
sensor(Through
Hole
type) |
|
Products
|
CQ-2063 |
CQ-2064 |
CQ-2065 |
CQ-2066 |
|
Sensitivity |
60 mV/A |
40 mV/A |
25 mV/A |
12 mV/A |
|
AC Range
|
±35 A |
±54 A |
±85 A |
±170 A |
|
Max DC
|
50 A |
|
|
Type |
Small High
precision
current
sensor(Surfece
Mount type) |
|
Products |
CQ-2092 |
CQ-2093 |
|
Sensitivity |
100 mV/A |
60 mV/A |
|
AC Range |
±21 A |
±35 A |
|
Max DC |
20 A |
Main Application
-
Inverter control for
air conditioner and
industrial machinery
-
Power monitoring
system for smart
meter
- Over
current detection
-
Solar power
conditioner
-
Comparison between
CQ-10xE series and
CQ-20xx series
-
Important notice for
using CQ series
current sensor
- FAQ
for CQ series
电流传感器 - Current Sensor
AKM's current sensor using the
patented housing architecture offers
highly magnetic noise tolerance in
the field of current line trace,
enabling precision sensing and real
estate save.
- Vector
Control of 3-phase motor
applications
- Current
Monitoring systems
- Over
Current Protection
Applications
- Current
Feedback System
| |
Model
|
|
 |
CQ-131E
|
Open
Type Current Sensor
Sense
Range: +/- 60mA,
Sensitivity: 27mV/A(Typ.)
|
|
|
CQ-121E
|
Open
Type Current Sensor
Sense
Range: +/- 30mA,
Sensitivity: 63.5mV/A(Typ.) |
|
|
CQ-130E
|
Open
Type Current Sensor
Not recommend for new
designs. For new design:
CQ-131E |
|
|
CQ-120E
|
Open
Type Current Sensor
Not recommend for new
designs. For new design
:CQ-121E |
|
|
 |
|
