Sensors for
measuring of inclinations and angle
-
Repeatability ±0,01°
-
Resolution ±0,001°
-
Temperature dependency up to SE
±0,002°/°C
- Shock
residences (SE) more then:
20’000g
- Metal
housing IP67 / IP68
- With
cable or connectors
- Working
range: -30°....+85°C (125°C
optionally)
- Power
input 7…36V regulated /
stabilized
- Outputs:
4...20mA, 0.5...4,5 V, 2-10V,
+/-4V, or Modbus (RS485 based)
- Measuring
ranges ±15... ±90°
- Low pass
mechanical filtering e.g. 1, 18,
or 50Hz 3db
- One or
two axis versions
IP67(68)
metal housing for harsh
environment with common M12
sensor-connector
Potted
IP64 metal housing for cost
efficient applications
Digital
Inclination (Angle-) Sensors with IP67 (68) housing and
Modbus- (RS485 based) output:
GKAS2000-Serie
(±15°... ±90° with <0.001...0,002° resolutions)
Analogue
Inclination- (Angle-) Sensors with IP67 (68) housing and
4...20mA output:
(also 1-5V and
2-10V readable)
SCA1x4T-Serie (±30°...
±90° with <0,003° resolution)
Analogue
Inclination- (Angle-) Sensors with IP64 housings and
cable with 0.5...4.5 V output:
KAS901-4x
1-axis precision Inclinometer (±15...30° and <0,001°
resolution)
KAS901-0x 1-axis
Inclinometer (±30...90° and 0,002° resolution)
KAS901-5x 2-axis
Inclinometer (±30...90° and 0,002° resolution)
For applications
with high vibrations*):
KAS901-04
1-axis Inclinometer / Accelerometer (±90° or ±1,7g and
0,01° resolution)
KAS901-54
2-axis Inclinometer / Accelerometer (±90° or ±1,7g and
0,01° resolution)
KAS901-58
2-axis Inclinometer / Accelerometer (±90° or ± 4g and
0,03° resolution for applications with very high
vibrations)
*) With various averaging and
filtering are very good accuracies possible
Rugged sensors
for measuring of Acceleration and
Vibration
-
Repeatability more then ±0,1%
-
Resolution up to ±0,01%
-
Temperature dependency SE
±0,01%/°C
- No
overshooting and resonance
frequencies disturbances
- Metal
housings e.g.10x25x35mm (HxBxL)
- Cable 1m
PVC (other versions possible)
- Working
range: -30°....+85°C (125°C
optionally)
- powering
7…36V regulated (no powering
noise)
- Ranges ±
0,25… ± 12g
- Band-pass
frequency response from 0…50 Hz
3db up to 0….1000 Hz 3db
- One and
two-axis sensors available
IP67(68)
metal housing for harsh
environment with common M12
sensor-connector
KAS804-Serie für hohe
Temperaturen bis 100 oder
125°C
Analogue
Accelerometer with IP64 housing, cable and 0.5...4.5 V
output:
KAS901-04
one axis accelerometer (±1,7g, X-axis and 0,1mg
resolution)
KAS901-05
one axis accelerometer (±1,7g, Z-axis and 0,15mg
resolution)
KAS901-54
two axis accelerometer (±1,7g, X- and Y-axis and 0,1mg
resolution)
KAS901-55
two axis accelerometer (±1,7g, X- and Z-axis and 0,1mg
resolution)
KAS901-58
two axis accelerometer (±4g, X- and Y-axis and 0,2mg
resolution)
KAS903-xx
two axis accelerometer (±12g, X- and Y-axis and 0.2mg
resolution)
Analogue
Accelerometer with IP67 (68) housing and 4...20mA
output:
(also 1...5V and
2-10V output available)
SCA1x4T 1-axis Accelerometer (±1,7g, X-axis and
0,2mg resolution)
SCA1x4T 1-axis Accelerometer (±2,7g, X-axis and 400
Hz 3db damping)
For small series
only (e.g. 5pcs) please contact us.
Sensor for
measuring of Vibration (and
Acceleration)
-
Repeatability upt to ±0,005% (on
1 Hz) of measuring range
-
Resolutions up to ±0,02% von (0
... 400 Hz bandwith) of
measuring range
-
Temperature dependency (SE) up
to ±0,01%/°C
- No
resonance frequency disturbence
/ effect because of mechanical
and electronics band-pass
filtering
- No
overshoting becaus of gas
damping in Sensing Element (SE)
- Gas
damping combined with electronic
filtering avoid or simplifiy
external Filter System
- metal
housing e.g.10x25x35mm (HxWxL)
- cable 1m
PVC (other versions possible)
- Working
range: -30°....+85°C (125°C
optionally)
- powering
7…36V regulated / stabilized
(avoid power noise)
- ranges ±
0,25… ± 12g
- frequency
response 0…50 Hz 3db bis 0….1000
Hz 3db
- one and
two axis versions
With this very
economique Vibration are now very accurate Vibration
measuring and control possible. Without expensive
external filtering are measuring without resonance
effects and overshooting errors possible.
Additionally
there are no expensive adapters and amplifiers
necessary. With normal SPS with TRUE RMS output or
normal Oscilloscopes are rapid and accurate Vibration
control and measuring possible.
KAS903-01A
two axis Accelerometer (±12g, X- and Y-axis, 0…400 Hz
3dB bandwith)
KAS903-02A
two axis Accelerometer (±12g, X- and Y-axis, 0…1000 Hz
3dB bandwith)
KAS903-11A
two axis Accelerometer (±12g, X- and Y-axis, 0…400 Hz
3dB bandwith)
KAS903-12A
two axis Accelerometer (±12g, X- and Y-axis, 0…1000 Hz
3dB bandwith)
KAS901-58 two
axis accelerometer (±4g, X- and Y-axis, 0…415 Hz 3dB
bandwith)
KAS901-54
two axis accelerometer (±1,7g, X- and Y-axis,
0…50 Hz 3dB bandwith)
KAS901-55
two axis accelerometer (±1,7g, X- and Z-axis,
0…50 Hz 3dB bandwith)
IP67/68 rugged Inclination Sensors
- Metal housing
IP67 / IP68, L85xW63xH32 (including
connector)
- Rugged standard
M12 connector (IP68)
- Output: 4…20mA
- Power supply
10…36V (internal regulation provided)
- measuring ranges:
±30°, ±90°, (± 15°optionally)
- One axis and two
axis versions
- Repeatability
±0,03°
- Resolution
±0,003°
- Temperature
dependency of SE ±0,008°/°C
- Operating
temperature range: -40…+85°C
- Shock resistance
of SE more than: 20’000g
- Efficient band
pass damping/filtering
Other measuring ranges for
acceleration/vibration measuring
ranges ±0.5…±12g possible
5
SCA1x4TK BR E (59 KB)
加速度传感器是指能把加速度变换成与其有一定函数关系的所需信号的传感器，比如像线加速传感器一般是通过一定的方式测量出所需的惯性力F，然后再由牛顿第二定律F=ma得出加速度。根据所使用的变换器不同，可分为电位器式、电容式、电感式、压电式及应变式加速度传感器。加速度传感器的应用范围覆盖了方方面面，可用于航空航天中姿态监测和导航、船舶、车辆及工业自动化中加速的检测、自由落体检测、计算机外设、运动控制与检测、游戏输入设备等多个方面。
的主要合作对象是芬兰的VTI，VTI科技是全球范围内硅电容式惯性传感器设计和生产的先驱，在运动测量领域有雄厚的技术积累，同时VTI拥有全球独一无二的3D-MEMS专利技术。

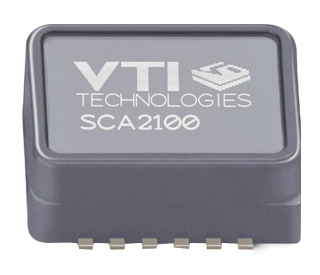

VTI的加速传感器主要有两个系列SCA和CMA系列，其中SCA系列型号齐全，VTI针对各种实际测量的需要开发出了一系列功能的产品，能够满足不同用户各种不同测量方面的需求，CMA系列中的CMA3000-D01和CMA3000-A01加速度传感器采用了先进的3D-MEMS技术，该传感器主要由一个3D-MEMS传感元件和信号调节专用芯片组成，属于晶片级的产品。同时该系列产品是针对小尺寸、低价格、低功耗的需求而设计的，该产品还以2mm×2mm×0.95mm的封装，10μA的工作电流，精简的引脚数量，成为深受消费类电子厂商欢迎的三轴加速度传感器，本产品还具有高抗震性，拥有两个可供灵活选择的测量量程，是经过了RoHS认证的优异产品。
速度传感器
姿态检测传感器 ： 倾角传感器加速度传感器陀螺仪
航向测量传感器 ： 磁传感器电子罗盘磁力计航姿检测模块
定位导航传感器 ： GPS模块GPS全向定位天线GNSS 模块
海拔气压传感器 ： 防水型气压传感器标准型气压传感器
| 型号 |
量程 |
轴数 |
带宽 |
灵敏度 |
输出方式 |
供电电源 |
功耗 |
|
|
SCA720-D01 |
-1.11~+3.11g |
单轴 |
68~170Hz |
0.9375V/g |
电压输出 |
4.75V~5.25V |
2.5mA |
查看
|
|
SCA100T-D07 |
±12g |
XY双轴 |
400Hz |
0.17 V/g，70 LSB/g |
SPI/模拟 |
4.75V~5.25V |
5mA max |
查看
|
|
SCA2120-D07 |
±2g |
YZ双轴 |
30~55Hz |
900count/g |
SPI |
3.0V~3.6V |
5mA max |
查看
|
|
SCA820-D03 |
±2g |
单轴(Z方向) |
50Hz |
900count/g |
SPI |
3.0V~3.6V |
6.3mA max |
查看
|
|
SCA810-D01 |
±2g |
单轴(X方向) |
50Hz |
900count/g |
PWM/SPI |
3.0V~3.6V |
6.3mA max |
查看
|
|
SCA2100-D01 |
±2g |
XY双轴 |
45Hz |
900count/g |
SPI |
3.0V~3.6V |
5mA max |
查看
|
|
SCA830-D05 |
±2g |
单轴(Y方向) |
50Hz |
900count/g |
SPI |
3.0V~3.6V |
6.3mA max |
查看
|
|
SCA2100-D02 |
±2g |
XY双轴 |
30~55Hz |
900count/g |
SPI |
3.0V~3.6V |
5mA max |
查看
|
|
SCA830-D06 |
±2g |
Y轴 |
30~80Hz |
900count/g |
SPI |
3.0V~3.6V |
6.3mA max |
查看
|
|
SCA820-D04 |
±2g |
Z轴 |
30~80Hz |
900count/g |
SPI |
3.0V~3.6V |
6.3mA max |
查看
|
|
SCA3060-D01/D02 |
±2g |
3轴 |
50/100Hz |
1000count/g |
SPI/I2C |
3V~3.6V |
150uA |
查看
|
|
SCA3100-D07 |
±6g |
三轴 |
45Hz |
650count/g |
SPI |
3.0V~3.6V |
5mA max |
查看
|
|
SCA3100-D04 |
±2g |
三轴 |
45Hz |
900count/g |
SPI |
3.0V~3.6V |
5mA max |
查看
|
|
SCA1000-D01 |
±1.7g |
XY双轴 |
50Hz |
1.2V/g |
电压输出 |
4.75V~5.25V |
5mA max |
查看
|
|
SCA610-E23H1A |
±1.5g |
X轴 |
50Hz |
1.333 V/g |
电压输出 |
4.75V~5.25V |
2.5mA |
查看 |
| 型号 |
量程 |
轴数 |
带宽 |
灵敏度 |
输出方式 |
供电电源 |
功耗 |
|
|
SCA620-CF8H1A |
±1.7g |
单轴 |
50Hz |
1.2V/g |
电压输出 |
4.75V~5.25V |
4mA max |
查看 |
|
CMA3000-D01 |
±2g，±8g |
三轴 |
10/40Hz |
56Count/g，15Count/g |
SPI，I2C |
1.7V~3.6V |
<70uA，<11uA |
查看 |
|
SCA610-C23H1A加速度传感器 |
±1.5g |
1轴(水平) |
50Hz |
1.33V/g |
电压输出 |
4.75V~5.25V |
4mA |
查 |
压电式速度传感器
压阻式加速度传感器
电容式加速度传感器
伺服型加速度传感器 三轴加速度传感器
陀螺仪 数据采集设备
标定校准设备  SCA610
SCA3000
SCA620
SCA1000
SCA2100
SCA3100
SCA810
SCA820
SCA830CMA3000
SCA3060 |
2.
输出方式有多种，SPI,I2C接口，也可提供模拟信号输出。
