MNR （metal oxide non-linear resistor） varistors are ceramic semiconductors with zinc oxide as the primary ingredient.
Varistor voltages extensively range from 8 to 1800V.
Formed-lead and tape-packaged products are available.
Designed to be compliant with the RoHS Directive, they are considerate to environmental hazards.

Protection of semiconductors from instantaneous over-voltage
Protection from lighting surge induced into wiring and communication lines
Protection from on-off surge of relays, etc.
Protection of automotive electronic equipment and semiconductors from over-voltage.（ZM series Thermistors）
Other

For engine control

Water temperature sensors

Senses engine coolant temperature.
For control of air-fuel ratios of engines and cooling fans

Fuel temperature sensors

Senses temperature
of fuel in
a fuel tank
for air-fuel
ratio control.

For automotive air conditioners

Evaporator temperature sensor （Coating type）

Senses evaporator temperature for control of air conditioners for comfort and efficiency.

Evaporator temperature sensors （Bracket type）

Evaporator temperature sensor （Bracket type）

Mounting
brackets are
molded
together.

Evaporator temperature sensors （Fin type）

Evaporator temperature sensor （Fin type）

A type insertable into heat exchangers for direct measurement of fin temperatures.

Outdoor temperature sensor

Senses outdoor temperatures in front of a radiator for control of an air conditioner for comfort and efficiency.

Passenger cabin temperature sensor

Senses passenger cabin temperatures
for control of an air conditioner for
comfort and efficiency.

For hybrid vehicles

Secondary-battery temperature sensors

Monitors heat generated during discharge of secondary batteries for optimal charge control.

Other

ATF temperature
sensors

Senses ATF temperatures for control of gear shifting shocks and for better fuel efficiency.

Radiator temperature sensors

Senses cooling water temperatures of
a radiator for
control of
a cooling fan.

Water temperature sensors for engine control

Zero load resistance	B constant	Thermal time constant	Operating temp. range
R25=2kΩ	B25/50=3500K	12 sec. max. （in stirred water）	-40 to 120℃

・Customized supplies only

Press here to return to the top of this page.

Fuel temperature sensors for engine control

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R25 2.1kΩ	B25/50 3480K	6.5mW/℃ （in water）	60 sec. max. （in stirred water）	-40℃ to +70℃

・Customized supplies only

Press here to return to the top of this page.

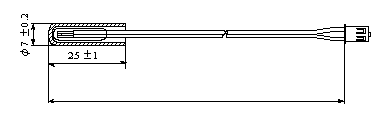

Evaporator temperature sensors for automotive air conditioners （Coating type）

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R25 2.1kΩ	B25/50： 3480K	6.5mW/℃ （in water）	60 sec. max. （in stirred water）	-40℃ to +70℃

・Characteristics and connectors may be customized. （Please contact our sales representative.）

Press here to return to the top of this page.

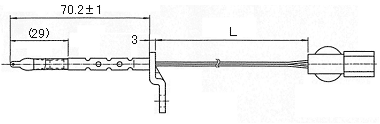

Evaporator temperature sensors for automotive air conditioners （Bracket type）

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R3.2=26.36kΩ	B3.2/25=3500K	1.5mW/℃ （in still air）	3.0 sec. max. （in stirred water）	-30 to 80℃

・Characteristics and connectors may be customized. （Please contact our sales representative.）

Press here to return to the top of this page.

Evaporator temperature sensor for automotive air conditioner （Fin type）

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R0=11.36kΩ	B0/25=3400K	4.5mW/℃ （in still air）	About 3.0 sec. （in stirred water）	-40 to 93℃

・Insulation resistance： 100MΩmin.

・Withstanding voltage： 1500V AC for 1 minute

Press here to return to the top of this page.

Outdoor temperature sensors for automotive air conditioners

Outdoor temperature sensor

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
Customizable		3.5mW/℃ （in still air）	1010 sec. max. （in stirred water）	-30～80℃ -30 to 80℃

Press here to return to the top of this page.

Passenger cabin temperature sensors for automotive air conditioners

Passenger cabin temperature sensor

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
Customizable		5.0mW/℃ （in still air）	100 sec. max. （in still air）	-30 to 80℃

Press here to return to the top of this page.

Secondary-battery temperature sensors for hybrid vehicles

Zero Power resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R25=10kΩ	B25/85=3435K	--	About 30 sec. （in flowing air）	-40 to 85℃

Press here to return to the top of this page.

ATF temperature sensors

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R100=0.1553kΩ	B40/100=3556K	3.5mW/℃ （in still air）	No longer than 12.4 sec. （in stirred water）	-40 to 165℃

・Oil tightness:　No leaks under 98 kPa oil pressure

Press here to return to the top of this page.

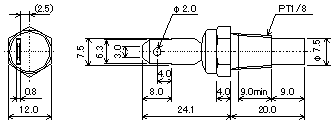

Radiator temperature sensors

Zero load resistance	Operating temp. range
（※１）	-40 to 130℃

※１ Characteristics of water temperature sensors are dynamic characteristics. No zero load resistance is specified.

・Dynamic characteristics R80＝51.9+4.9/-4.4Ω R100＝27.4+1.9/-1.2Ω （with a specified measurement circuit）

Reference measurement circuit Radiator temperature sensors

For air conditioners and refrigerators

For air conditioners, coating type

Indoor and outdoor temperatures and air temperatures at suction and exhalation mouths will be detected.

For air conditioners, CAN type

Senses temperatures
of heat
exchangers（piping）
and discharge
pipes.

For air conditioners, contained in connectors

Multiple sensors of such as a coating type and CAN type can be put together into one connector.

For air conditioner compressors

Senses abnormally over-heated temperatures
on compressor
surfaces.

For
refrigerators

Temperature sensors that control inside temperature of refrigerators and heat exchanger temperatures.

For For air conditioners, coating type household appliances

Hot water
supplies
（with-leads type）

Temperature sensors
to control
temperatures
of incoming and
outgoing water and
bath tub water

Hot water supplies（integrated in a connector）

Temperature sensors
to control
temperatures
of incoming and
outgoing water and
bath tub water

For temperature of air discharged from microwave ovens

Temperature sensors to measure temperatures of air discharged from microwave ovens and control microwave oven operation

For surface temperature sensing

Temperature sensors most suitable for sensing surface temperatures of solid objects

For high temperature sensing

Water-resistant temperature sensors usable in temperatures up to as high as 200℃

For air conditioners, coating type

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R25：10KΩ	B25/50：3950K	2.5mW/℃（in still air）	8.0 sec. max.（in stirred water）	-20℃ to 105℃

Characteristics and connectors may be customized. （Please contact our sales representative.）
Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 sec

Press here to return to the top of this page.

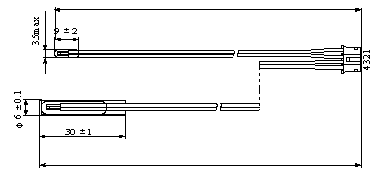

For air conditioners, CAN type

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R25：10KΩ	B25/50：3950K	5.0mW/℃（in still air）	10 sec. max.（in stirred water）	-20℃ to 105℃

Characteristics and connectors may be customized. （Please contact our sales representative.）
Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 sec
Up-to-150℃ capable types optionally available depending on applications （cross-linked polyethylene cable used）

Press here to return to the top of this page.

For air conditioners, contained in connectors

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R25：10KΩ	B25/50：3950K	2.5mW/℃（in still air）	8.0 sec. max.（in stirred water）	-20℃ to 105℃
R25：10KΩ	B25/50：3950K	5.0mW/℃（in still air）	10 sec. max.（in stirred water）	-20℃ to 105℃

Characteristics and connectors may be customized. （Please contact our sales representative.）
Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 second

Press here to return to the top of this page.

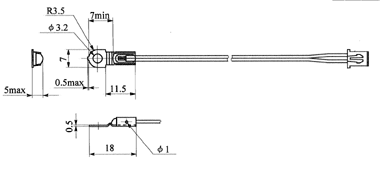

For air conditioner compressors

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R25：45KΩ	_	3.0mW/℃（in still air）	_	-30℃ to 130℃

Most suitable for sensing compressor surface temperatures.
Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 second

Press here to return to the top of this page.

For refrigerators

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R0：6.35ＫΩ	B0/25：3830K	7.0mW/℃（in still air）	15 sec. max.（in stirred water）	-30℃ to 80℃

Sensing temperatures of refrigerators, freezers, ice trays, etc.
Characteristics and connectors may be customized. （Please contact our sales representative.）
Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 second

Press here to return to the top of this page.

For hot water supplies（with-leads type）

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R50 3.485KΩ	B0/100 3450K	3.5mW/℃（in still air）	2.0 sec. max. （90％ response in water）	-20℃ to +120℃

Press here to return to the top of this page.

Hot water supplies（integrated in a connector）

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R50 3.485kΩ	B0/100 3450K	3.5mW/℃（in still air）	2.0 sec. max. （90％ response in water）	-20℃ to +120℃

Insulation resistance：100MΩ, min. between protective tube and terminals （with 500V DC megohm meter）
Withstanding voltage：No abnormalities to be observed with 1 minute application of 750V AC between protective tube and terminals.

Press here to return to the top of this page.

For temperature of air discharged from microwave ovens

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R120 1.62kΩ	B25/120 4 250K	9.0mW/℃（in still air）	120 sec. max. （in still air）	-20℃ to +120℃

Upper temperature limit：150℃ for 1h

Press here to return to the top of this page.

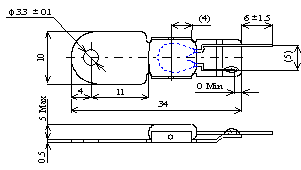

For surface temperature sensing

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R25 10kΩ	B25/50 3950K	About 3.5mW/℃（in still air）	15 sec. max. （on an aluminum plate）	-20℃ to +105℃

Characteristics and connectors may be customized. （Please contact our sales representative.）
Insulation resistance 100MΩ, min. between terminal board and terminals （500V DC megohmmeter）
Withstanding voltage: No abnormalities observed between terminal board and terminal （1800V AC for 1 sec.）

Press here to return to the top of this page.

For high temperature sensing

Zero load resistance	B constant	Dissipation constant	Thermal time constant	Operating temp. range
R100 3.3kΩ	B0/100 3970K	4.2mW/℃（in water）	8.0 sec. max. （in stirred water）	-40℃ to +200℃

Every product introduced here will be available on a customization basis only.
Wind speed, flow volume of liquids and gases and humidity can be measured, taking advantage of self-heating characteristics of NTC thermistors.

Flow volume sensor

Senses wind speed and
flow volume and
converts them
into electrical
signal.

Absolute humidity sensor

Senses moisture volume in air （absolute humidity）. For microwave ovens and cloth dryers.

Water level sensor

Senses
water levels.
For dish
washers,
etc.

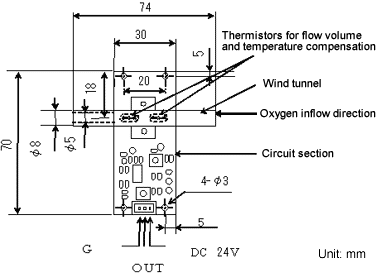

Flow volume sensor

Cooling efficiency of temperature of self-heated thermistors depends on wind speed （flow volume）. Therefore, thermistor temperatures vary depending on wind speed （flow volume）, causing resistance to accordingly change. This characteristic is used for conversion of wind speed （flow volume） into electrical signals.

Flow volume measurement range	Output voltage	Measurement accuracy	Operating temp. range
0 - 5.0 liter/min.	0.5V to 4.5V non-linear analog output	±5%	5℃ - 45℃

Press here to return to the top of this page.

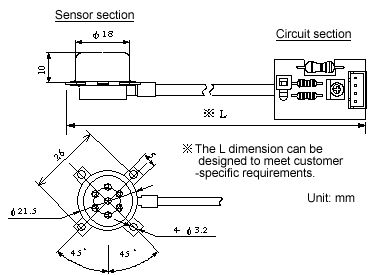

Absolute humidity sensor

Thermistors, made self-heated, will be cooled by humidity. The resulting temperature difference will be converted into electrical signals. Applications under high temperature and humidity are possible.

Humidity measurement range	Output characteristics （40℃, 35g/m³）	Response time （90% response）	Max. operating temperature
0～130 g/m³	5.5mV±1mV	40 sec. max.	200℃ （sensor section）

Press here to return to the top of this page.

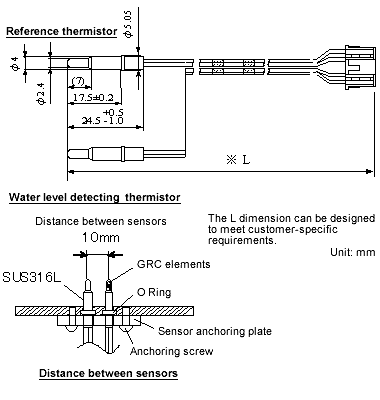

Water/liquid level sensors

Thermistors shall be made self-heated. Their temperature will vary depending on whether there is water. The presence of water will be determined using such characteristics （change in dissipation constant） of thermistors. The reference thermistors can be used for temperature compensation and temperature measurement of water level sensors.

	Zero load resistance	B constant	Dissipation constant	Operating temp. range
Reference value	20KΩ	3950K	About 2.3mW/℃ in air	0 to 80℃
For water level detection	2KΩ	3500K	About 5mW/℃ in water0 to 80℃	0 to 80℃

PTC/NTC热敏电阻/压敏电阻/热敏元件/热敏开关/热敏继电器/热保护器/温度继电器

热敏电阻原理分类及应用应变片选择指南

快速查找选型SEMITEC热敏电阻　

SHIBAURA芝蒲电子热敏电阻传感器快速选型　

石冢SEMITEC最新产品目录　

芝浦电子是热敏电阻详细资料下载　

HDK热敏电阻/压敏电阻　

三菱热敏电阻　

热敏电阻B值计算软件，计算B值用的　

测量NTC热敏电阻时，必须注意以下事项　

传感器系列负温度系数热敏电阻　

补偿用滴珠型负温度系数热敏电阻　

韩国大现SGS报告　

大现10KD-3J规格书　

NTC规格书 CWF10KD-B3950 　

NTC陶瓷材料在热敏传感器中应用　

韩国NTC 　

韩国大现小黑豆　

10K-B值3950RT特性图　

日本石冢全系列产品　

47KD-3J的R-T资料　

热敏电阻的用途　

　　

　　

　　

集成传感器详细资料一　集成传感器详细资料二　集成传感器详细资料三　集成传感器详细资料四

温度开关/热保护器/热敏开关热释电人体感应/菲涅尔透镜 PTC/NTC热敏电阻/压敏电阻代理日本石冢SEMITEC温度传感器/温度变送器湿敏电阻/湿敏电容湿度传感器/湿度变送器温湿度传感器/温湿度变送器消费电子传感器/家电传感器红外传感器/光电传感器自复保险丝/温度保险/保险管硅光电池/光敏电池/太阳能板集成传感器/智能传感器医用传感器/医疗传感器信号调理模块温湿度变送器温度控制器湿度控制器温湿度测量显示控制仪表红外测温仪/红外热像仪优秀国产热敏电阻

更多产品请看本公司产品专用网站:欢迎索取免费详细资料、设计指南和光盘；产品凡多，未能尽录，欢迎来电查询。

深圳赛格展销部：深圳华强北路赛格电子市场9583号电话：0755-83665529 13823648918

北京分公司：北京海淀区知春路132号中发电子大厦3097号 TEL：4006579498 18927445855 13823791822 FAX：010-62543996

上海分公司：上海市北京东路668号上海賽格电子市场地下一层D25号 TEL：4006571586 56703037 13823676822 FAX：021-56703037

西安分公司：西安高新开发区20所(中国电子科技集团导航技术研究所) 西安劳动南路88号电子商城二楼D23号

首页	公司简介	产品展台	开发生产	资料下载	技术支持	解决方案	展会消息
代理经销	集成电路	高频微波	消费电子	工控网络	安防报警	光纤光电	汽车电子
合作交流	留言本	友情连接	热卖产品	销售网络	招聘加盟	新品介绍	联系我们
