Measurement Specialties manufactures SchaevitzR AccuStar? electronic clinometers and AngleStar? electronic protractor systems which use capacitance-based sensors for the precise measurement of level, angle or tilt. These unique, patented designs feature a wide range of performance parameters, interface options and price alternatives. These rugged sensors can withstand high levels of shock and vibration that might destroy a MEMS-type device. They also have very high accuracy, especially around zero degrees, which makes them ideal for leveling applications. Uses include construction equipment, tipover protection, antenna positioning, vehicle testing and car alarms, aerospace and robotics.

	SchaevitzR Single Axis Clinometers: The SchaevitzR single axis tilt sensor line incorporates a fluid filled capacitance based technology to measure inclination up to +/-60degs. The sensors have no moving parts so making them extremely rugged and reliable.		SchaevitzR Dual Axis Clinometers: The SchaevitzR dual axis tilt sensors use fluid filled capacitance technology to measure +/- 20deg inclination in both the X and Y axis’. The simple sensing element provides a low cost dual axis tilt solution.
	SchaevitzR Electronic Protractors		Dual Axis Inclinometers:
	HL-Planar

傾斜感測器Inclination sensors

Inclination sensors determine the angular deviation from the horizontal plane. These precision sensors are used in many applications in a variety of markets such as automotive, construction, measurement industry and in the mechanical engineering. Therefore HL-Planartechnik GmbH provides three product lines, individually adapted and specified to the application.

	Application
	theft alarm for cars electronic parking brake for cars spirit levels mobile home leveling vehicle wheel alignment platform, antenna leveling laser leveling movement indicators
	Your Benefits
	highest quality for lowest cost high precision measurement excellent repeatability easy installation & handling long-term stability application in large temperature ranges complete calibration high reliability
	Key Features
	available as tilt sensor, sensor module and precision inclinometer one or two measurement axis analogue and digital output available different measurement ranges up to +/- 45° precision inclinometer has IP65 case available


類比傾斜感測器Tilt sensors
Order	Angle	Axis	Output	Datasheet
NS-25/B2	±25°	2	-

NS-25/C2	±25°	2	-

傾斜感測器Inclination sensors

	Application
	theft alarm for cars electronic parking brake for cars spirit levels mobile home leveling vehicle wheel alignment platform, antenna leveling laser leveling movement indicators
	Your Benefits
	highest quality for lowest cost high precision measurement excellent repeatability easy installation & handling long-term stability application in large temperature ranges complete calibration high reliability
	Key Features
	available as tilt sensor, sensor module and precision inclinometer one or two measurement axis analogue and digital output available different measurement ranges up to +/- 45° precision inclinometer has IP65 case available



感測器模組Sensor modules
Order	Angle	Axis	Output	Datasheet
NS-5/E	±5°	1	U *

NS-5/E2	±5°	2	U *

NS-10/E2	±10°	2	U *

NS-15/E	±15°	1	U *

NS-15/E2	±15°	2	U *

NS-25/E2	±25°	2	U *

NS-45/E2	±45°	2	U *

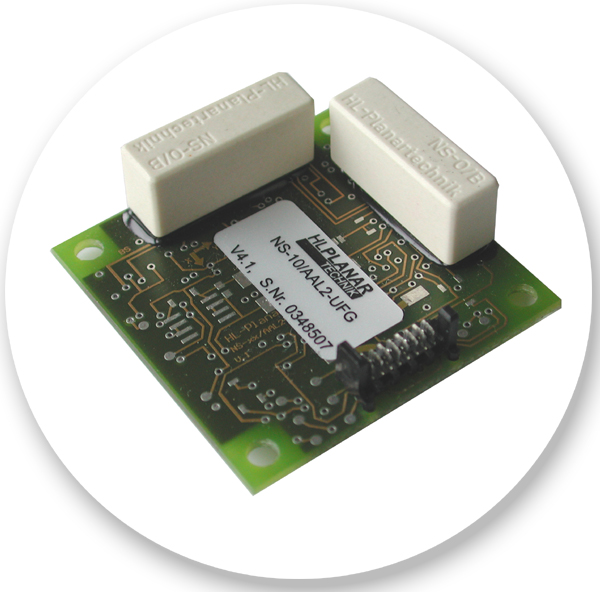

NS-10/PL2-S	±10°	2	D *

NS-10/PL2-M	±10°	2	V *

NS-15/PL2-S	±15°	2	D *

NS-15/PL2-M	±15°	2	V *

NS-2/AAL2-UCD	±2°	2	U *

NS-10/AAL2-UFG	±10°	2	U *

NS-25/DQL2-IXA	±25°	2	C *


(*) U: voltage output; I: current output; D: digital output RS232; V: digital output V24; C: digital output I²C

傾斜感測器Inclination sensors

	Application
	theft alarm for cars electronic parking brake for cars spirit levels mobile home leveling vehicle wheel alignment platform, antenna leveling laser leveling movement indicators
	Your Benefits
	highest quality for lowest cost high precision measurement excellent repeatability easy installation & handling long-term stability application in large temperature ranges complete calibration high reliability
	Key Features
	available as tilt sensor, sensor module and precision inclinometer one or two measurement axis analogue and digital output available different measurement ranges up to +/- 45° precision inclinometer has IP65 case available

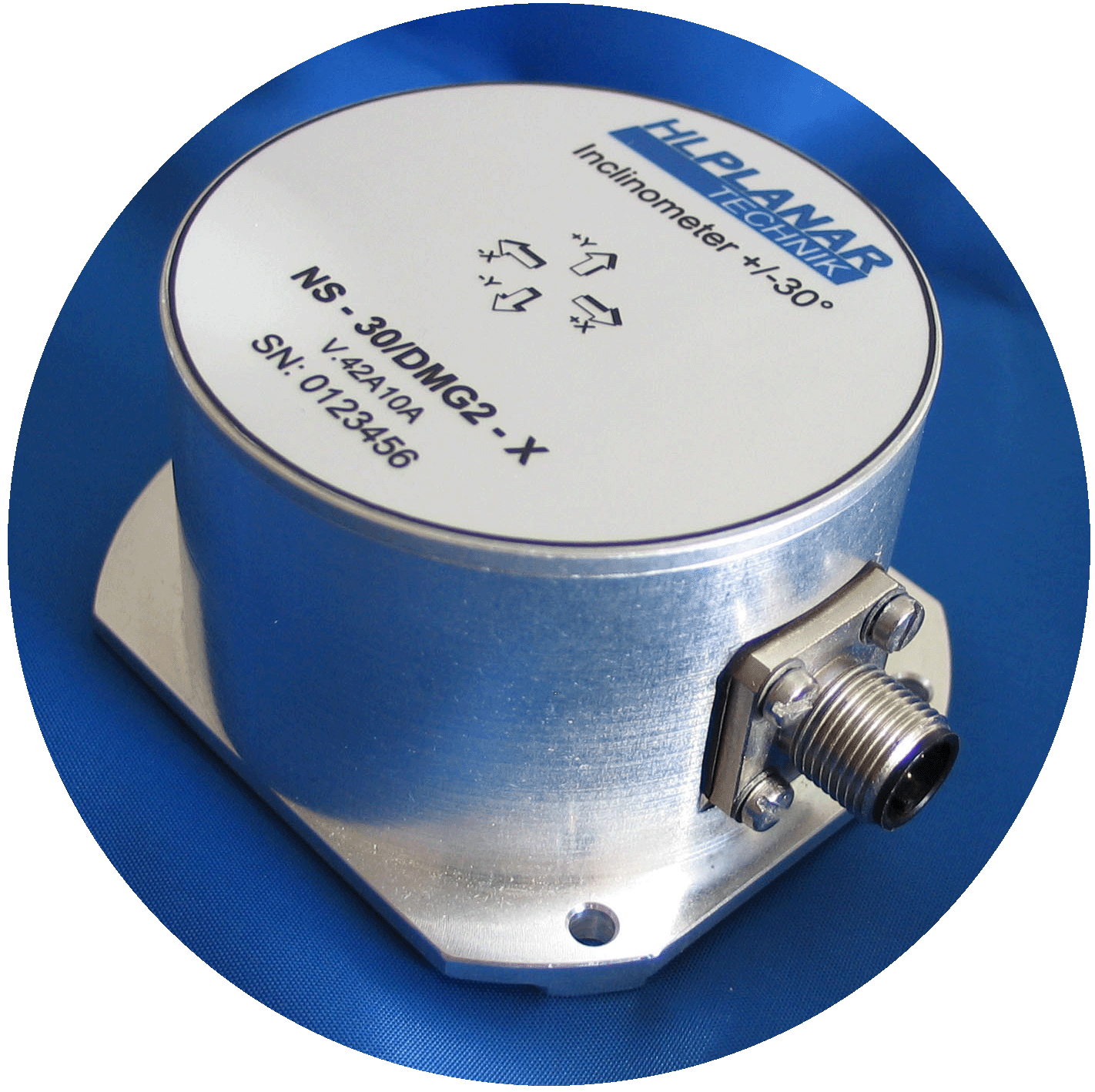

精密傾斜顯示器Precision inclinometers
Order	Angle	Axis	Output	Datasheet
NS-5/P	±5°	1	U, D *

NS-5/PI	±5°	1	I, D *

NS-5/P2	±5°	2	D *

NS-15/P	±15°	1	U, D *

NS-15/PI	±15°	1	I, D *

NS-15/P2	±15°	2	D *

NS-45/P	±45°	1	U, D *

NS-45/PI	±45°	1	I, D *

NS-45/P2	±45°	2	D *

NS-10/G	±10°	1	potential-free contact

NS-5/V	±5°	1	U *

NS-5/VI	±5°	1	I *

NS-5/V2	±5°	2	U *

NS-5/V2I	±5°	2	I *

NS-15/V	±15°	1	U *

NS-15/VI	±15°	1	I *

NS-15/V2	±15°	2	U *

NS-15/V2I	±15°	2	I *

NS-45/V	±45°	1	U *

NS-45/VI	±45°	1	I *

NS-45/V2	±45°	2	U *

NS-45/V2I	±45°	2	I *

(*) U: voltage output; I: current output; D: digital output RS232; V: digital output V24; C: digital output I²C

傾斜角度儀

Spectron Electronic Inclinometers are fully signal conditioned and calibrated Tilt Sensors.Available in both single and dual axis versions, various input and output configurations, and in packaged or 'open architecture' form, these versatile inclinometers provide a solution for virtually any application!

Glossary of Engineering Terms

單軸電子角度儀 - +/-20 to +/-60 degree range

Models

比例式 (unipolar DC input/output)
類比式 (bipolar DC input/output)
RS232 - 10 bit model (unregulated DC input, digital output, +/-0.5 degree accuracy)
RS232 - 12 bit model (unregulated DC input, digital output, +/-0.3 degree accuracy)
4-20mA model (DC input, current output, 0.02 degree repeatability)

Application Notes

RS232 Communication Protocol 10 bit　 12 bit

傾斜角度儀

雙軸電子角度儀

Models

SSY009XX Series Uni-polar and bi-polar inputs and outputs, +/-20 to +/-45 degree full range, ABS plastic housing option available

Models

MICRO-50 Unregulated DC input, RS232 output, +/-10, +/-45, and +/-60 degree standard ranges

Models

傾斜顯示器 NEMA IV enclosure, input/output options including PWM and 4-20ma, single and dual axis versions available. Consult factory.

傾斜角度儀

角度偵測 +/- 0.2 to +/- 40 degree range (sensor dependant)

　

Models

TAD II - Dual axis inclinometer that functions as an electronic switch.
- Unregulated DC input
- Open collector/switching outputs
- ABS plastic housing option available

Application Notes

Operating and Calibration Instructions

類比傾斜感測器

Electrolytic Tilt Sensors are non-signal conditioned sensing elements. Geared toward the OEM market place, and available in full scale ranges from +/-0.25 degrees to +/-80 degrees, these sensors are capable of satisfying even the most demanding applications. Three series are available, including single and dual axis versions (dual axis version PC board mountable), in both glass and ceramic construction.

Electrolytic Tilt Sensor Basics
Glossary of Engineering Terms
　

單軸傾斜感測器

Models

RG and CG Series 玻璃外殼傾斜感測器+/-0.25 to +/-12.0 degree full range, static and high vibration compatable, available pre-mounted in housing.

Available Housings

Model# 554
* Sensors also available installed into customer supplied housings. Consult factory for details!

Models

SH Series - Ceramic 陶瓷外殼傾斜+/-0.50 to +/-60.0 degree full range, high accuracy, sub-arc second resolution, compact size.

Available Housings

No housing required

Application Notes

SH50050 Series - Mounting, Electrical, Signal Conditioning, and Thermal Considerations
SH50050 Series - Settling Time and Cross Coupling Graphs

Models

L Series L系列傾斜感測器...Wide angular range (+/-45 to +/-80 degrees), high accuracy, dynamic output attenuation, available pre-mounted in housing.

Available Housings

Model# 556A - dual axis, horizontal mounting

Model# 556B - dual axis, horizontal mounting

Model# 557A - single axis, horizontal or vertical mounting

Model# 558 - single axis, horizontal or vertical mounting

* Sensors also available installed into customer supplied housings. Consult factory for details!

類比傾斜感測器

雙軸傾斜感測器

Models

SP5000 and AU6000 Series

* Also available in an OEM single axis version. Consult factory for details!

Application Notes

Specifications are subject to change without notice!

傾斜角訊號放大器

Signal conditioners are electronic modules which provide an AC excitation voltage, and a DC output signal for Electrolytic Tilt Sensors. Available in a wide variety of input and output configurations, these signal conditioners are the perfect compliment to our Electrolytic Tilt Sensors.

Temperature Compensation Resistor Selection Procedure, MUPI-3, SSY0079 and SA40012
Glossary of Engineering Terms
　

單軸訊號放大器

	MUPI-2 Bi-polar input/output Overload protection Remote sensor/display capable		MUPI-3 Bi-polar input/output Temperature compensation option Overload protection Remote sensor/display capable Calibration Procedure
	SA40012 Uni-polar input Low power consumption Temperature compensation option Overload protection		SA40072 Bi-polar input/output 4-20ma output Open architecture Technical Information
	SSY0079 Uni-polar input Bi-polar output Low power consumption Temperature compensation option Open architecture		SSY0135 Bi-polar input/output RS232 output Open architecture SSY0135 - RS232 (MICRO-50) - Signal Conditioner Operating Instructions

傾斜角訊號放大器

雙軸訊號放大器

　

Models

SA40011

Bi-polar input/output

Temperature compensation option

Overload protection

SA40015

Uni-polar input

Temperature compensation option

Overload protection

SA40111

Uni-polar input

RS232 output

On-board temperature and linearity compensation

Communication Software (5.06MB)
Note: Do not run software unless board is attached

磁電組感測器Magnetoresistive sensors

Magnetoresistive sensors are used to measure small changes in magnetic fields. HL-Planartechnik GmbH provides magnetoresistive products for several application fields, individually adapted and specified to the customer needs.

	Application
	angle and rotational speed measurement earth field detection position measurement and detection displacement measurement current measurement
	Your Benefits
	approved technology high precision measurement excellent repeatability standardized components long-term stability application notes for various designs complete calibration high reliability
	Key Features
	available as chip and SMD large operating temperature ranges analogue and digital output available reliable under extreme environmental conditions very high sensitivity inherent redundancy automatic assembly



角度感測器Angle sensors
Type	Bridge resistance	Offset voltage	Output voltage rage	Operating temperature range	Datasheet
KMT 31	3 ± 1,0 kO	< ± 2,0 mV/V	> 16 mV/V	-25...+125 °C

KMT 32B	3 ± 0,6 kO	< ± 1,0 mV/V	> 17 mV/V	-40...+150 °C

KMR 360	1 ± 0,2 kO	< ± 5,0 mV/V	> 15 mV/V	-40...+125 °C
