Inclinometer :N2_N3_N4, NA, NG2_NG3_NG4 , NG2I_NG3I_NG4I, NG2U_NG3U_NG4U,NG360 SB1I SB1S SB1U SB2I SB360
SBG2U SBG3I SBL1 SBL1S SBS1U SC485B XB NA4-70
Accelerometer:B1_B2_B3 BDK
Amplifier: NV4a NV6a NV8a
|
|
加速度.角度感應器
Static accelerometers
(lower working frequency: 0 Hz)
|
型
號 |
量測範圍 |
解析度 |
|
B1 / B2 / B3 |
±3g
/ ±10g
/ ±50g
|
<0.001g / <0.005g / <0.01g |
Remark: 1g =
90° =
9.81m/sec2, 1Gal = 1cm/sec2
Dynamic accelerometers
(lower working frequency: 1 or 10 Hz)
|
型
號 |
量測範圍 |
解析度 |
工作頻率 |
|
BD3 / BDK3 |
±
3 g |
< 10-3 g |
1 / 10 ...300 Hz |
|
BD10 / BDK10 |
±
10 g |
< 5*10-3 g |
1 / 10 ... 800 Hz |
|
BD100 / BDK100 |
±
100 g |
< 1*10-2 g |
1 / 10 ... 1.5 kHz |
Inclinometers
|
型
號 |
量測範圍 |
解析度 |
|
NA Series |
±5°
/ 10°
/ ±30°
/ ±45°
/ ±70° |
2.5V±2V（輸出信號） |
|
NB3 |
±10°
(±20°) |
<0.001° |
|
N2 / N3 / N4 |
±10°
/ ±30°
/ ±70° |
<0.002°
/ <0.005°
/ <0.01° |
|
NG2 / NG3 / NG4 |
±10°
/ ±30°
/ ±80° |
<0.001°
/ <0.003°
/ <0.01° |
|
NG2I / NG3I / NG4I |
內含4...20mA放大器之NG2
/ NG3 / NG4 type |
|
NG2U / NG3U / NG4U |
內含0...5V放大器之NG2
/ NG3 / NG4 type |
|
NG360 |
360° |
0.01° |
Signalconditioners
(suited to all SEIKA-senors)
|
型
號 |
輸出信號 |
|
NV4a |
±4
Vdc |
|
NV6a |
4 to 20mA |
|
NV8a |
0 to 5 Vdc |
Sensorboxes
|
型
號 |
輸出信號 |
|
SB1I |
內含一加速度或角度之Sensor
box ( 98 x 64 x 36mm)，輸出信號為
4...20mA。 |
|
SB2I |
內含二組
Type B, BD, BDK, N,
或
NB
感應器及放大器之Sensor
box ( 98 x 64 x 36mm)，輸出信號為
4...20mA，且彼此之間相互隔離。 |
|
SB1U |
內含一加速度或角度之Sensor
box ( 98 x 64 x 36mm)，輸出信號為
0...5Vdc
。 |
|
SB1S |
內含一加速度或角度之Sensor
box ( 98 x 64 x 36mm)，輸出信號為
0...5Vdc
，另外有二組
Open Collector
輸出之
Hi-Lo
設定。 |
|
SBS1U |
內含一只高感度之伺服式角度感應器（±1°）及放大器的Sensor
box ( 98 x 64 x 36mm)，輸出信號為
0...5Vdc。 |
|
SB2G |
內含二只
Type NG角度感應器之Sensor
box ( 123 x 78 x 58mm)，輸出信號為
0...5Vdc。 |
|
SBL1 |
內含一加速度或角度之Sensor
box ( 178 x 170 x 100mm - quit big and robust
box) ，輸出信號為
4...20mA。 |
|
SBL1S |
內含二只感應器之Sensor
box (178 x 178 x 100mm - quit big and robust)，除了有二組放大器（4...20mA
和0...5Vdc
輸出各一）之外，還有二只Safety-relay可以設定。 |
|
XB... |
SB外殼的另一替代品，堅固、可承受高壓、防水及防腐蝕。 |
|
SC485B |
RS232 / RS485
介面轉換器 |
|
SW3 |
多軸角度感應器和加速度感應器組裝用之立方體外殼。 |
|
B1, B2, B3
NB3 |
[+] |
|
BDK3, BDK10, BDK100 |
 |
|
N2, N3, N4 |
[+] |
|
NA2-05, NA2-10,
NA3-30, NA4-45, NA4-70 |
[+] |
|
NG2, NG3, NG4
NGI2, NGI3, NGI4
NGU2, NGU3, NGU4
NG360 |
[+] |
|
SB1I |
[+] |
|
SB2I |
[+] |
|
SB1U |
[+] |
|
SB1S |
[+] |
|
SBS1U |
[+] |
|
SB360 |
[+] |
|
SBG2U |
[+] |
|
SBG3I |
[+] |
|
SBL1 |
[+] |
|
SBL1S |
[+] |
|
XB.. |
[+] |
|
SC485B |
[+] |
|
NV4a |
 |
|
NV6a |
 |
|
NV8a |
|
|
SW3 |
 |
|
SBB... |
[+] |
|

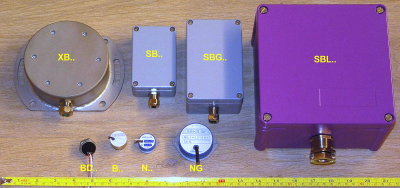

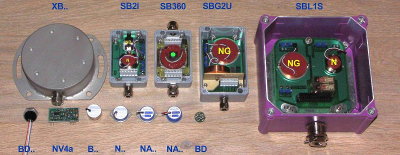

Comparison
dimensions: |
[+]
 |
|
[+]
 |
Static Accelerometers
(lower cut-off frequency = 0 Hz)
|
Model
|
Measuring range |
Resolution |
|
B1, B2, B3 |
±3g,
±10g, ±50g
( 1g = 9.81ms-2 ) |
<0.001g, <0.005g, <0.01g |
Dynamic Accelerometers
(lower cut-off frequency = 1 or 10 Hz)
|
Model |
Measuring range |
Resolution |
Frequenzy range |
|
BDK3 |
± 3 g |
< 10-3
g |
1...300 Hz |
|
BDK10 |
± 10
g |
<
5*10-3 g |
1...
800 Hz |
|
BDK100 |
± 100
g |
<
1*10-2 g |
1...
1.5 kHz |
Inclinometers
|
Model |
Measuring range |
Resolution |
|
NB3 |
±10°
(±20°) |
<0.001° |
|
NA2-05, NA2-10
NA3-30
NA4-45, NA4-70 |
±5°,
±10°
±30°
±45°, ±70° |
<0.001Grad, <0.002Grad
<0.005Grad
<0.01Grad, <0.01Grad |
|
N2, N3, N4 |
±10°,
±30°, ±70° |
<0.001°, <0.005°, <0.005° |
|
NG2, NG3, NG4 |
±10°,
±30°, ±80° |
<0.001°, <0.005°, <0.005° |
|
NG...I |
Inclinometer type NG2, NG3,
NG4 with integrated 4...20mA signal conditioner |
|
NG...U |
Inclinometer type NG2, NG3,
NG4 with integrated 0...5V signal conditioner |
|
NG360 |
Inclinometer with 360°
measuring range and integrated microprocessor and RS485 interface |

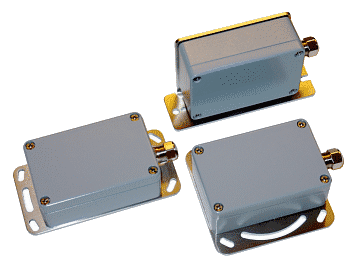

Sensor boxes
(for harsh operating conditions)
|
Model |
Features |
|

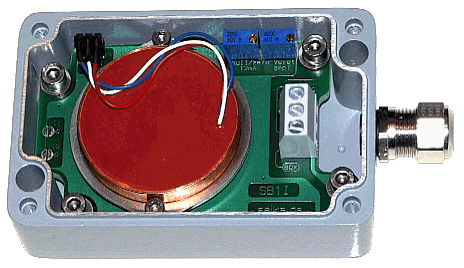

SB1I |
Sensor
box (98 x 64 x 56mm3) with one integrated SEIKA sensor of any type and
one integrated signal conditioner with 4...20mA output. |
|
SB2I |
Sensor
box (98 x 64 x 56mm3) with two integrated SEIKA sensors of type B, BD,
BDK, N or NB and two integrated signal conditioners with a 4...20mA
output each. Both channels are electrically isolated from each other. |
|

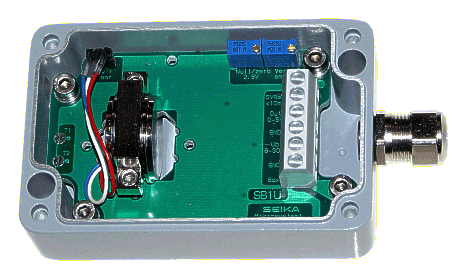

SB1U |
Sensor
box (98 x 64 x 56mm3) with one integrated SEIKA sensor of any type and
one integrated signal conditioner with 0...5V output. |
|
SB1S |
Sensor
box (98 x 64 x 56mm3) with one integrated SEIKA sensor of any type, one
integrated signal conditioner with 0...5V output and two open collector
switch outputs that respond to traversing of adjustable thresholds. |
|
SBS1U |
Sensor
box (98 x 64 x 56mm3) with one integrated SEIKA-Servo-Inclinometer for
measuring small angles of up to 2 degrees with very high resolution and
an integrated signal conditioner with 0...5V output. |
|
SB360 |
Sensor
box (98 x 64 x 56mm3) with one integrated SEIKA sensor of type NG360,
internal microprocessor and RS485 interface. |
|

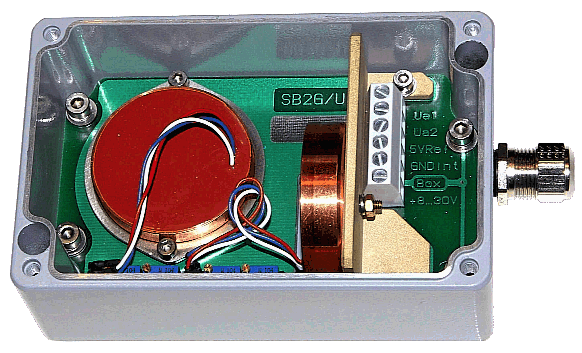

SBG2U |
Sensor
box (124 x 80 x 58mm3) with two integrated SEIKA sensors of type NG and
two 0...5V outputs. |
|

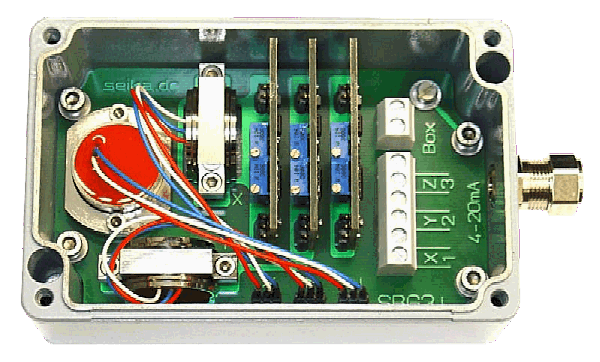

SBG3I |
Sensor
box (124 x 80 x 58mm3) with three integrated SEIKA sensors and three
integrated signal conditioners with 4...20mA output. |
|
SBL1 |
Sensor
box (180 x 180 x 100mm3 - large and robust) with one integrated SEIKA
sensor of any type and one integrated signal conditioner with 4...20mA
output. |
|
SBL1S |
Sensor
box (180 x 180 x 100mm3 - large and robust) with two integrated SEIKA
sensors of any type, one integrated signal conditioner with 4...20mA
output, one integrated signal conditioner with 0...5V output and two
safety relays that respond to traversing of adjustable thresholds. The
SBL1S has two redundant, electrically isolated measuring channels for
safety related applications. |
|
XB.. |
Extra
robust, pressure-, saltwater- and corrosion-proof stainless steel sensor
box (ø120 x 50) as an alternative to the SB.. housings (180 x 180 x
100mm3) for especially harsh operating conditions, aggressive fluids and
saltwater. |
|
SC485B |
Box
(63.5 x 58 x 35mm3) with RS485/RS232 converter for operation of
inclinometers NG360, SB360, and XB360 from a RS232 port. |
Sensor accessories
|
Model |
Features |
|
NV4a |

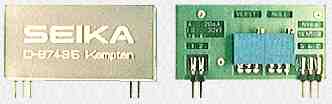

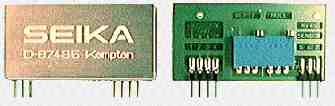

Filtering signal conditioner
for sensor signal matching with symmetrical +/- 4 V voltage output |
|
NV6a |
Filtering signal conditioner
for sensor signal matching to a 4...20mA, 2-wire interface |
|
NV8a |
Filtering signal conditioner
for sensor signal matching with an asymmetric 0...5V output voltage |
|
SW3 |
Sensor
cube for multiaxial arrangement of SEIKA accelerometers and/or SEIKA
inclinometers |
|
SBBS, SBBB, SBBW |
Fixing plates from stainless steel for sensor
boxes SB.. |
Special sensors and
electronics
Next to these standard products, we manufacture
level and humidity sensors for special applications as well as electronic
components and sensor accessories.

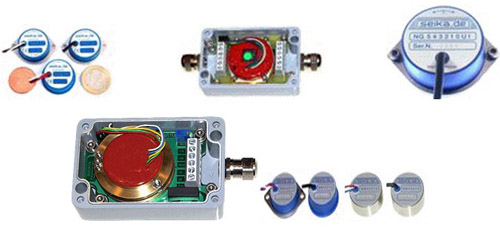

德国SEIKA
德国SEIKA公司是一家专业设计制造高精度传感器、加速计、倾角仪等高科技
高性能产品的公司。SEIKA产品输出线性度高，精度高，稳定性好，信号无迟滞，电路和传感器件集成度高，低功耗，体积小，重量轻，抗电磁干扰，精密密封，
使用夹圈就在整个360度内调整零点。
主要型号：
加速度计：B1、B2、B3、BD3、BDK3、BD10、ND10...
倾角计：N2、N3、SNB3、NA2-05、NA4-70、NG360...
探测器等：SB2I、SB1U、SB360、SBL1S、XBS1U、SC485B、SW3、SNNS...
|
|
SBG2U- 0～5vDC，双NG传感器和双信号调节器 |
| |
|
|
SBG2U |
|
|
适用传感器： |
* 电源供应： |
9-30v |
|
|
NG |
* 操作电流： |
12mA |
|
|
NGI |
* 参考电压： |
5vDC ±0.005v |
 |
|
NGU |
* 低通过滤器： |
激活，第三顺序 |
|
NG360 |
|
大范围的温度偏移补偿 |
 |
| |
|
可调 |
| |
SBG31-
4～20mA，双线输出，三传感器和三信号调节器 |
| |
|
|
SBG3I |
|
|
适用传感器： |
* 电源供应： |
9-30v |
|
|
NG |
* 操作电流： |
12mA |
|
|
NGI |
* 参考电压： |
5vDC ±0.005v |
|
|
NGU |
* 低通过滤器： |
激活，第三顺序 |
|
NG360 |
|
大范围的温度偏移补偿 |
|
| |
|
可调 |
| |
SBL1- 4～20mA，严酷环境中的单传感器和单信号调节器 |
| |
|
|
SBL1 |
|
|
适用传感器： |
* 固定方向： |
任意 |
|
|
N |
* 测量平面（N传感器）： |
全部三个面 |
|
|
NA |
* 测量平面（NG传感器）： |
与固定底面平行 |
|
|
NB |
|
角位置可以机械调整 |
|
NGI |
|
PCB防震 |
|
|
NGU |
|
|
| |
SBL1S- 4～20mA和0～5vDC，双传感器、双信号调节器和双中继 |
| |
|
|
SBL1S |
|
|
适用传感器： |
* 固定方向： |
任意 |
|
|
N |
* 测量平面）： |
全部三个面 |
|
|
NA |
* 测量平面： |
与固定底面平行 |
|
|
NB |
|
|
|
NGI |
|
频道1是4～20mA |
|
|
NGU |
|
频道2是0～5v带双独立可调安全中继输出 |
| |
|
|
XB |
|
|
适用传感器： |
|
|
|
|
所有Seika传感器 |
可以接受的电路板包括： |
| |
SB11，SB21，SB1S，SB1U，SB360，SB51 |
|
| |
|
|
| |
|
|
SC485B |
|
|
适用传感器： |
* 电压供应： |
12v |
|
|
所有Seika传感器 |
* RS232端口： |
D-Sub9针接口 |
| |
* RS485总线： |
半双工 |
|
| |
|
坚固，防盐水和腐蚀外壳 |
|
|
 |
|
