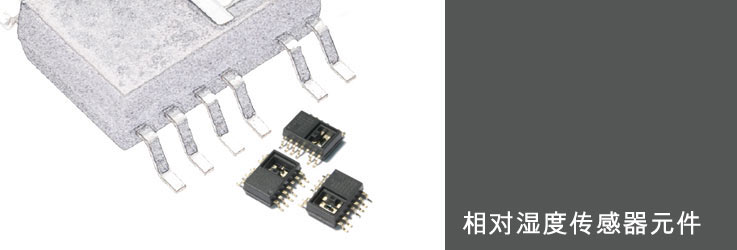

相对湿度传感器
相对湿度传感器概述
我们提供可靠的绝对湿度计具有满足个人需求和预算的综合功能。此外，氧化铝水分探头具有优越的灵敏度、响应速度和校准稳定性。水分发生器专门用于载气流中生成准确、可重复水平的水汽压。
相对湿度传感器
-
ChipCap 2TM
ChipCap 2 offers
the most
advanced and
cost effective
humidity and
temperature
sensing solution
for virtually
any type of
application.
-
EMD
EMD
电阻式相对湿度传感器特别适合湿度测量应用，对精度要求高，无需校准。
-
ChipCap
ChipCap系列在三个输出选项完全整合包提供相对湿度与温度传感。
-
T9600
The T9600 series
humidity sensor
by GE offers a
new standard in
the field of
accurate
relative
humidity
measurement.
|
|
|

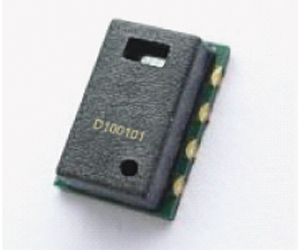

ChipCap2 a Fully
Calibrated Humidity and Temperature
Sensor
ChipCap 2 offers the
most advanced and cost effective
humidity and temperature sensing
solution for virtually any type of
application. A capacitive polymer sensor
chip and a CMOS integrated circuit with
EEPROM are integrated into one embedded
system in a reflow solderable SMD
package.

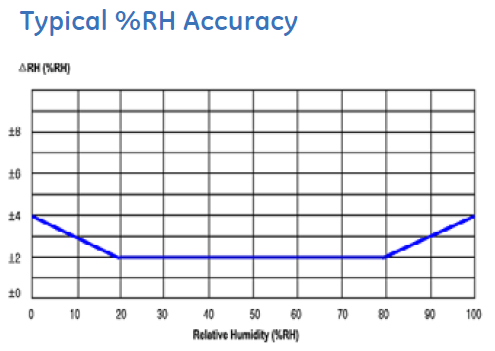

Individually
calibrated and tested, ChipCap 2
performs at ±2% from 20% to 80% RH (±3%
over entire humidity range), and is
simple and ready to use without further
calibration or temperature compensation.
ChipCap 2 provides
linear output signals in various
interfaces to customer requirements:
- I²C interface
- PDM convertible
to analog signal
- Alarm function
for preset control at min/max
humidity
- Fully
Calibrated & Temperature
Compensated
- Digital
or Analog Output with Alarm
Function
- Precision
& Accuracy (±2%RH, ±0.3°C,
14 bit )

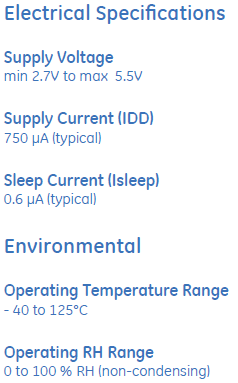

- Free
Operating Voltage (min 2.7V
to max 5.5V)
- Low
Current Consumption
- SMD
Package for Automated
Assembly
- Reliable
in Harsh Environments
- Energy
Saving HVAC Control —Air
Conditioning, Refrigeration,
Indoor Air Quality, Vent
Fans, Home Appliances, Humi/Dehumidifiers
- Process
Control &
Instrumentation—Medical
Instruments, Handheld
Devices, Weather Stations,
Food Processing, Printers,
RFIDs
-
Automobile &
Transportation—Cabin Climate
Control, Defogging Control
Condensing Preventive Device
- Medical —
Nebulizers, Oxygen air, CPAP/Sleep
Apnea devices
- OEM
assemblies available
Relative
Humidity RH(%)
|
Resolution |
14 bit
(0.01%RH) |
|
Accuracy1 |
±2.0 %RH
(20~80%RH) 2
|
|
Repeatability |
±0.2 %RH |
|
Hysteresis |
±2.0 %RH |
|
Linearity |
<2.0 %RH |
|
Response
time3 |
7.0 sec
(τ 63%) |
|
Temp
Coefficient |
Max 0.13
%RH/°C (at 10~60°C,
10~90%RH) |
|
Operating
Range |
0 ~ 100
%RH (Non-Condensing) |
|
Long Term
Drift |
<0.5
%RH/yr (Normal
condition) |
1. Custom
Accuracy Tolerance Available
2. Accuracies
measured at 25°C, 5.0V
3. Measured at
25°C, 1m/sec airflow for
achieving 63% of step from 33%RH
to 90%RH

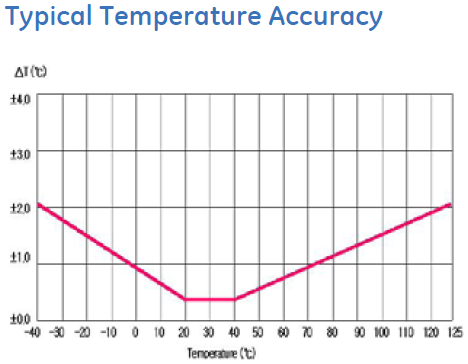

Temperature
(°C)
|
Resolution |
14 bit
(0.01°C) |
|
Accuracy1 |
±0.3°C |
|
Repeatability |
±0.1°C |
|
Response
time2 |
5.0 sec
(τ 63%) |
|
Operating
range |
- 40 to
125°C |
|
Long term
drift |
<0.05°C/yr (Normal
condition) |
1. Accuracies
measured at 25°C, 5.0V
2. Min 5.0
sec, Max 20 sec
|
说明 |
English |
|
ChipCap 2 Application
sheet |
|
|
ChipCap 2 Datasheet |
|

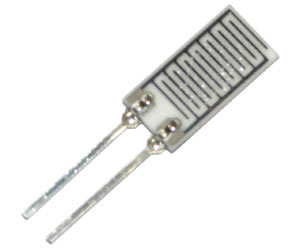

EMD
首先，EMD-2000传感器因严格的准确度和很强的耐化学性而出名。EMD-2000，不但提供高精度，而且改善滞后现象和轻巧型的尺寸。两个传感器都是块状聚合物相对湿度传感器，其电阻随着相对湿度的变化而变化。现在，EMD-4000能够承受存在有机物蒸气的环境。从冷凝环境恢复过来，可在温度达185°F
(85°C)的情况下使用
EMD
相对湿度传感器特别适合湿度测量应用，对精度要求很高，无需校准。EMD-2000传感器含有一个过滤盖，用于搬运时保护传感器，使污染物不影响其性能。
EMD-4000能够现场测量有机液体（如变压器油、汽油、甲苯、丙酮以及其他改变氢键强度的化合物）的水溶性。EMD-4000具有良好的可重复性和可交换性。
- <
± 1% 磁滞
-
良好的长期稳定性（< 1% RH/年）
- ±
1, 2, 3, 5% RH可提供的精度
-
优良的耐化学性
-
轻巧型包装
|
77°F
(25°C)时%RH范围 |
20% ~ 95% |
|
工作温度 |
41°F ~ 140°F
(5°C ~ 60°C) |
|
储存 |
0% ~ 95% RH,
-40°F ~ 185°F
(-40°C ~ 85°C) |
|
精度 |
•
±5% RH（标准）
• ±3% RH（可用） |
|
重复性 |
±0.5% RH |
|
阻抗 |
77°F (25°C)时72K
S，50% RH 具有 1
VAC 、1 KHz
激励 |
|
响应时间 |
在非流动的空气中不到1
分钟（63%的阶跃变化） |
|
磁滞 |
77°F (25°C)时，
<1% RH（阶跃变化30% ~
98%）
RH 随后又回到30% RH |
|
长期漂移 |
0.1% RH/年（通常在洁净、不含化学物质的空气中） |
|
尺寸 |
0.2 in (5.1 mm)
宽 x 0.4 in (10.2
mm) 高 x 0.02 in
(0.51 mm) 厚
引线：0.4 in (10.2
mm) 长 x 0.15 in
(3.81 mm) 宽 x
0.01 in (0.25
mm) 厚（在 0.1 in
(2.54 mm) 中心上） |
|
暴露在饱和化学蒸汽中 |
•
甲苯, 25,200 ppm/3天：<2%
RH 漂移
• 己烷,152,000 ppm/3
天：漂移<2% RH
• 甲醇,127,000 ppm/3
天：漂移<5% RH |
|
变压器油；60K S（30
ppm, 77°F
(25°C)） |
•
3 个月(77°F
(25°C)):漂移<5%，通常2%
RH
• 1 个月(185°F
(85°C))：漂移<5%，通常2%
RH |
|
水蒸气饱和度 |
100% RH/77°F
(25°C)/存储1000小时；通常漂移<3%
RH；1/16 in (1.59
mm)
的小水滴覆盖在整个传感器的表面达10分钟，然后通过空气通风进行干燥 |
|
注意 |
--直流电源对EMD-4000湿度传感器不适用。直流电源的应用会使传感器极化，导致不可逆的转变。
只能采用对称的交流励磁电流。GE推荐采用低电平交流励磁（通常为1
VAC, 1
KHz)，以使自热效应达到最小化。 |
|
说明 |
English |
Deutsch |
Português |
|
EMD-4000
Humidity Sensor |
|
|
|
|
EMD-4000 Sensor
de Umidade |
|
|
|
|

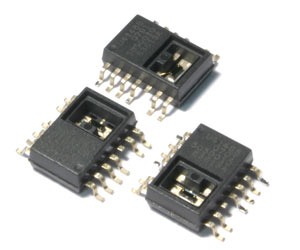

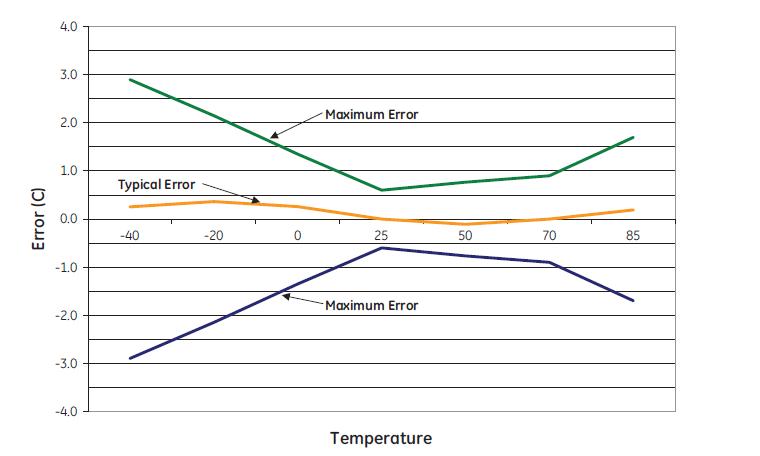

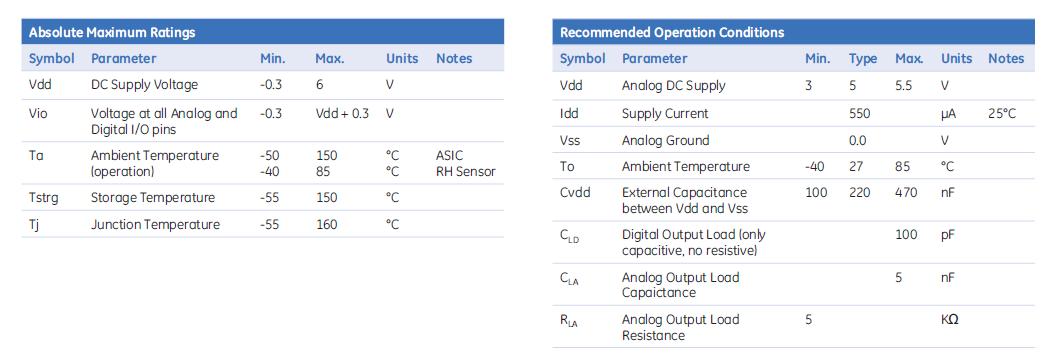

ChipCap温度与湿度传感器
ChipCap系列湿度传感器在准确测量相对湿度领域提供了一个新的标准。基于电容式高分子传感技术，此设备为单个系统芯片(SoC)解决方案提供信号调理和温度补偿。此设备使用简单，其精度在交付前经全面测试与校准—无需再校准。
ChipCap可归为组件或传感器成品，符合客户规格要求。20%到80%RH时，测量精度为±
2%，在整个湿度范围内，测量精度为± 3%。具有良好的长期稳定性。0°C 到
+70°C时，温控精度为 ± 1°C。双组输出与0V 到 1V或0.5V 到
4.5V比率计一样提供湿度和温度或采用数字输出(ZACwire单线接口)。

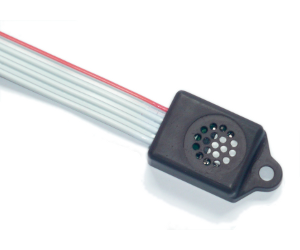

T9600 Temperature and
Humidity Sensors
The T9600 series
humidity sensor by GE offers a new
standard in the field of accurate
relative humidity measurement. Based on
a capacitive polymer sensing technology,
this device offers signal conditioning
and temperature compensation for a
single SoC (Systemon-Chip) solution. The
device is very simple to use, fully
tested and calibrated for accuracy on
delivery—no further calibration is
needed.
-
Ready to install
package
-
Simultaneous
relative humidity
and temperature
outputs
-
Precision accuracy
±2% RH, ±0.6°C
-
Resolution 0.4% RH
-
Factory calibrated,
ready to use
-
Supply voltage: 3.0V
to 5.5V
-
Low current:
0.5mA@5V, 25°C
-
Conformal coated PCB
for corrosion
protection
-
Included filter to
protect humidity
element
-
RoHS CE compliant
-
HVAC – Heat
Exchangers
-
De humidifies
-
Residential
Ventilation /
Commercial
Ventilation
-
Heating and/or
cooling coils
(Leaving or Entering
Air Temperatures and
RH Levels)
-
100% OA Make-Up Air
Units
-
Environmental Test
Chambers
-
Clean Room Remote
Monitoring
-
Humidification
Systems
-
Locker Room/Shower
Room Exhaust Fan
Speed Control
Systems
-
Manufacturing/Process
Control Exhaust Fan
Controls and/or
Humidity Controls
Relative Humidity
|
RH Sensor |
Planar
Capacitive
Polymer |
|
RH Range |
0
to 100% RH |
|
RH Accuracy @
25°C |
±2% from 20% to
80%
±3% from 0% to
20% and 80% to
100% |
|
RH Resolution |
0.4% RH |
Temperature
|
Temperature
Sensor |
Integral band
gap PTAT |
|
Operating
Temperature |
-20°C to 80°C |
|
Storage
Temperature |
-40°C to 80°C |
|
Temperature
Accuracy |
±0.6°C at 25°C |
|
Temperature
Resolution |
0.2°C |
Power
Supply
|
Voltage Supply |
3
to 5.5 VDC |
|
Current
Consumption |
500 microamps @
5 VDC, 25°C |
|
Reverse Polarity
Protection |
12.5 VDC,
continuos with
100muA current
15 VDC, 60
seconds |
Outputs
|
RH Voltage
Output (Linear,
0-1V) |
Vout = 0.01(RH) |
|
Temperature
Voltage Output |
Vout = (0.005T
°C) +0.25 |
|
RH Digital
Output |
Manchester 8-bit
encoded |
|
Temperature
Digital Output |
Manchester
10-bit encoded |
|
Warranty |
1
year |
Environmental
|
Operating
Temperature
Range |
-20°C to 85°C |
|
Operating RH
Range |
0
to 100 % RH,
non-condensing |
Packaging
|
Packaging ESD |
Handle according
to IPC-A-610C
Standard |
|
Flammability
Rating |
UL 94V-0 for
enclosure and
connector
material
UL 1581 VW-1 for
cable |
|
Pin Connection |
1
+V, 2 GND, 3
OUT-RH |
|
说明 |
English |
|
T9600—The Fully
Calibrated
Humidity and
Temperature
Sensor |
|
|

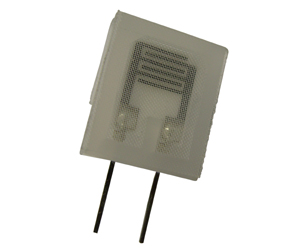

HS30P Thermometrics
Relative Humidity Sensors
Polymer based
resistive %RH sensors. When excited with
low AC voltage, the HS30P relative
humidity sensor provides inverse
exponential resistance change with
humidity.
-
Good, long-term
reliability
-
Cost-effective
performance
-
Equipped with
micro-heater for
faster recovery from
condensation
-
Humidity Monitors
-
Humidity Controllers
-
Air Conditioners
-
Humidifiers
-
Dehumidifiers
-
Automatic
Ventilation
|
说明 |
English |
|
HS30P
Thermometrics
Relative
Humidity Sensor |
|
|
|
 |
|
